PRO LEVER LINKING

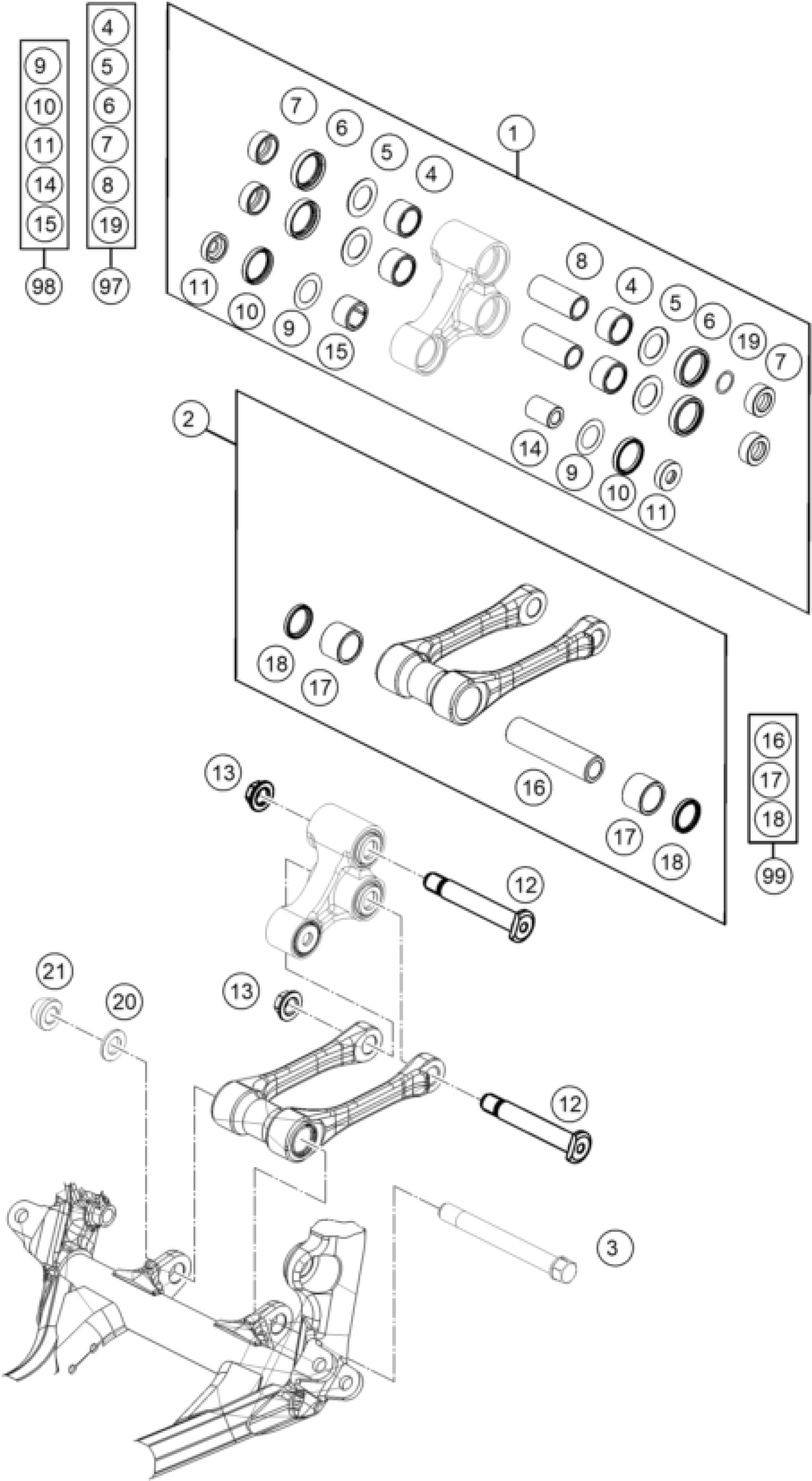

KTM 250 XC 2015 PRO LEVER LINKING Diagram
#
Description
Price
1
TRIANGLE LEVER CPL. SX 2014
7770408004401
$164.46
2
PULL ROD CPL. SX 15
7770408304401
$176.52
3
BOLT TIE-ROD BEARING M14
77404084000
$53.85
4
Needle bushing HK 2016 / 20x26
54603097000
$15.04
5
Shim 20x31.9x1
59033080000
$2.05
6
radial shaft seal 25x32x7
0760253270
$6.63
7
Bucket f. shaft seal ring 25X1
77204080130
$10.93
8
Bushing sleeve 15x20x48
54603081000
$24.77
9
Shim 29.75x19x0.4
50180604
$2.05
10
Radial shaft seal 24X30X5
0760243050
$5.23
11
Bucket f. shaft seal ring 24x6
77204080020
$9.90
12
Bolt triangle lever arm M14x1.
77204085000
$48.99
13
hex nut M14x1.5 WS17
77204087000
$2.05
14
Bearing sleeve 10x18x25.5
77204080010
$8.41
15
NEEDLE BUSH HN1816 RS 18/24/16
0618182416
$12.89
16
BEARING SLEEVE
77204084010
$22.15
17
NEEDLE BEARING HK2220 22X28X20
0618222820
$11.30
18
Radial shaft seal G22x28x4
0760222841
$4.11
19
Steel washer 15.2x19x0.1
54603090010
Unavailable
19
STEEL WASHER 15,2X19X0,2
54603090020
Unavailable
19
STEEL WASHER 15,2X19X0,3
54603090030
Unavailable
20
WASHER TIE-ROD BEARING M14
77404084010
$6.82
21
NUT TIE-ROD BEARING
77404084020
$19.35
97
TRIANGLE LEVER REP. KIT REAR
77204080110
Unavailable
98
TRIANGLE LEVER REP. KIT FRONT
77204080090
Unavailable
99
PULL ROD REP. KIT SX/SX-F
77204083010
Unavailable
