Description

Price

1

START NUMBER PLATE WHITE SX 13

7770800704428

$26.64

3

BRAKE HOSE GUIDE BLACK 13

7770802200030

$3.08

4

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

5

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

6

HH collar screw M6x16 TX30

0025060166

$3.08

7

FRONT FENDER ORANGE 13

7770801000004

$30.94

11

HH collar screw M6x16 TX30

0025060166

$3.08

14

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

22

COLLAR NUT M12X1/WS17 H=5MM

50314057050

$6.63

23

BUSHING FOR SEAT FASTENING 03

54807048000

$10.65

20

REARPART ORANGE SX 11

7720801300004

$63.90

24

HH collar screw M6x25 TX30

0025060256

$3.08

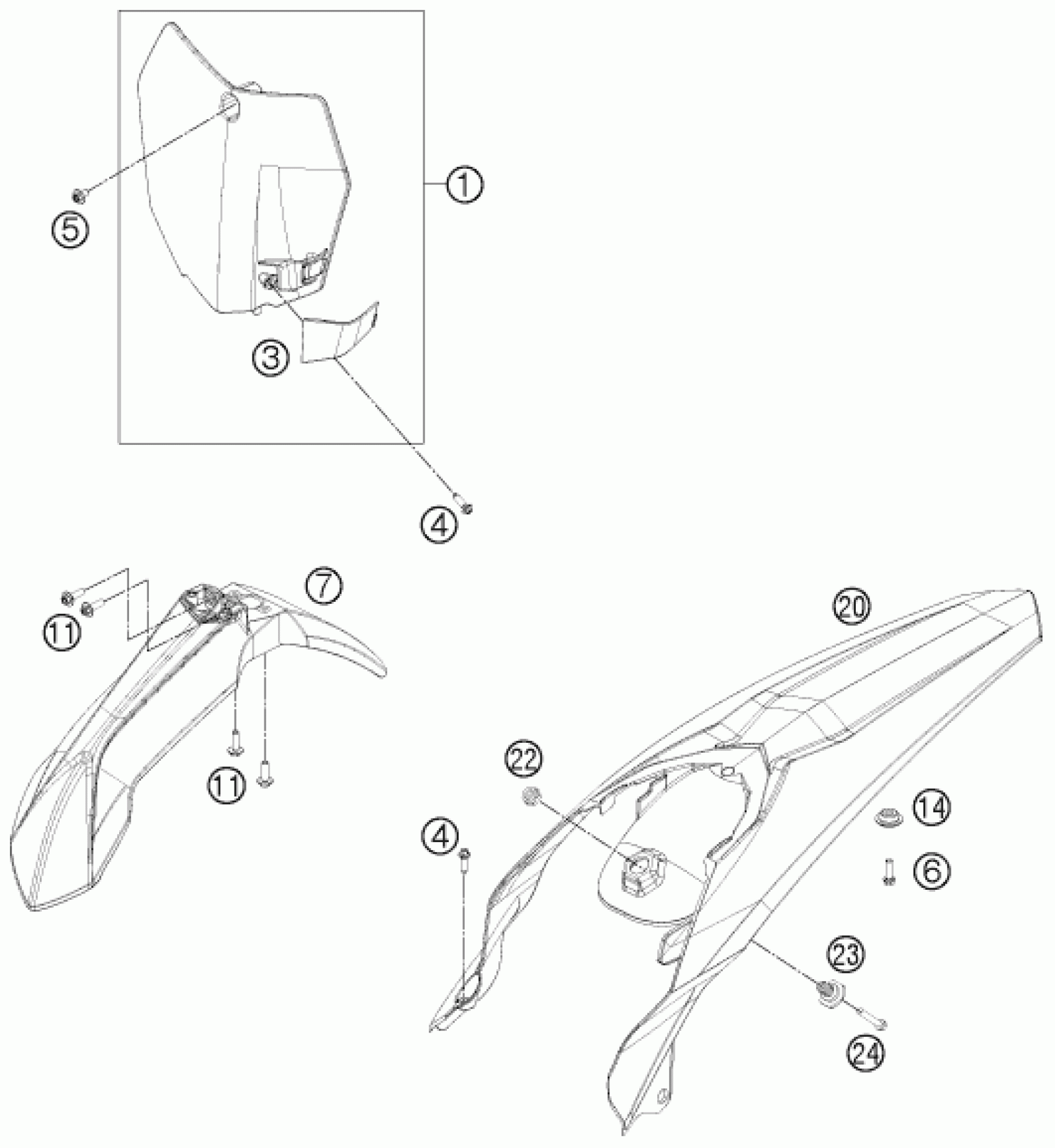

KTM 250 XC 2015 MASK, FENDERS Diagram

START NUMBER PLATE WHITE SX 13

BRAKE HOSE GUIDE BLACK 13

SCREW F. PLASTIC K60X20AL SW6

HH COLLAR SCREW M6X10 TX30

HH collar screw M6x16 TX30

FRONT FENDER ORANGE 13

HH collar screw M6x16 TX30

COLLAR BUSH. F.REAR FENDER 07

COLLAR NUT M12X1/WS17 H=5MM

BUSHING FOR SEAT FASTENING 03

REARPART ORANGE SX 11

HH collar screw M6x25 TX30
