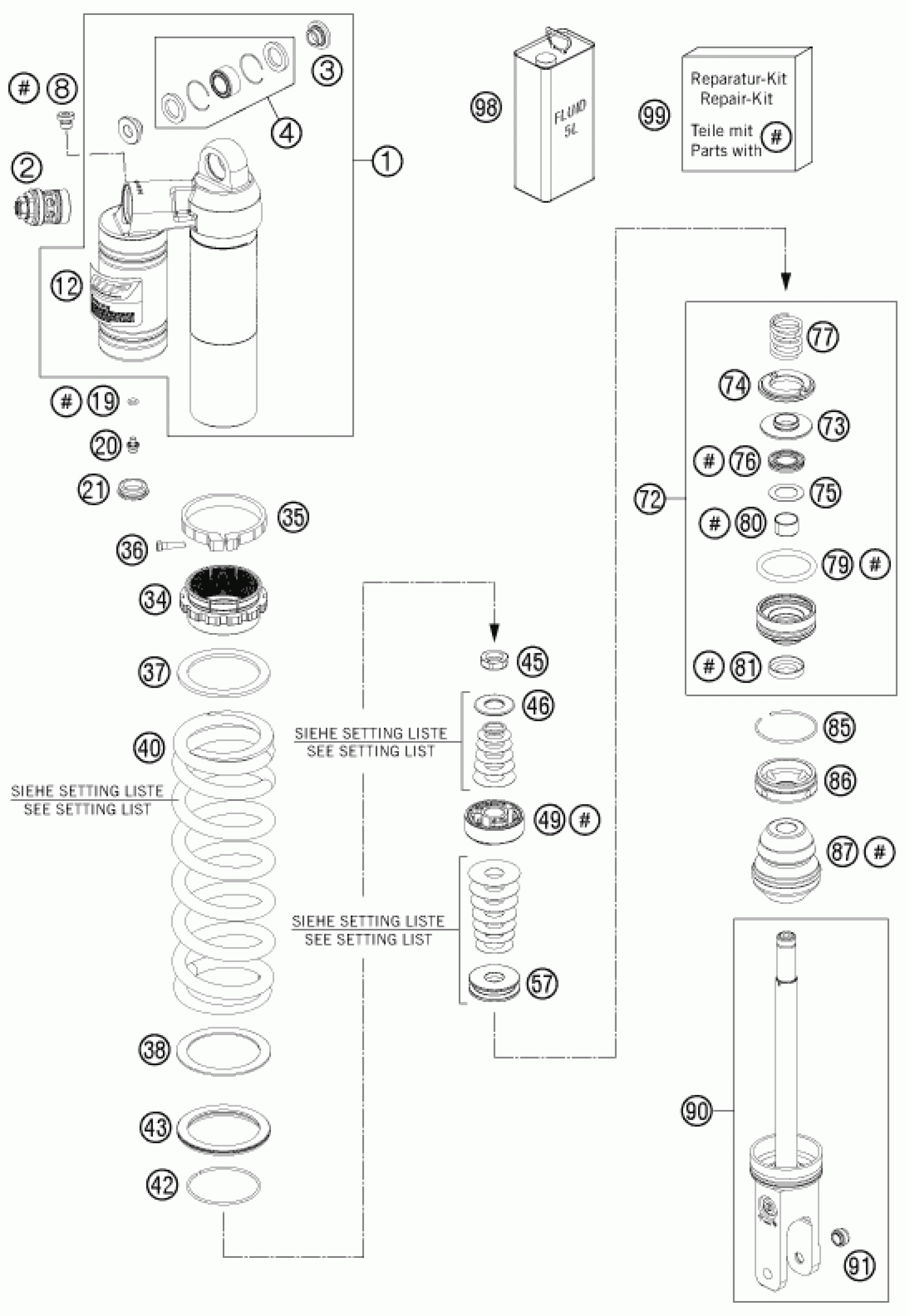

KTM 250 XC 2014 SHOCK ABSORBER DISASSEMBLED Diagram

MONOSHOCK UPPER PART CPL.

50180944S1

$366.35

DDC compr.damp. Con SX 13 USA

50180213S17

$130.47

Distance bush 10x15/18/24,5x10

46180010

$4.11

Ball joint bearing kit top 12m

R12012

$35.71

HS cylinder-head screw R1/8 l8

50180095

$2.42

Sticker WP warning 47x63

52000087

$10.00

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

HS lock screw M5x6

36120151

$1.86

Rubber cap do not open 22x5,5

46811208

$3.08

Spring retainer M56x2x63,8x33

50180938

$35.05

Clamp d64

50180937

$20.41

HS cylinder-head screw M5x20 D

14460042

$1.49

Intermediate washer spring 64,

50180965

$10.84

Intermediate washer spring 61,

50180793

$3.08

SPRING 260 51N/MM D11,25 OR.

91210082S

Unavailable

SPRING 260 54N/MM D11,5 OR.

91210083S

Unavailable

SPRING 260 57N/MM D11,75 OR.

91210084S

Unavailable

Round-wire snap ring 58,5x2

50180273

$2.05

Spring retainer 61,5x79,1x7

50180824

$25.70

Piston rod nut 16x1

50180141

$9.06

Rebound disc 16x34x2 h0

50180836

$9.54

piston 16,05x50x20 cmpl.

50180786S

$47.96

Rebound disc 16x43x15 h12

50180961

$19.99

ADAPTER D50 H28 CPL.

50180603S3

$83.58

Spring retainer 18,6x43,7x2 re

50180800

$8.41

Rubber pad rebound 28,8x48x8

50180798

$4.11

Shim 29.75x19x0.4

50180604

$2.05

Seal ring cpl. 18x30x5

50180605S

$22.06

Spring (3,2) 30-30

50180780

$14.20

O-ring 41x5 NBR70

50180103

$1.49

Guide bushing 18x20x12

46180119

$6.35

Dirt scarper NOK 18mm black

50180606

$7.85

Round-wire snap ring 53x1,75

50180126

$1.49

Cover 50x6 h16

50180626

$45.81

Rubber pad 17x59x64

50180775

$22.43

MONOSHOCK BOTTOM PART CPL.

50180773SA1

$512.93

Bush M10x12/15/13x9,5

46811205

$6.72

SHOCK ABSORBER FLUID 5 LT

50180751S1

$149.59

REPAIR-KIT

R12018

$64.97
