Description

Price

21

O-RING 74,00X1,50 FKM 75SH

0770740015

$4.11

24

HH collar screw M6x13 TX30

0024060136

$3.08

25

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

26

HH collar screw M6x15 TX30

0024060156

$3.08

27

Silent block for exhaust pipe

50305012000

$19.91

28

clip nut M6

54603048100

$4.11

29

SILICON SLEEVE D=29/31MM

50205057000

$32.90

30

EXHAUST MANIFOLD

54805107000

$536.96

31

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

32

O-RING 44,00X3,00 VITON

0770440030

$4.11

38

ROCKWOOL 315G

54805078315

$59.46

1

MAIN SILENCER 250-300 EXC

54805083200

$404.10

10

HH collar screw M6x30 TX30

0025060306

$3.08

14

spring washer DIN 137 B - 6

0137060003

$2.05

15

ENDCAP CPL.

54805083260

$84.24

16

SCREW TORX M5X10 05

58605083010

$2.05

17

SILENCER HOUS. CPL. W. HANGING

54805183085

$105.55

18

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

99

EXHAUST HARDWARE KIT 11-14

00050000811

Unavailable

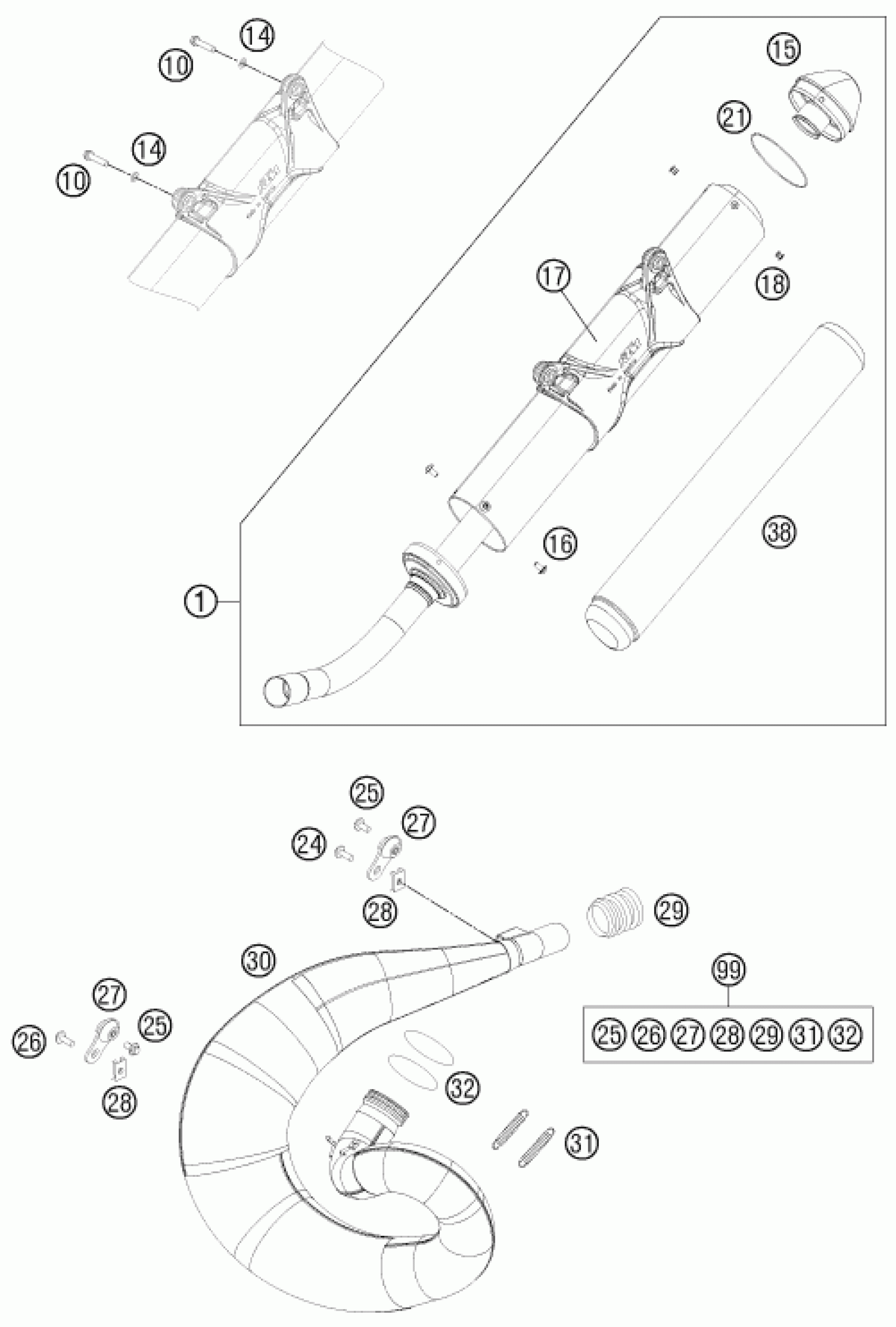

KTM 250 XC 2013 EXHAUST SYSTEM Diagram

O-RING 74,00X1,50 FKM 75SH

HH collar screw M6x13 TX30

HH COLLAR SCREW M6X10 TX30

HH collar screw M6x15 TX30

Silent block for exhaust pipe

clip nut M6

SILICON SLEEVE D=29/31MM

EXHAUST MANIFOLD

TEN.SPRING L=62MM EY.MOVEABLE

O-RING 44,00X3,00 VITON

ROCKWOOL 315G

MAIN SILENCER 250-300 EXC

HH collar screw M6x30 TX30

spring washer DIN 137 B - 6

ENDCAP CPL.

SCREW TORX M5X10 05

SILENCER HOUS. CPL. W. HANGING

DUMMY RIVET 4,8X 8 NIRO

EXHAUST HARDWARE KIT 11-14
