Description

Price

1

HANDLEBAR RENTHAL SX 28MM 08

7730200110017

$148.47

2

BAR PAD

77302002000

$29.74

10

THROTTLE GRIP CPL. 09

54802010100

$67.31

12

PROTECTION COVER '97

50302020000

$19.16

13

STARTER CONTROL 04

59411074000

$42.91

14

THROTTLE C. 2STROKE DOM./KEIH

51502091000

$39.45

15

Kill switch

50311089200

$37.58

17

GRIP-SET GRAY/ORANGE 09

54802021200

$22.71

18

Cable tie 200/4.6mm black

44011076200

Unavailable

30

MASTER CYLINDER CPL. 06

54802030044

$240.57

31

Clutch lever cmpl. BREMBO 06

54802031000

$45.15

32

REP. KIT PISTON 06

54802032000

$49.92

33

COVER HYD. CLUTCH CPL.

54802003000

$33.46

34

VALVE

54802051000

$19.16

35

BOLT KPL.

54802052000

$29.35

3

HANDGUARDS CPL.LE+RI ORANGE

7810297900004

$37.34

36

Brake fluid DOT5.1 0,25L

00062030000

$12.52

37

PROTECTION CAP 06

54802037000

$20.94

38

Lever screw cmpl. 06

54802038100

$39.82

39

Push rod cmpl.

54802046000

$23.46

44

CLAMP CPL. 06

54802005100

$25.80

63

CLUTCH PIPE 06

54832063000

$100.32

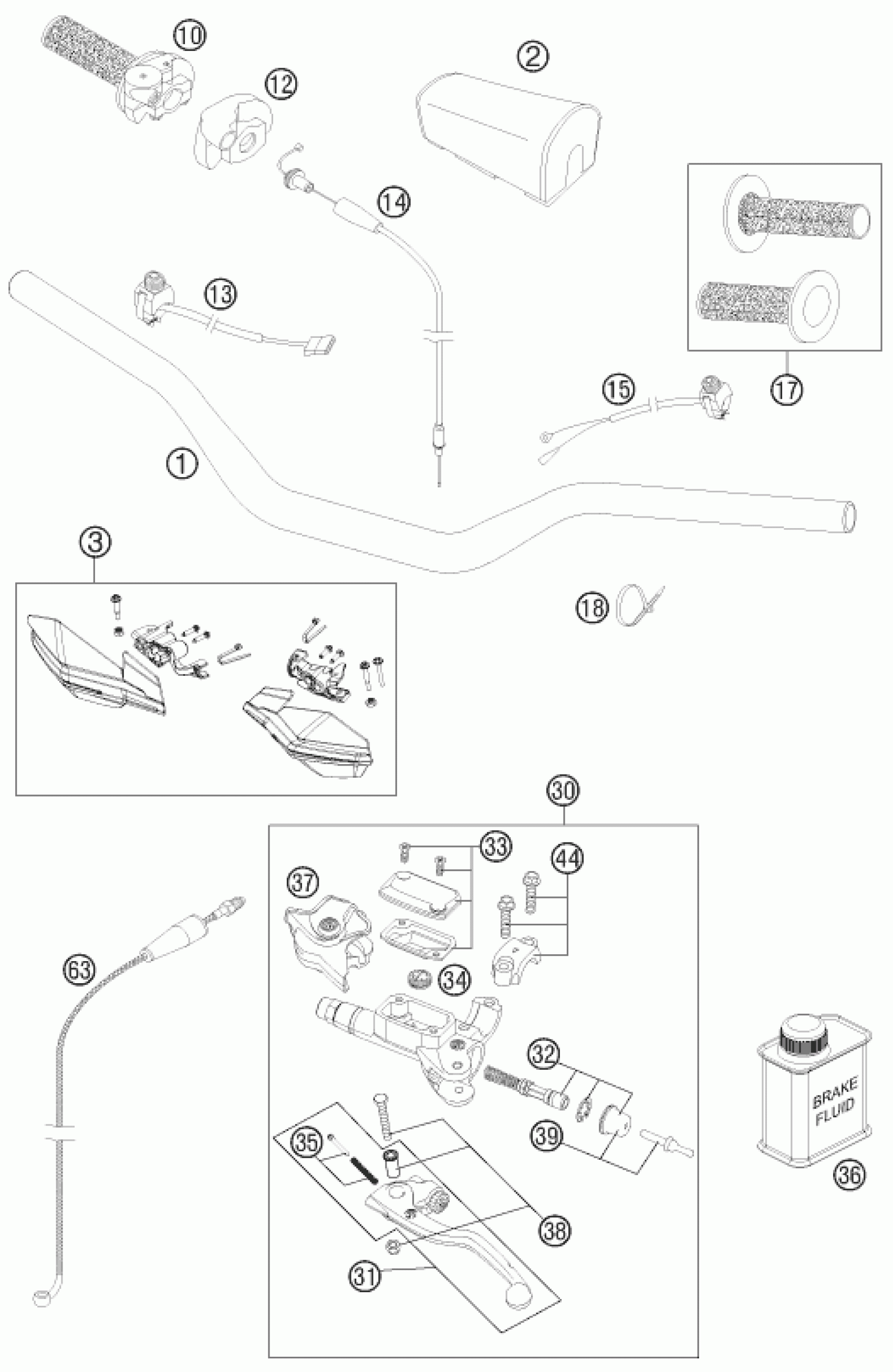

KTM 250 XC 2012 HANDLEBAR, CONTROLS Diagram
