CRANKSHAFT, PISTON

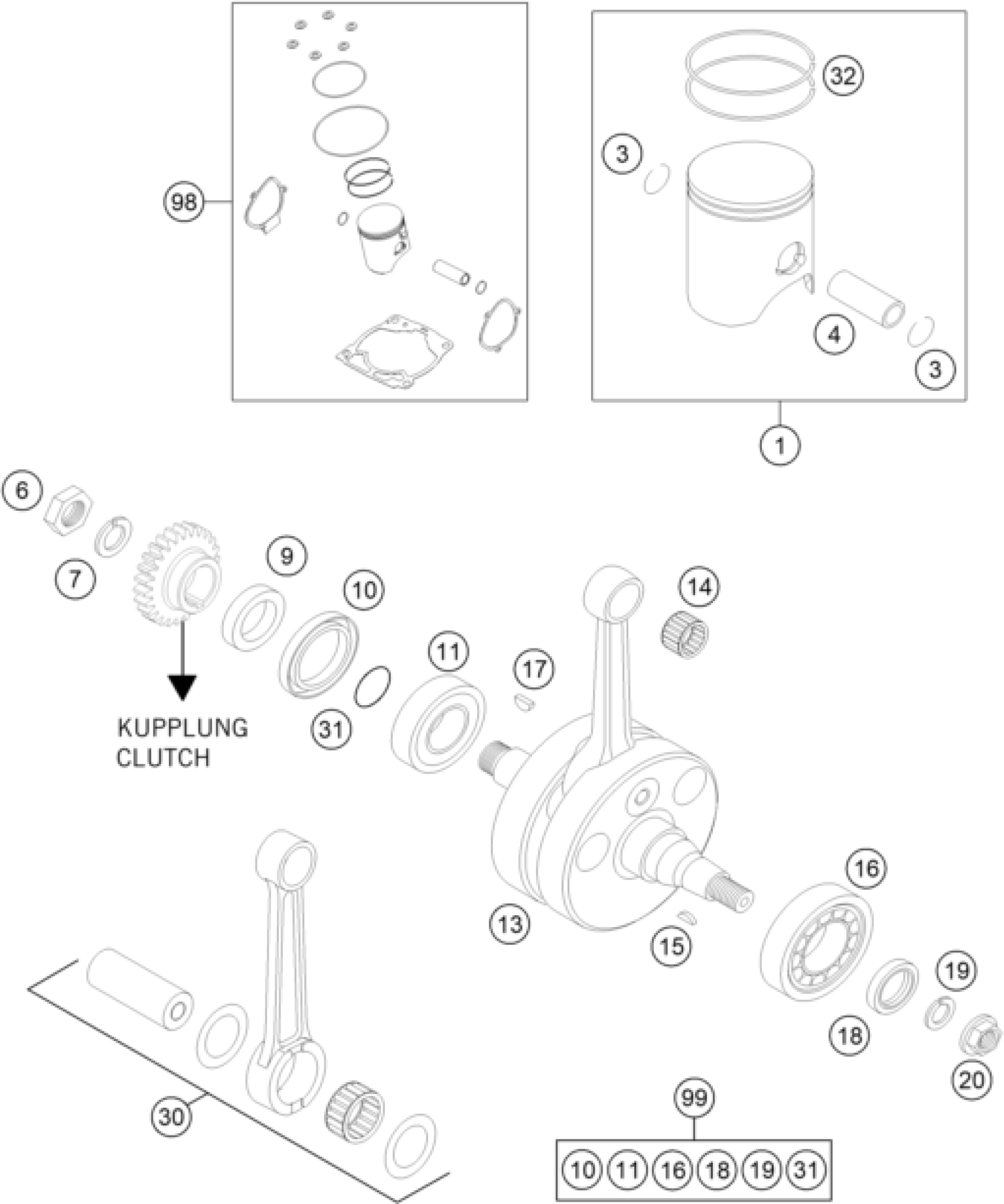

KTM 250 XC 2011 CRANKSHAFT, PISTON Diagram
#
Description
Price
1
PISTON I 250 2011
54830007300 I
$228.13
1
PISTON II 250 2011
54830007300 II
$228.13
3
WIRE LOCK RING C18X1,5
54030074000
$3.08
4
PISTON PIN
54830233000
$29.16
6
HEX.NUT L/SH M18X1,5
54630029000
$10.65
7
LOCK WASHER VSK 18
58132072000
$2.05
9
SPACER SLEEVE 28X38X10 03
54830016000
$15.04
10
SHAFT SEAL RING 38X52X7BTSL
0760385273
$22.06
11
BALL BEARING 32X65X17 NTN
0625623204
$60.95
13
CRANKSHAFT 250/300 EXC-MXC 08
54830118200
$662.25
14
NEEDLE BEARING KBK 18X22X20
54430034000
$20.94
15
WOODRUFF KEY DIN6888-3X5X13
0888030050
$2.05
16
CYLIND.ROL.BEAR. NJ207ET2XCS42
56530123200
$107.05
17
WOODRUFF KEY 5X6,5 HARDED
6946005
$2.05
18
SHAFT SEAL RING 25X35X7 BTSL
0760253570
$16.79
19
LOCKING RING VSK 12
50230029012
$2.05
20
COLLAR NUT M12X1 R/S
49030021000
$2.05
30
CONROD REP. KIT 250/300
54830015144
$352.02
31
O-RING 25,00X1,50 NBR 70
0770250015
$1.49
32
TRAPEZOID RING 250 66,4 MM
54830232000
$47.58
99
CRANKSHAF REP. KIT 250-300
00050002301
Unavailable
98
PISTON KIT GR.I 250 MX/Enduro
00050000109
Unavailable
98
PISTON KIT GR.II 250 MX/Enduro
00050000110
Unavailable
