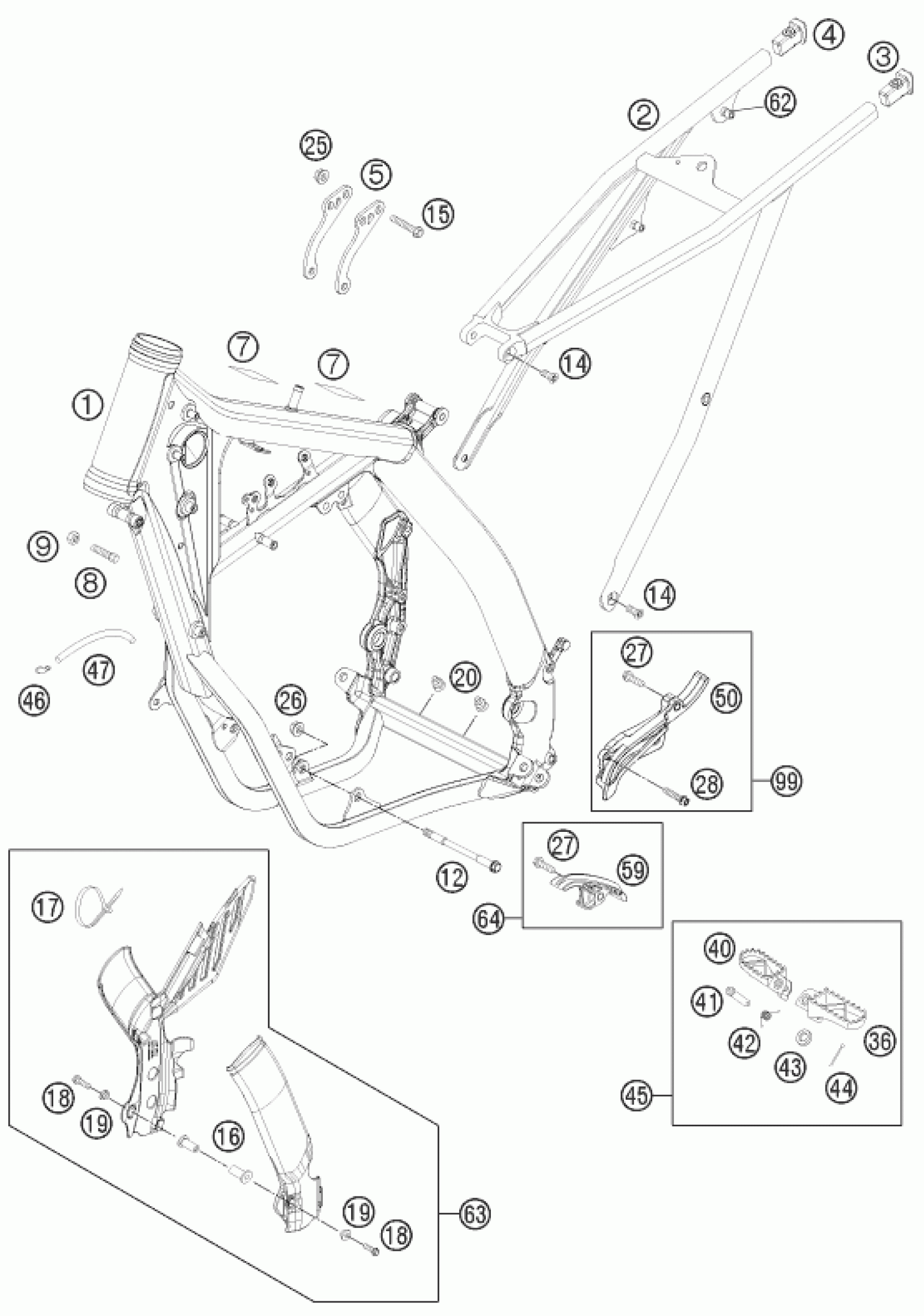

KTM 250 XC 2009 FRAME Diagram
#
Description
Price
1
FRAME 250/300 ''CB08''
5480340110030
$1,135.60
2
SUB FRAME SX ''Q7'' 07
77303002000
$379.79
3
SUB FRAME APPLICAT. LEFT 08
78003002010
Unavailable
4
SUB FRAME APPLICATION R/S 08
78003002020
Unavailable
5
REINFORCING B. 250 SX 07
54803413000
$14.39
7
ADH. FOIL TRANSP. 80X80 MM 04
50307012000
$2.05
8
SPECIAL SCREW M8X26 WS=10
59001037000
$3.08
9
Hexagon nut DIN934 M8
0934080003
$2.05
12
engine brac.scr. M10x105 WS13
54603013000
$12.15
14
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
$2.05
15
HH COLLAR SCREW M 8X44 WS13
56530079000
$3.08
20
PLASTIC CAP SFL10
54403135000
$2.05
25
Self locking nut M8 10.9
54310086200
$3.08
26
SELF LOCKING NUT M10 CU WS=14
54310086100
$2.05
27
HH collar screw M8x30
0025080306
$3.08
28
HH collar screw M6x30 TX30
0025060306
$3.08
36
FOOT PEG L/S SILVER 02
59003040250
$43.66
40
FOOT PEG R/S SILVER 02
59003041250
$43.66
41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
$12.43
42
FOOTREST SPRING L/S & R/S
54603041000
$5.23
43
washer DIN 125 A 10.5
0125100003
$2.05
44
PIN DIN0094-3,2X25 STEEL
0094032253
$1.49
45
FOOTPEG L.+R. CPL. 03
5030314013390
$167.45
46
ANGLE PIECE '97
50303089000
$5.23
47
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
50
SPROCKET COVER 250 SX 07
54803096000
$11.68
59
Chain sliding piece, bottom
77303053000
$9.44
62
BLIND RIVET NUT EM6-60LF/HX
77303139000
$4.11
63
PLASTIC FRAME PROTECTION SET
77303094100
$28.89
64
CHAIN SLIDING KIT BELOW CPL07
77303053010
$11.49
16
BLIND PLUG-IN NUT M5 WN 22A 03
54803092050
$5.23
17
CABLE TIE 300/4,8MM BLACK
44011076305
$2.05
18
COU.SUNK SCR. AH ISO7380 M5X25
0738050250
$1.49
19
Bush f. frame protection 03
54803092060
$4.11
99
SPROCKET COVER KIT
54803096010
$19.72
