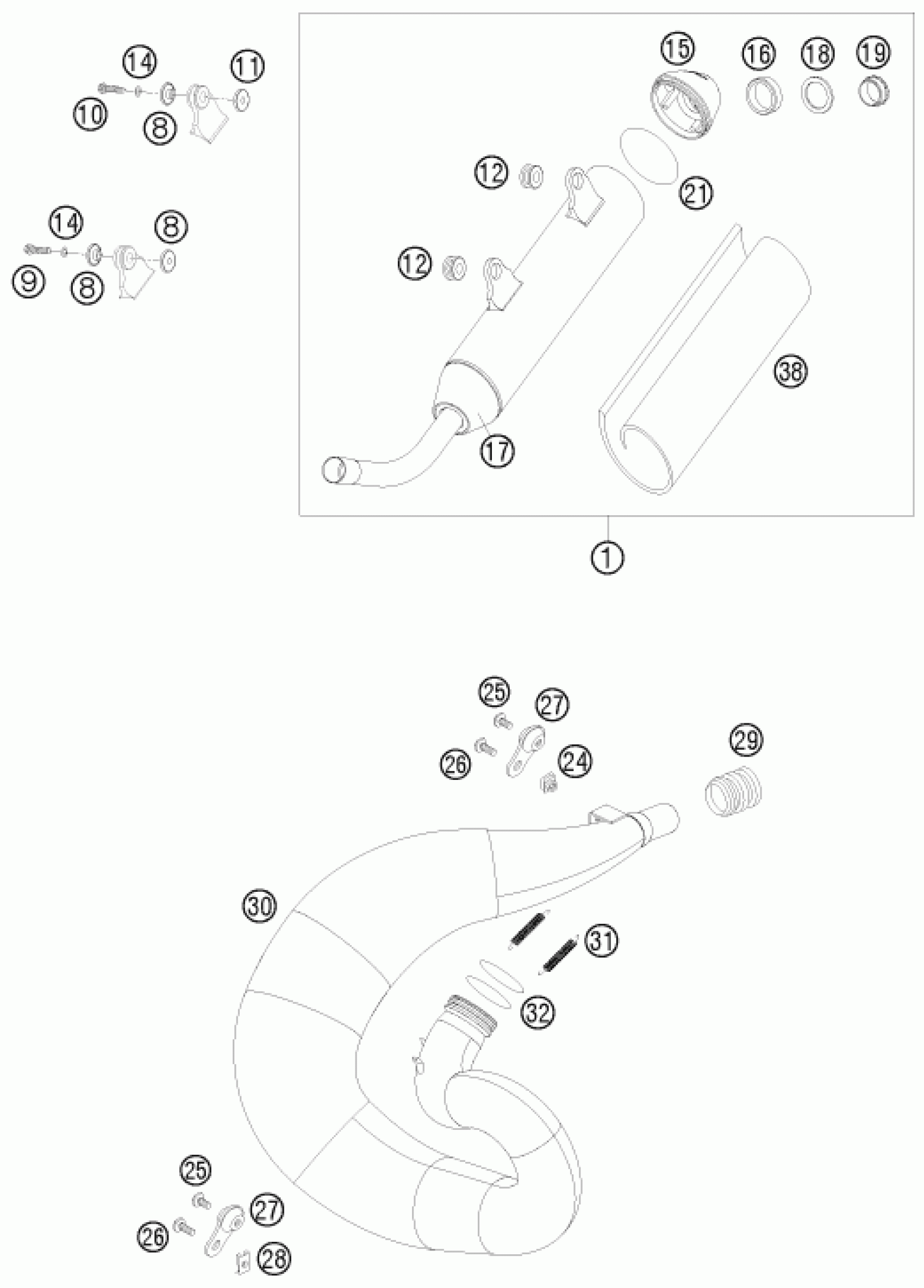

KTM 250 XC 2009 EXHAUST SYSTEM Diagram

#

Description
Price

1

EXHAUST SILENCER SX 07

54805079100

$325.49

8

BUSHING 7.5x12x28x7.6 07

77305069000

$6.07

9

HH collar screw M6x30 TX30

0025060306

$3.08

10

HH collar screw M6x35 TX30

0025060356

$3.08

11

BUSHING SIL.-SMR REAR 2004

59405169000

$6.18

12

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

14

spring washer DIN 137 B - 6

0137060003

$2.05

15

SILENCER ENDCAP 2-STROKE 2004

54805079052

$38.16

16

SILCENCER RUBBER 2-STROKE 2005

54805079150

$14.95

17

SILENCER CONNECTING-CAP 2004

54805079060

$20.88

18

SILENCER DISC 2004

54805083060

$4.11

19

SILENCER SCREW 2-STROKE 2004

54805079058

$7.39

21

0-RING 55,00X2,00 NBR70

0770055020

$2.05

24

SNAP-NUT HOLDER M6 KP 134

50235033200

$4.11

25

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

26

HH collar screw M6x15 TX30

0024060156

$3.08

27

Silent block for exhaust pipe

50305012000

$19.91

28

clip nut M6

54603048100

$4.11

29

SILICON SLEEVE D=25/27MM

54605157000

$32.53

30

EXHAUST PIPE 250 SX 2004

54805007100

$291.55

31

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

32

O-RING 44,00X3,00 VITON

0770440030

$4.11

38

STUFFING YARN SX 390 GR. 2007

54805079390

$66.96
