SHIFTING MECHANISM

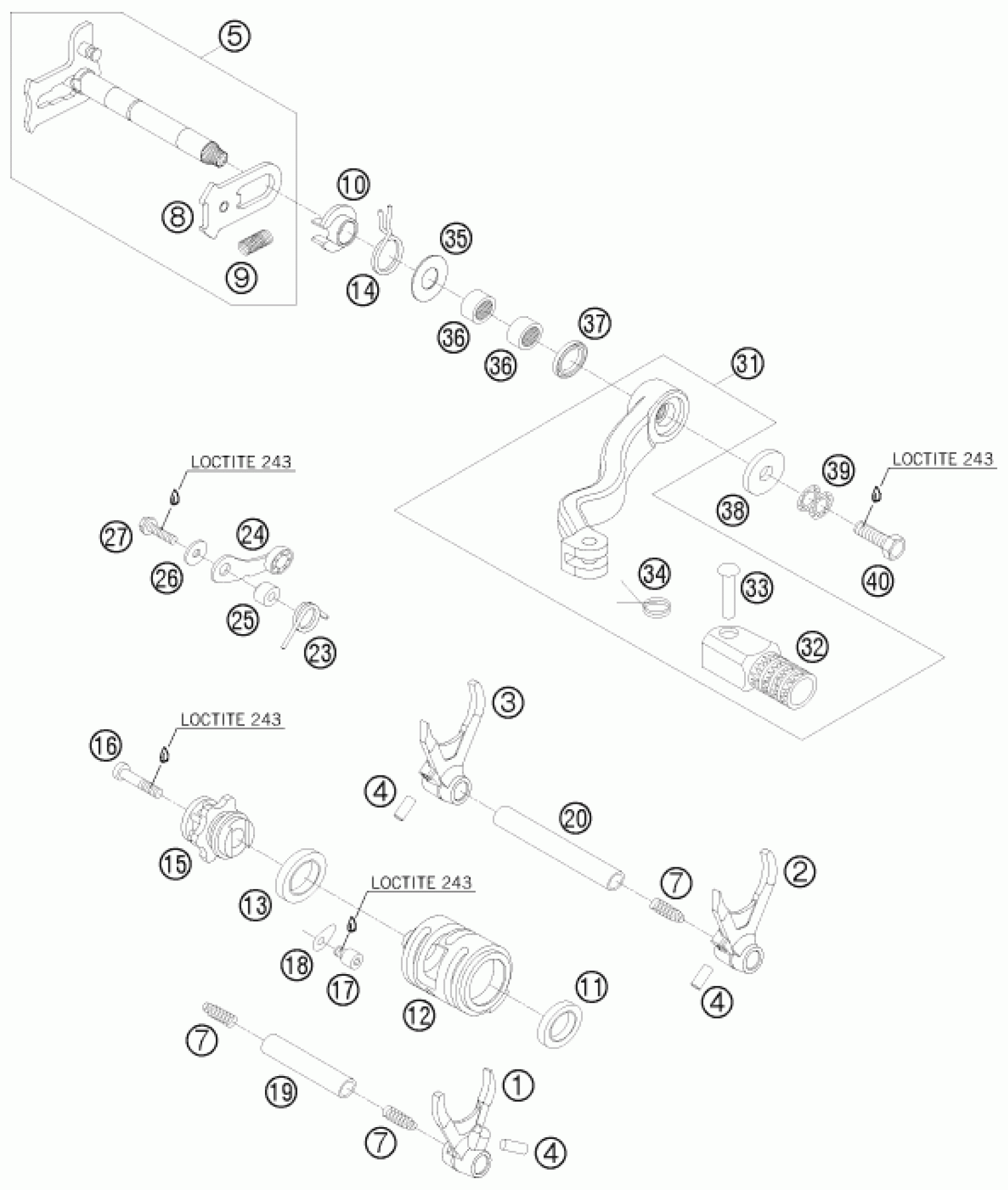

KTM 250 XC 2008 SHIFTING MECHANISM Diagram
#
Description
Price
1
SHIFTING FORK 4TH/5TH GEAR 03
54834001000
$79.93
2
SHIFTING FORK 2ND GEAR 03
54834002000
$78.72
3
SHIFTING FORK 1ST/3RD GEAR 03
54834003000
$79.93
4
NEEDLE ROLLER DIN5402 6X14,8
0402061480
$4.11
5
SHIFTING SHAFT CPL. 03
54834005044
$57.21
7
PRESSURE SPRING 0,9MM
58038023200
$4.11
8
SLIDING PLATE CPL.
54634008044
$10.46
9
TENSIONING SPRING 0,8MM
56534013100
$1.49
10
SPRING GUIDE
54634020000
$6.44
11
BALL BEARING 6903 C4
0625069034
$20.37
12
SHIFT ROLLER 03
54834012000
$117.61
13
BALL BRG 6805 C4 NTN JAPAN
0625068050
$43.94
14
RETURN SPRING 03
54834014000
$4.11
15
SHIFT LOCATING DRUM 2003
54834015000
$48.05
16
AH SCREW DIN6912 M6X30 8.8
0012060303
$1.49
17
AH collar screw DIN 912 M6x8
0912060083
$2.05
18
RETAINING PLATE
54634049000
$4.11
19
SHIFT. RAIL MAIN SHAFT 250/300
54834019000
$12.80
20
SHIFT. RAIL C. SHAFT 250/300
54834020000
$13.74
23
LOCKING LEVER SPRING 03
54834023000
$3.08
24
LOCATING LEVER CPL. 08
50334024144
$14.58
25
SLEEVE FOR LOCKING LEVER
54634052300
$3.08
26
WASHER DIN7349-5X15X2
0349000050
$1.49
27
HH COLLAR SCREW M 5X20 WS=8
0015050203
$2.05
31
SHIFT LEVER CPL. 250/300 05
54834031000
$91.25
32
STEP PLATE FOR SHIFT LEVER 250
54634131000
$31.59
33
BOLT 6X25 FOR SHIFT LEVER
54634031050
$7.85
34
SHIFTING LEVER SPRING 250
54634032100
$3.08
35
STOP DISK 14X30X1
54634050000
$2.05
36
needle sleeve HK 1412 14x20x12
54632095000
$7.00
37
radial shaft seal 14x24x6 B
0760142460
$9.25
38
STEEL WASHER 6,4X17X3
50232050001
$5.23
39
Pair of washers M6 NORDLOCK
50233041000
$4.11
40
HH SCREW DIN0933-M 6X16 10.9
0933060165
$2.05
