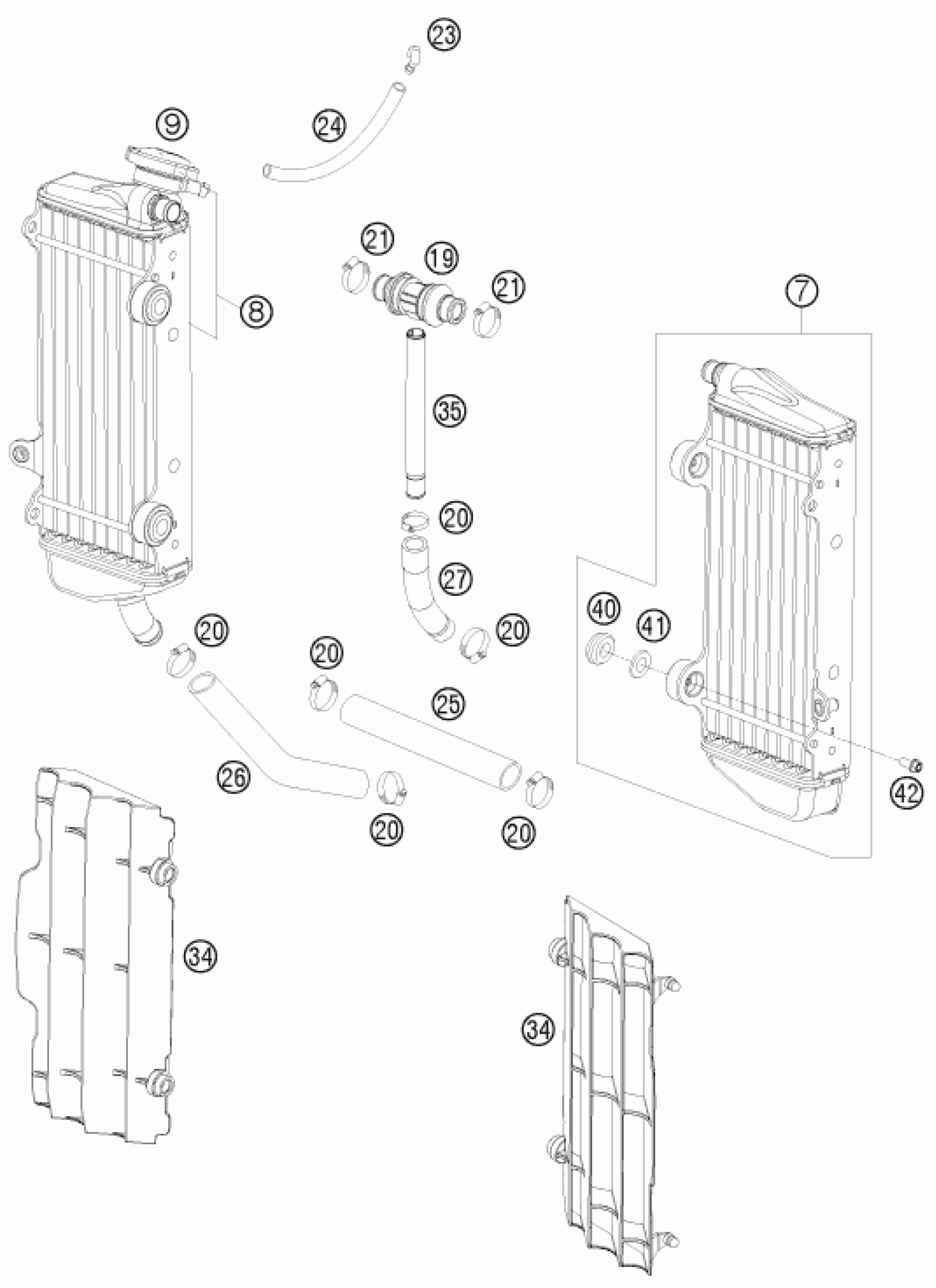

KTM 250 XC 2008 COOLING SYSTEM Diagram

RADIATOR L/S 2 STROKE SX 07

54835007100

$250.18

RADIATOR R/S 2 STROKE SX 07

54835008100

$330.14

RADIATOR CAP SMALL 20,3 PSI

58035016000

$25.70

T-CONNECTOR CPL. ´07

77335026000

$53.57

HOSE CLAMP GEMI 18-29

10001020000

$2.05

HOSE CLAMP GEMI 12/22

42013037200

$2.05

ANGLE PIECE '97

50303089000

$5.23

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

PREFORMED HOSE ENG.-RAD. 07

54835125000

$9.90

RADIATOR HOSE 18X25 125/200'98

50335027000

$16.45

RADIATOR PROTECTION BLACK 07

7733503400030

$10.74

HOSE CONNECTOR 2 STROKE 07

54835072000

$24.21

RUBBER SLEEVE D=12MM

41001052000

$4.11

COLLAR SCREW M6X12 TX

0023060123

$2.05

WASHER FOR RADIATOR 08

77335001000

$2.05
