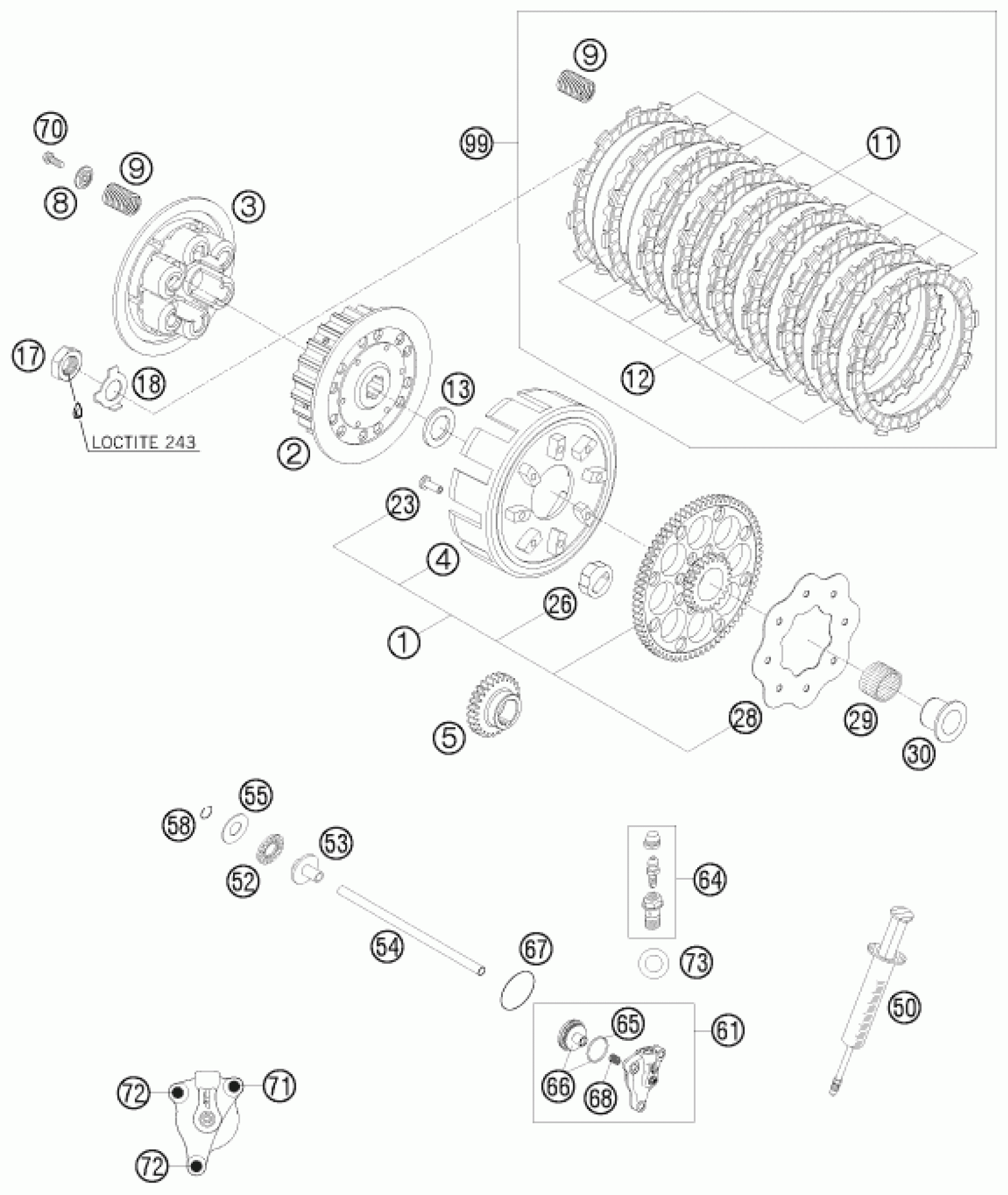

KTM 250 XC 2008 CLUTCH Diagram

#

Description
Price

1

OUTER CLUTCH HUB 72-T CPL. 03

54832001072

$516.00

2

INNER CLUTCH HUB 546/548 2003

54832002000

$126.22

3

PRESSURE CAP 250-380 '98

54632003000

$78.91

4

OUTER CLUTCH HUB LOOSE 2003

54832001000

$358.56

5

PRIMARY GEAR 26T 2003

54832000026

$90.59

8

SPRING RETAINER 6,2 X 20 X 3,2

58132081000

$3.08

9

CLUTCH SPRING 2,5X41,9 8,75W

54832080000

$6.63

11

LINING DISC FCC 04

54832011000

$24.11

12

STEEL DISC

54832012100

$11.12

13

SUPPORTWASHER 22,2X35X3 HARDE.

57532013000

$18.72

17

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

18

LOCK WASHER

56532018000

$6.26

23

CLUTCH RIVET DIN7338- 6X15

0733060150

$7.85

26

DAMPING ELEMENT

58132026000

$6.07

28

RETAINING PLATE

58132028000

$6.30

29

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

30

INNER RING WITH COLLAR

50332070000

$49.27

50

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

52

AXIAL NEEDLE BEARING AXK 1226

54637097200

$10.18

53

PRESSURE PIECE 125-380 '98

50332054051

$26.45

54

PUSH ROD 250 2003

54832054000

$11.96

55

AXIAL WASHER AS1226 12X26X1

54637098200

$5.23

58

CIRCLIP DIN7993-RW12

0993012000

$3.08

61

OUTPUT CYLINDER CPL. 06

54832061044

$137.44

64

BLEEDER HOLLOW SCREW M10X1

54813020000

$27.48

65

O-RING

54832067000

$3.08

66

PISTON CPL.

54832066000

$68.43

67

O-ring 30x1.5 NBR 70

0770300015

$2.05

68

PRESSURE SPRING

54832069000

$12.05

70

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

71

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

72

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

73

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

99

CLUTCH KIT 250/300 '04-'12

54832011010

Unavailable
