Description

Price

1

Flat head screw DIN7991 M5X10

0991050102

$2.05

2

RETAINING PLATE R/S 07

54837062000

$10.56

3

RETAINING PLATE L/S 07

54837063000

$7.10

4

O-ring 16x2 Viton 75

0770160021

$3.08

5

CONTR.VALVE L/S CPL. 07

54837061044

$35.80

6

CONTR.VALVE R/S CPL. 07

54837061144

$30.32

8

CYLINDER PIN DIN 7-5X16MM (M6)

0007050160

$1.49

10

AH SCREW DIN0912-M 6X20

0912060203

$2.05

11

SPRING SLEEVE

54637067000

$4.11

12

OVERLOAD SPRING

54637066000

$4.11

13

RETAIN.PLATE CONTROL FLAP '92

54637085300

$5.23

14

CONTROL LEVER WITH BALL TYPE

54637065000

$21.03

15

BUSHING SLEEVE

54637068100

$7.85

16

GEAR SEGMENT CPL. RIGHT 07

54837064144

$102.56

17

GEAR SEGMENT L/S 250 07

54837064150

$29.72

18

BEAR. SLEEVE F.CONTROL FLAP'97

54737019000

$8.41

19

O-RING 15,00X1,50 VITON

0770150151

$3.08

20

CONTROL CLAP 250 07

54837020200

$101.35

21

AH SCREW DIN0912-M 6X16

0912060163

$1.49

22

WASHER 6,5X11X2

54637056100

$1.49

23

AH collar screw DIN 912 M6x8

0912060083

$2.05

25

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

26

WASHER DIN7349-5X15X2

0349000050

$1.49

27

WATER PUMP WHEEL 07

54835005000

$4.11

28

SHAFT SEAL RING 8X24X7 A DUO

0760082472

$7.66

29

spring washer DIN 137 B - 6

0137060003

Unavailable

30

BALL BEARING 16002 C3

0625160020

$19.07

31

CENTRIFUGAL TIMER CPL. 250/300

54837050044

$211.68

36

Grooved ball bearing 626LLBC3/

54637098100

$12.61

40

HH COLLAR SCREW M 5X20 WS=6

0014050203

$3.08

41

COVER LID 250-380'98

54637070100

$18.69

43

SPRING GUIDE 250/300

54837075000

$14.95

44

O-RING 12,37X2,62 NBR70

0770021120

$3.08

45

O-RING 24,00X2,00 NBR70

0770240020

$2.05

46

ADJ.SPRING L=65MM D=2MM '96

54637072100

$3.08

47

AUXILIARY SPRING SOFT, RED

54837072000

Unavailable

47

AUXILIARY SPRING MID. YELLOW

54637072300

$3.08

48

SPRING INSERT

54637071200

$9.06

50

ANGLE LEVER CPL. '91

54637055244

$31.69

47

AUXILIARY SPRING HARD GREEN

54837072100

Unavailable

51

SHIM WASHER DIN988 10X16X1

0988101610

$2.05

52

NEEDLE SLEEVE HK 1010

54637096000

$5.98

53

CONTROL LEVER 03

54837057000

$38.42

60

CONNECT.ROD CPL. L=109,5MM '91

54637095344

$31.45

61

SECURING DIN-71805-S-8

50237195055

$2.05

99

WATER PUMP REP. KIT SX 07-14

54835055110

Unavailable

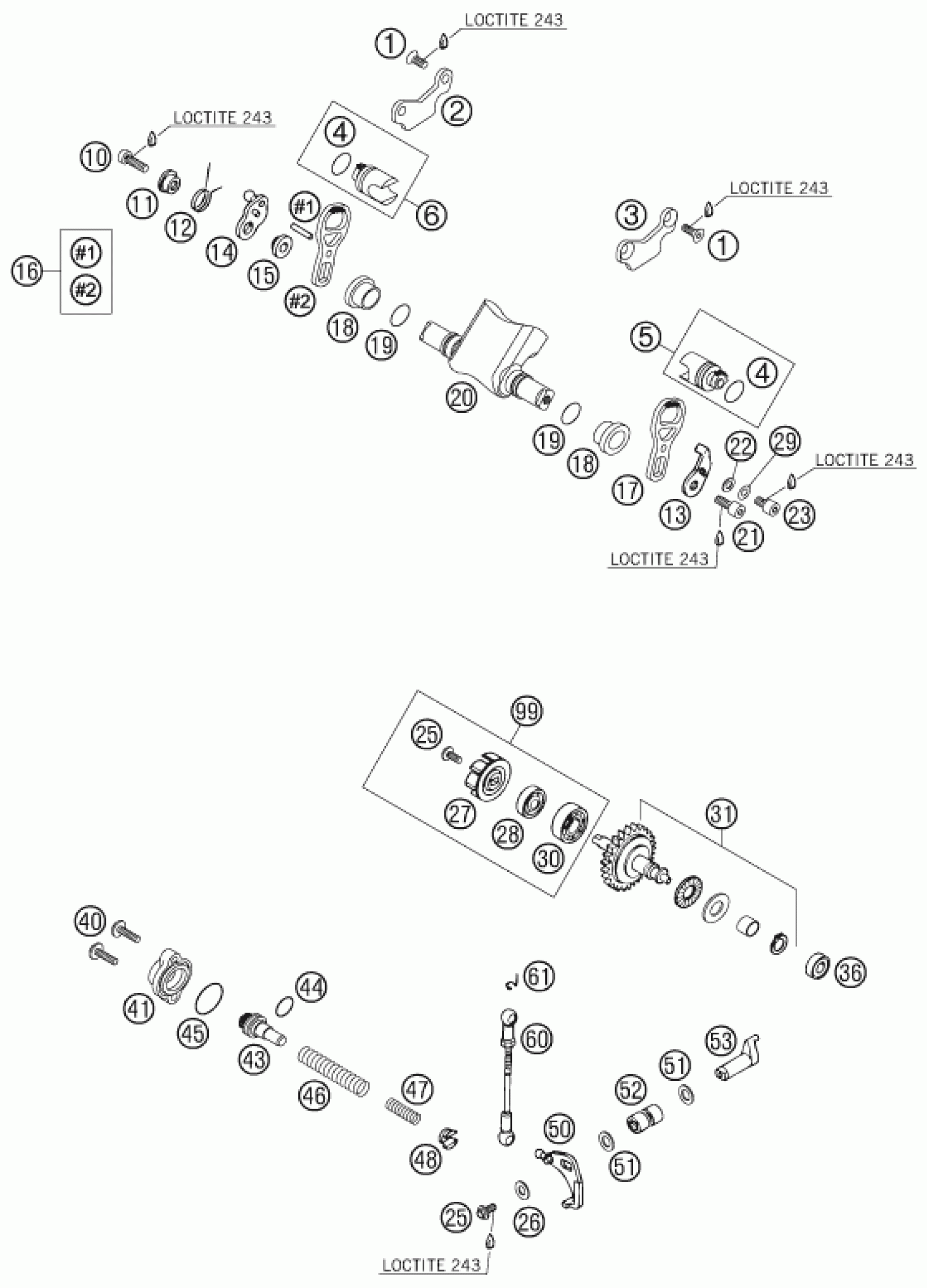

KTM 250 XC 2007 EXHAUST CONTROL Diagram

Flat head screw DIN7991 M5X10

RETAINING PLATE R/S 07

RETAINING PLATE L/S 07

O-ring 16x2 Viton 75

CONTR.VALVE L/S CPL. 07

CONTR.VALVE R/S CPL. 07

CYLINDER PIN DIN 7-5X16MM (M6)

AH SCREW DIN0912-M 6X20

SPRING SLEEVE

OVERLOAD SPRING

RETAIN.PLATE CONTROL FLAP '92

CONTROL LEVER WITH BALL TYPE

BUSHING SLEEVE

GEAR SEGMENT CPL. RIGHT 07

GEAR SEGMENT L/S 250 07

BEAR. SLEEVE F.CONTROL FLAP'97

O-RING 15,00X1,50 VITON

CONTROL CLAP 250 07

AH SCREW DIN0912-M 6X16

WASHER 6,5X11X2

AH collar screw DIN 912 M6x8

HH COLLAR SCREW M 5X12 WS=6

WASHER DIN7349-5X15X2

WATER PUMP WHEEL 07

SHAFT SEAL RING 8X24X7 A DUO

spring washer DIN 137 B - 6

BALL BEARING 16002 C3

CENTRIFUGAL TIMER CPL. 250/300

Grooved ball bearing 626LLBC3/

HH COLLAR SCREW M 5X20 WS=6

COVER LID 250-380'98

SPRING GUIDE 250/300

O-RING 12,37X2,62 NBR70

O-RING 24,00X2,00 NBR70

ADJ.SPRING L=65MM D=2MM '96

AUXILIARY SPRING SOFT, RED

AUXILIARY SPRING MID. YELLOW

SPRING INSERT

ANGLE LEVER CPL. '91

AUXILIARY SPRING HARD GREEN

SHIM WASHER DIN988 10X16X1

NEEDLE SLEEVE HK 1010

CONTROL LEVER 03

CONNECT.ROD CPL. L=109,5MM '91

SECURING DIN-71805-S-8

WATER PUMP REP. KIT SX 07-14
