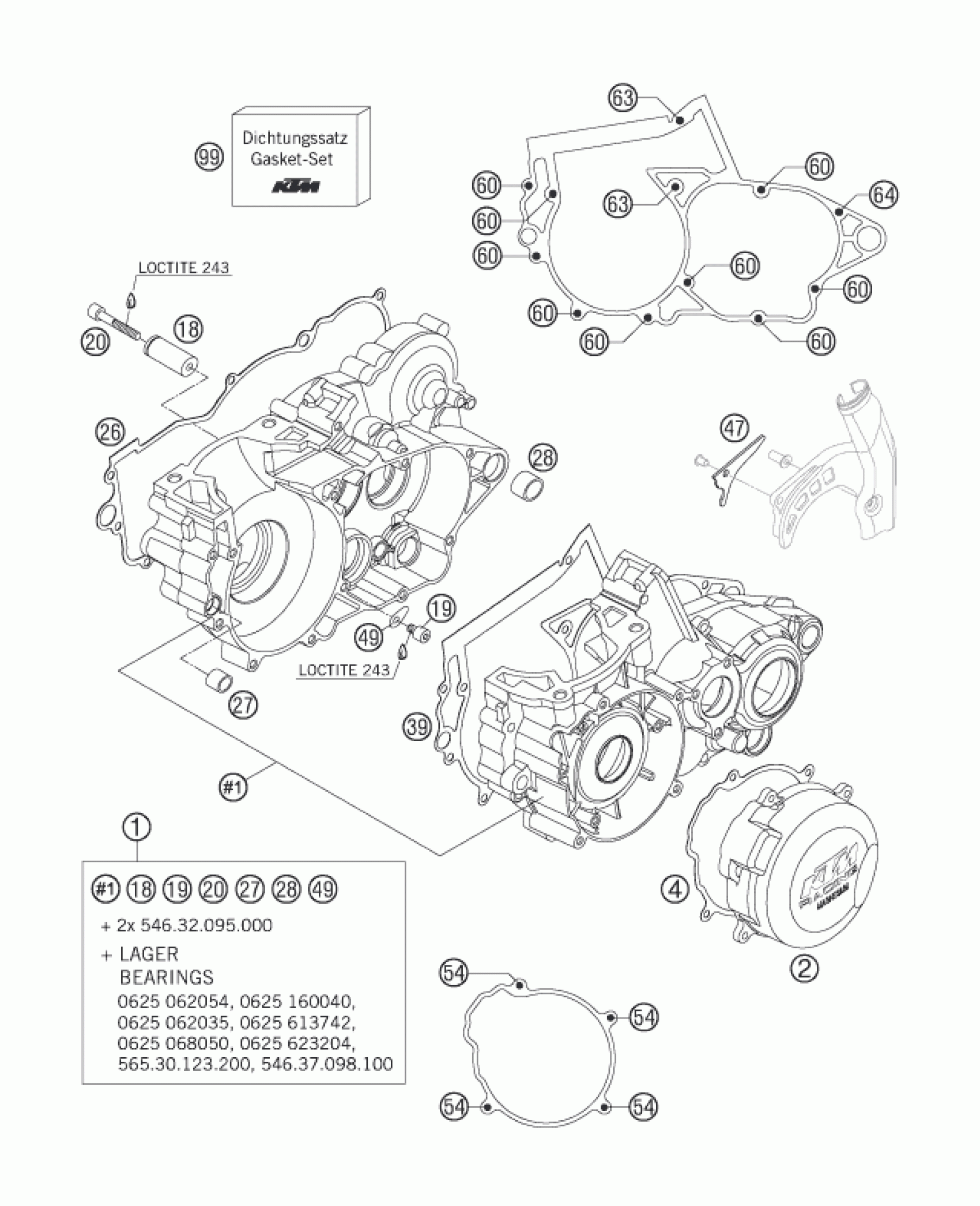

KTM 250 XC 2007 ENGINE CASE Diagram

ENGINE CASE GASKET 2003

54830039000

$16.07

ENG CASE CPL. WITH BEAR. 03

54830000044

$940.32

IGNITION COVER 250/300 04

54830002000

$47.31

IGNITI.COVER GASKET 250/300 03

54830040000

$8.78

BUSHING PIN 2000

59033018000

$12.61

AH collar screw DIN 912 M6x8

0912060083

$2.05

AH SCREW DIN0912-M 6X40 A2

0912060404

$2.05

CLUTCH COVER GASKET 2003

54830024000

$26.55

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

DOWEL 21X12 03

54830027000

$5.23

CHAIN FAIL. PROTECTION 06

54830047100

$5.64

RETAINING PLATE

54634049000

$4.11

HH COLLAR SCREW M 5X16 WS=6

0014050163

$2.05

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

HH COLLAR SCREW M 6X55 WS=8

0015060553

$1.49

HH COLLAR SCREW M 6X60 WS=8

0015060603

$3.08

GASKET SET 250 07

54830099100

$210.27
