CYLINDER, CYLINDER HEAD

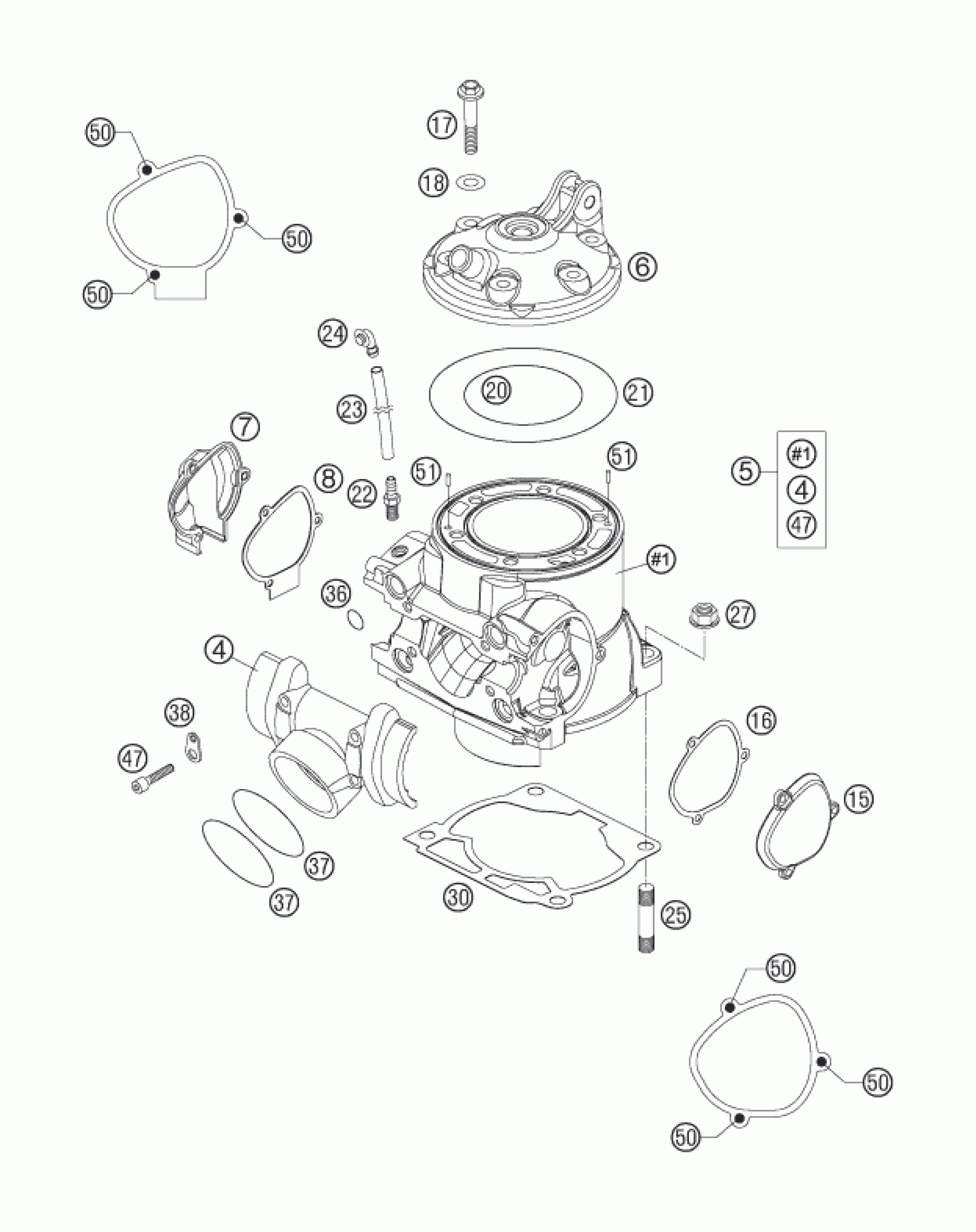

KTM 250 XC 2007 CYLINDER, CYLINDER HEAD Diagram
#
Description
Price
4
INTERMEDIATE FLANGE 250/300 07
54837001200
$233.74
5
CYLINDER CPL. WFLANGE 250 07
54830005344
$1,250.55
6
CYLINDER HEAD 250 XC 07
54830106100
$167.92
7
CONTROL COVER R/S 07
54837007000
$38.42
8
GASKET FOR CONTROL COVER R/S
54837008000
$6.91
15
CONTROL COVER L/S 07
54837005000
$24.58
16
GASKET FOR CONTROL COVER L/S
54837006000
$6.91
17
COLLAR SCREW M 8X35 WS=13
54830079000
$4.11
18
CU-SEAL RING 8 X 16 X 1
56530080000
$2.05
20
O-RING 73,00X2,00 VITON
0770730020
$5.23
21
O-ring 105x2
0770105020
$5.32
22
VACUUM CONNECTION M 6X1
58336020090
$6.63
23
PVC-HOSE 6X9 MM PER METER
31007107001
Unavailable
24
ANGLE PIECE '97
50303089000
$5.23
25
STUD DIN0835-M10X35
0835100351
$5.23
27
COLLAR NUT M10 WS=13
54630044000
$1.49
30
GASKET CYLINDER BASE 0,2MM 03
54830030002
Unavailable
30
GASKET CYLINDER BASE 0,4MM 03
54830030004
Unavailable
30
GASKET CYLINDER BASE 0,5MM 03
54830030005
Unavailable
30
GASKET CYLINDER BASE 0,75MM 03
54830030075
Unavailable
36
O-RING 11,3 X2,4 SILICON
0770116241
$3.08
37
O-RING 44,00X3,00 VITON
0770440030
$4.11
38
RETAINING PLATE
51005074000
$3.08
47
AH SCREW DIN0912-M 6X30
0912060303
$2.05
50
HH COLLAR SCREW M 5X12 WS=6
0014050123
$2.05
51
Needle roll.DIN5402 NRB 4X9.8
0402040980
$3.08
