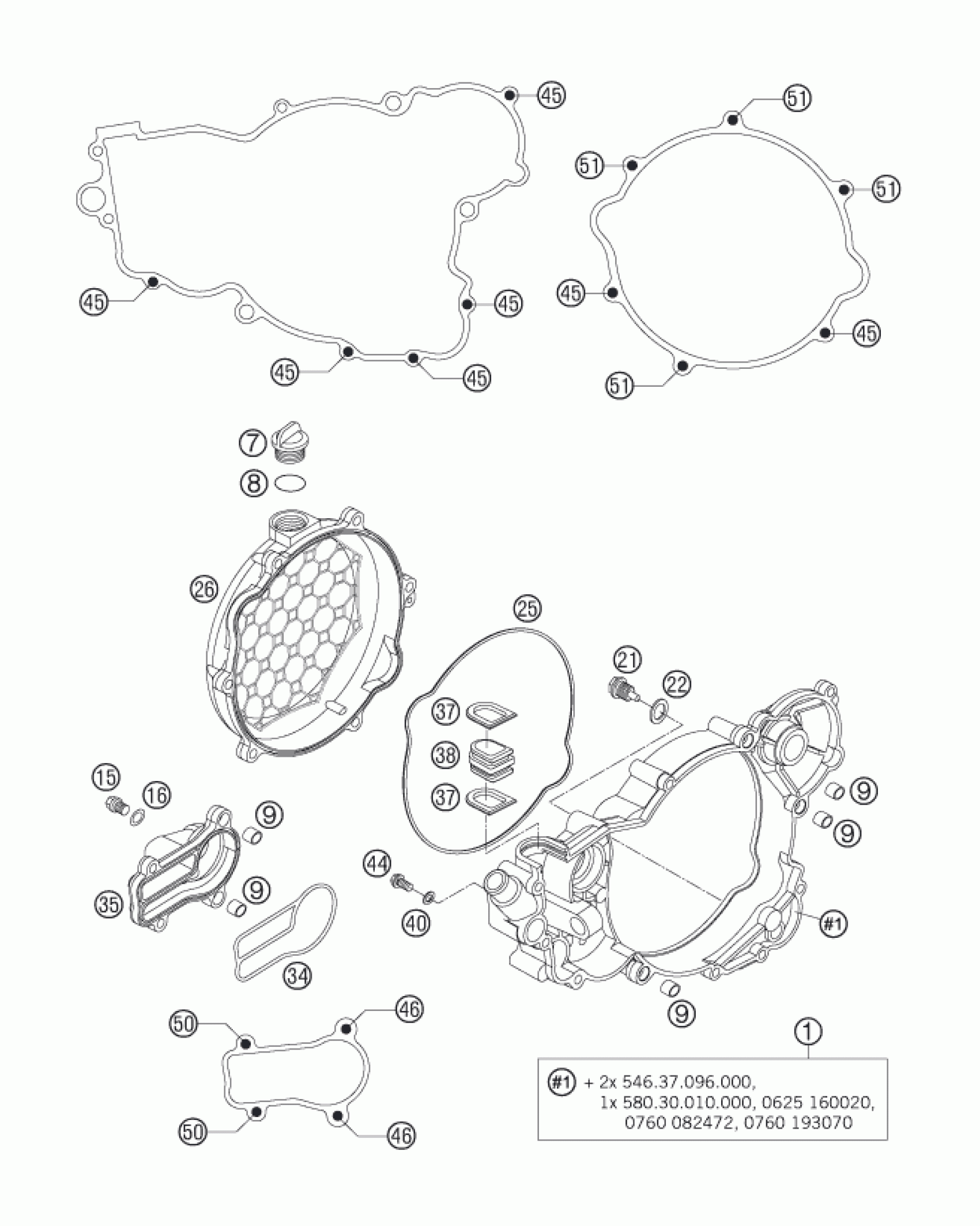

KTM 250 XC 2007 CLUTCH COVER Diagram

INTERM. CLUTCH COVER CPL. 03

54830001044

$215.32

PLUG M 24X3

58030020000

$5.23

O-RING 19,00X3,00 NBR

0770191015

$2.05

DOWEL 9,8 X 7 X 10

49030090000

$2.05

PLUG DIN0910-M 10X1

0910100003

$4.11

sealing ring DIN 7603 10x14x1

0603100141

$2.05

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

GASKET F.CLU.COVER 250/300 03

54830025000

$11.68

CLUTCH COVER OUTSIDE 03

5483002600098

$74.32

GASKET WAPU-COVER 250 2003

54835003000

$5.98

WATERPUMP COVER 250/300 03

54835001000

$46.84

SEALING ELEMENT BOTTOM

54637107000

$7.38

SEALING CARRIER 07

54837091100

$3.08

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

HH COLLAR SCREW M 6X55 WS=8

0015060553

$1.49

HH COLLAR SCREW M 6X60 WS=8

0015060603

$3.08
