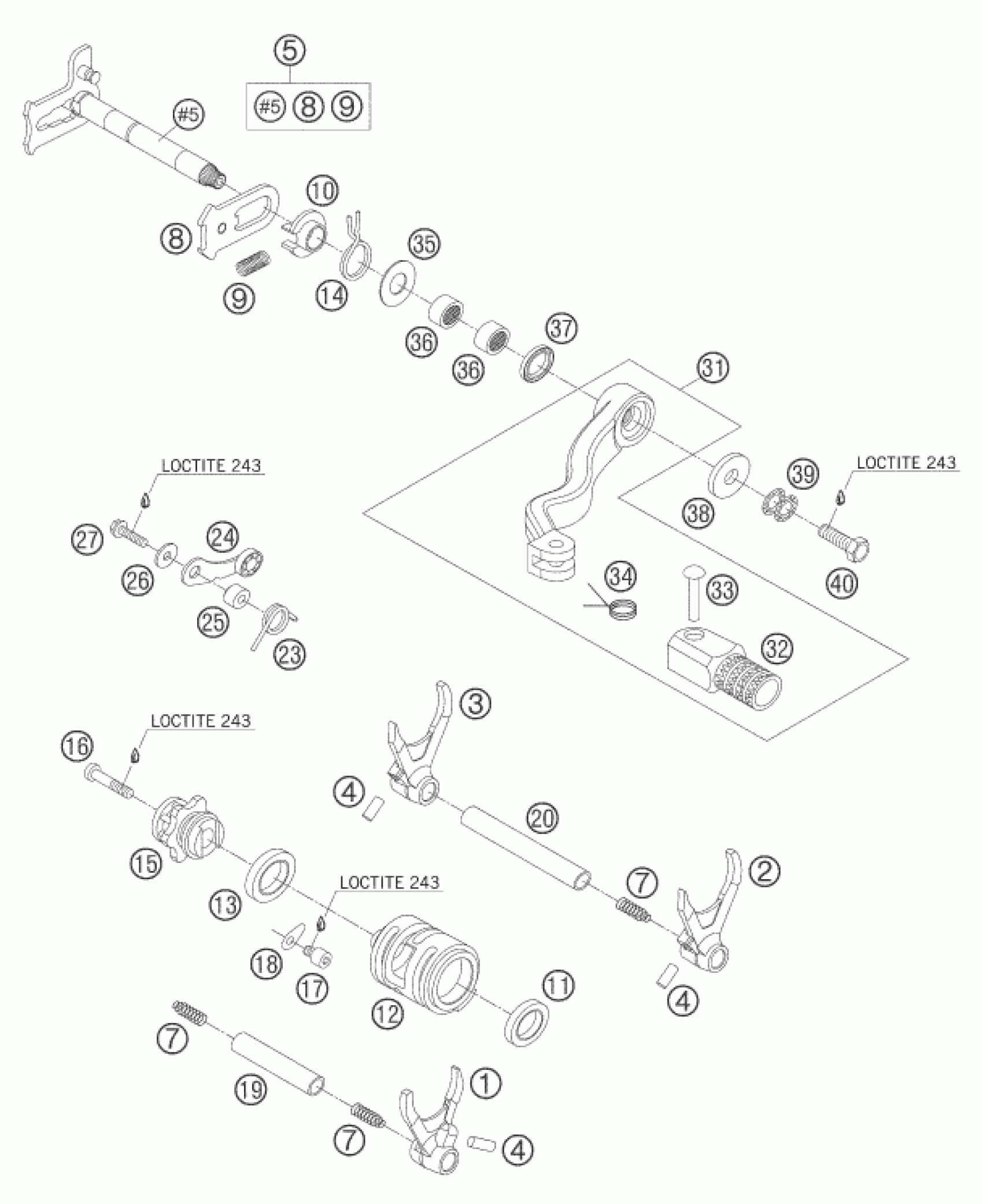

KTM 250 XC 2006 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFTING FORK 4TH/5TH GEAR 03

54834001000

$79.93

2

SHIFTING FORK 2ND GEAR 03

54834002000

$78.72

3

SHIFTING FORK 1ST/3RD GEAR 03

54834003000

$79.93

4

NEEDLE ROLLER DIN5402 6X14,8

0402061480

$4.11

5

SHIFTING SHAFT CPL. 03

54834005044

$57.21

7

PRESSURE SPRING 0,9MM

58038023200

$4.11

8

SLIDING PLATE CPL.

54634008044

$10.46

9

TENSIONING SPRING 0,8MM

56534013100

$1.49

10

SPRING GUIDE

54634020000

$6.44

11

BALL BEARING 6903 C4

0625069034

$20.37

12

SHIFT ROLLER 03

54834012000

$117.61

13

BALL BRG 6805 C4 NTN JAPAN

0625068050

$43.94

14

RETURN SPRING 03

54834014000

$4.11

15

SHIFT LOCATING DRUM 2003

54834015000

$48.05

16

AH SCREW DIN6912 M 6X30

0984060302

$1.49

17

AH collar screw DIN 912 M6x8

0912060083

$2.05

18

RETAINING PLATE

54634049000

$4.11

19

SHIFT. RAIL MAIN SHAFT 250/300

54834019000

$12.80

20

SHIFT. RAIL C. SHAFT 250/300

54834020000

$13.74

23

LOCKING LEVER SPRING 03

54834023000

$3.08

24

LOCATING LEVER CPL. 08

50334024144

$14.58

25

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

26

WASHER DIN7349-5X15X2

0349000050

$1.49

27

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

31

SHIFT LEVER CPL. 250/300 05

54834031000

$91.25

32

STEP PLATE FOR SHIFT LEVER 250

54634131000

$31.59

33

BOLT 6X25 FOR SHIFT LEVER

54634031050

$7.85

34

SHIFTING LEVER SPRING 250

54634032100

$3.08

35

STOP DISK 14X30X1

54634050000

$2.05

36

needle sleeve HK 1412 14x20x12

54632095000

$7.00

37

radial shaft seal 14x24x6 B

0760142460

$9.25

38

STEEL WASHER 6,4X17X3

50232050001

$5.23

39

Pair of washers M6 NORDLOCK

50233041000

$4.11

40

HH SCREW DIN0933-M 6X16 10.9

0933060165

$2.05
