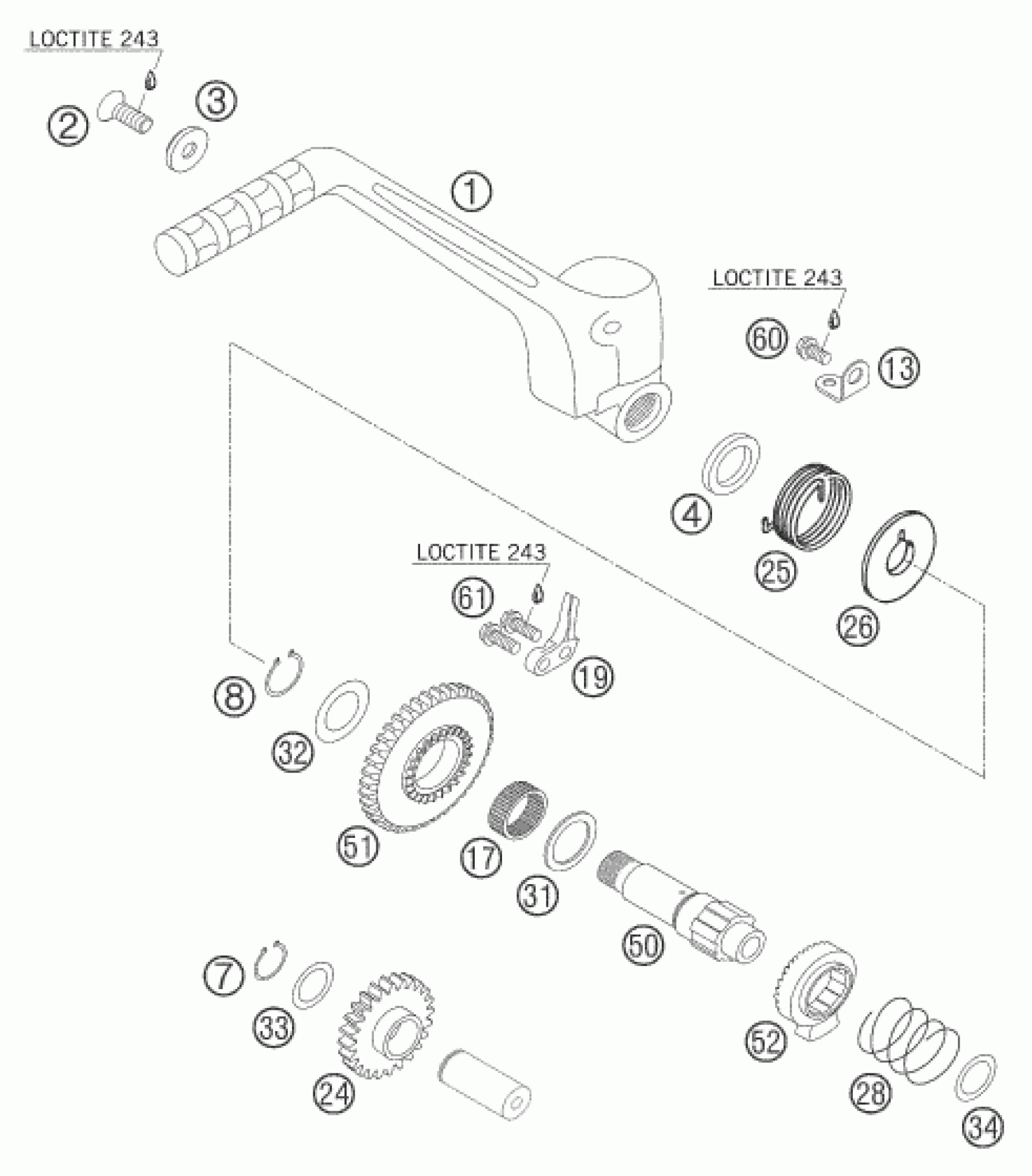

KTM 250 XC 2006 KICK STARTER Diagram

#

Description
Price

13

SPRING HANGER

54633074000

$4.11

17

NEEDLE BEARING K 22X26X10 A

0405222610

$6.72

19

BUMP PART

59033069000

$13.27

24

INTERMEDIATE GEAR 2003

54833024000

$88.82

25

KICKSTARTER SPRING

54633025000

$9.81

26

DRIVING HUB

54633026000

$2.05

28

RATCHET GEAR SPRING 1,2 MM

58033028000

$2.05

31

STOP DISK 22,2 X 30 X 1,5

58033031000

$4.11

32

Shim 20x31.9x1

59033080000

$2.05

33

STOP DISK 17,2X25X1

54633090000

$5.23

34

SHIM WASHER DIN0988-17X24X0,5

0988172405

$2.05

50

KICKSTARTER SHAFT RACING2000

59033050000

$65.25

51

KICKSTARTER GEAR 34-T 03

54833051034

$63.01

52

RATCHET GEAR KICKSTARTER

59033052000

$40.57

60

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

61

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

1

KICKSTARTER CPL. '03

54833070044

$141.08

2

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

3

WASHER 8MM GALVANIZED

54633037000

$6.07

4

SHAFT SEAL RING 19X30X7 B

0760193070

$5.60

7

CIRCLIP DIN0471-17X1

0471170010

$2.05

8

CIRCLIP DIN0471-19X1,2

0471190120

$1.49
