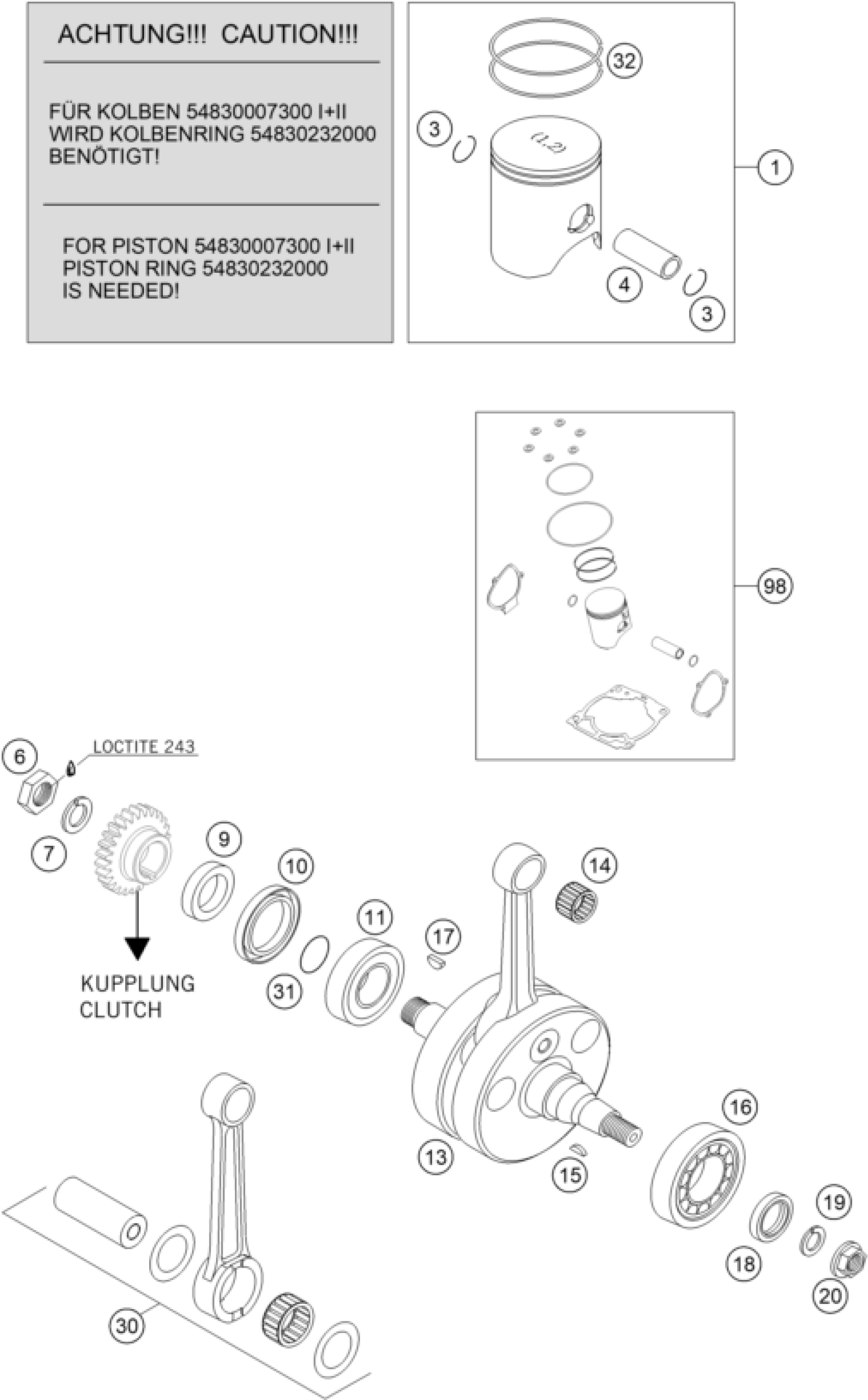

KTM 250 XC 2006 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

PISTON CPL. 250 2 RINGS 05

54830007200 I

$228.13

1

PISTON CPL. 250 2 RINGS 05

54830007200 II

$228.13

3

WIRE LOCK RING C18X1,5

54030074000

$3.08

4

PISTON PIN

54830233000

$29.16

6

HEX.NUT L/SH M18X1,5

54630029000

$10.65

7

LOCK WASHER VSK 18

58132072000

$2.05

9

SPACER SLEEVE 28X38X10 03

54830016000

$15.04

10

SHAFT SEAL RING 38X52X7BTSL

0760385273

$22.06

11

BALL BEARING 32X65X17 NTN

0625623204

$60.95

14

NEEDLE BEARING KBK 18X22X20

54430034000

$20.94

13

CRANKSHAFT 250/300 06

54830118100

$662.25

15

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

16

CYLIND.ROL.BEAR. NJ207ET2XCS42

56530123200

$107.05

17

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

18

SHAFT SEAL RING 25X35X7 BTSL

0760253570

$16.79

19

LOCKING RING VSK 12

50230029012

$2.05

20

COLLAR NUT M12X1 R/S

49030021000

$2.05

30

CONROD REP. KIT 250/300

54830015044

$352.02

31

O-RING 25,00X1,50 NBR 70

0770250015

$1.49

32

SQUARE RING 66,4MM 250 2000

54630232000

$39.45

98

PISTON KIT GR.I 250 MX/Enduro

00050000011

Unavailable

98

PISTON KIT GR.II 250 MX/Enduro

00050000003

Unavailable
