CLUTCH COVER

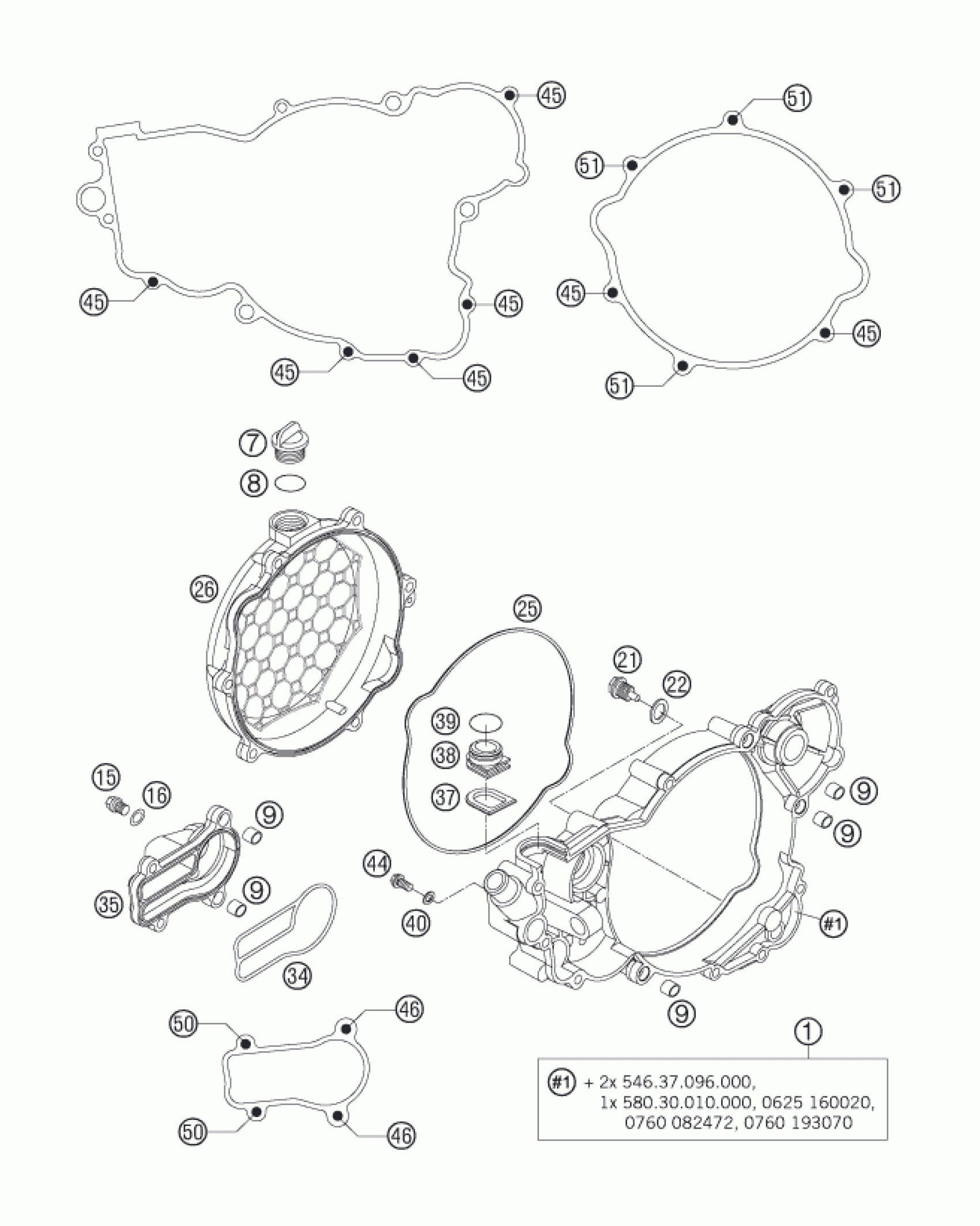

KTM 250 XC 2006 CLUTCH COVER Diagram
#
Description
Price
1
INTERM. CLUTCH COVER CPL. 03
54830001044
$215.32
7
PLUG M 24X3
58030020000
$5.23
8
O-RING 19,00X3,00 NBR
0770191015
$2.05
9
DOWEL 9,8 X 7 X 10
49030090000
$2.05
15
PLUG DIN0910-M 10X1
0910100003
$4.11
16
sealing ring DIN 7603 10x14x1
0603100141
$2.05
21
OILDRAIN PLUG W.MAG. M 12X1,5
58030021000
$11.30
22
CU-seal ring DIN7603-12X18X1.5
58038022000
$2.05
25
GASKET F.CLU.COVER 250/300 03
54830025000
$11.68
34
GASKET WAPU-COVER 250 2003
54835003000
$5.98
26
CLUTCH COVER OUTSIDE 03
5483002600098
$74.32
35
WATERPUMP COVER 250/300 03
54835001000
$46.84
37
SEALING ELEMENT BOTTOM
54637107000
$7.38
38
SEALING CARRIER 03
54837091000
$3.48
39
0-RING 18,72X2,62
0770021160
$3.00
40
CU-SEAL RING DIN7603-6X10X1
0603061001
$2.05
44
HH COLLAR SCREW M 6X12 WS=8
0015060123
$3.08
45
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
46
HH COLLAR SCREW M 6X25 WS=8
0015060253
$3.08
50
HH COLLAR SCREW M 6X55 WS=8
0015060553
$1.49
51
HH COLLAR SCREW M 6X60 WS=8
0015060603
$3.08
