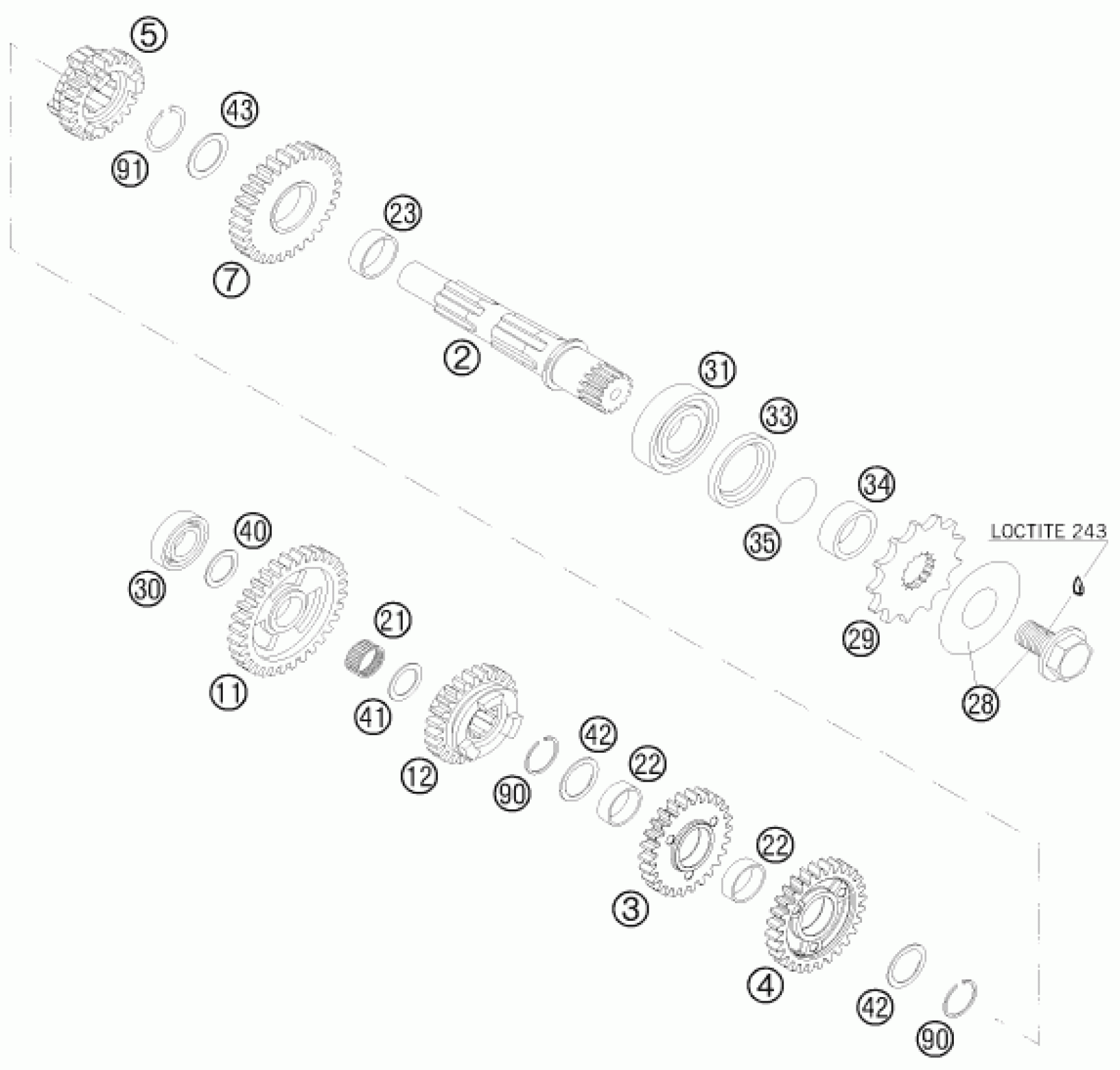

KTM 250 SXS-F 2008 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

2

COUNTER SHAFT 05

77033010000

$153.63

3

IDLER G. 4TH G.26-T 06

77033014000

$73.55

4

IDLER G. 3RD G.

SXS08250151

Unavailable

5

SLIDING G. 6TH G.24-T

77033016200

$107.62

7

IDLER G. 2ND G. 30-T 06

77033012000

$63.61

11

IDLER G. 1ST G. 32-T 06

77033011000

$71.99

12

SLIDING G. 5TH G.25-T 08

77033015200

$128.27

21

NEEDLE BEARING K20X24X10

50033098000

$12.05

22

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$11.68

23

IDLER GEAR BUSHING 25X28X9,7 D

50333023000

$28.23

28

SCREW 10.9+SPRING WASHER

59033034044

$7.85

29

FRONT SPROCKET 13-T

50033029013

Unavailable

29

FRONT SPROCKET 14-T

50033029014

Unavailable

29

FRONT SPROCKET 15-T

50033029015

Unavailable

30

BALL BEARING 6003 TN9 C4

0625060031

$23.46

31

BALL BEARING 6205 C3 NTN

0625062054

$20.66

33

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

$5.23

34

SPACER BUSHING 12MM

54633014100

$20.94

35

O-RING 25,12X1,78 NBR70

0770020220

$3.08

40

STOP DISC 17,2X30X1

56033030000

$4.11

41

Shim 20x31.9x1

59033080000

$2.05

42

STOP DISC 25,2X32X1

50333043000

$3.08

43

Shim ring DIN0988-25X35X1

0988253510

$2.05

90

AXIAL-CIRCLIP 25X1,65

77033022000

$2.05

91

CIRCLIP DIN0471-25X1,2

0471250120

$2.05
