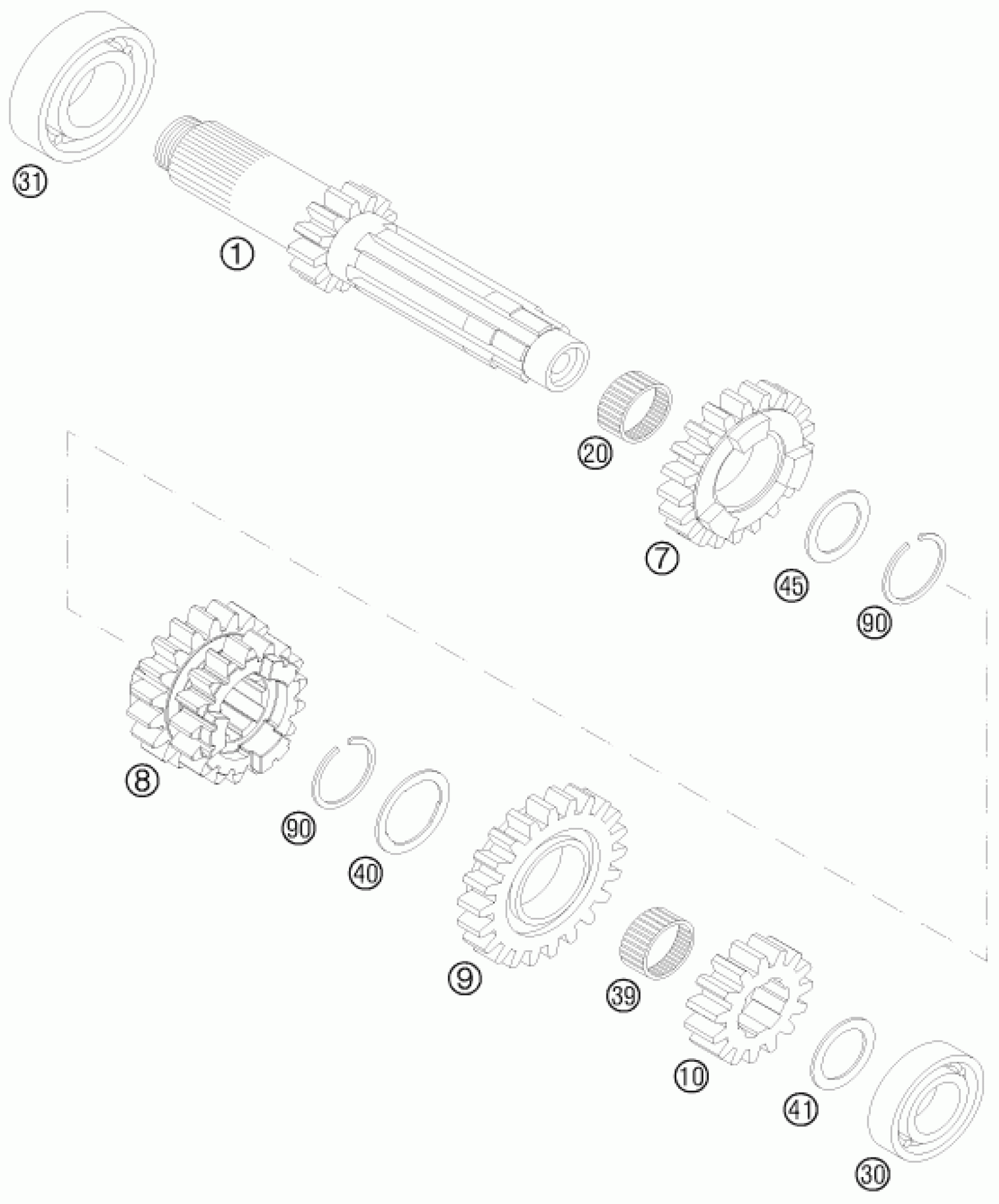

KTM 250 SXS-F 2008 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

MAIN SHAFT CPL. T=13 05

77033001000

$116.60

7

IDLER G.5TH G.21-T 06

77033005000

$68.06

8

SLIDING GEAR 3/4 GEAR

SXS08250150

Unavailable

9

IDLER G.6TH G.22-T 06

77033006000

$55.42

10

SOLID GEAR 2ND G.15-T 05

77033002000

$58.43

20

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$11.68

30

GROOVED BALL BEARING 16003 Z

0625160032

$20.56

31

BALL BEARING 6004 TN9 C4

0625060042

$16.35

39

NEEDLE CAGE K18X22X10 PARTED

50133099000

$12.99

40

STOP DISC 05

77033021000

$3.08

41

STOP DISK 17,2X24X1

50333030000

$5.23

45

STOP GEAR 22X28.5X1 05

77033020000

$3.08

90

LOCK RING 22X1,2

50133090000

$2.05
