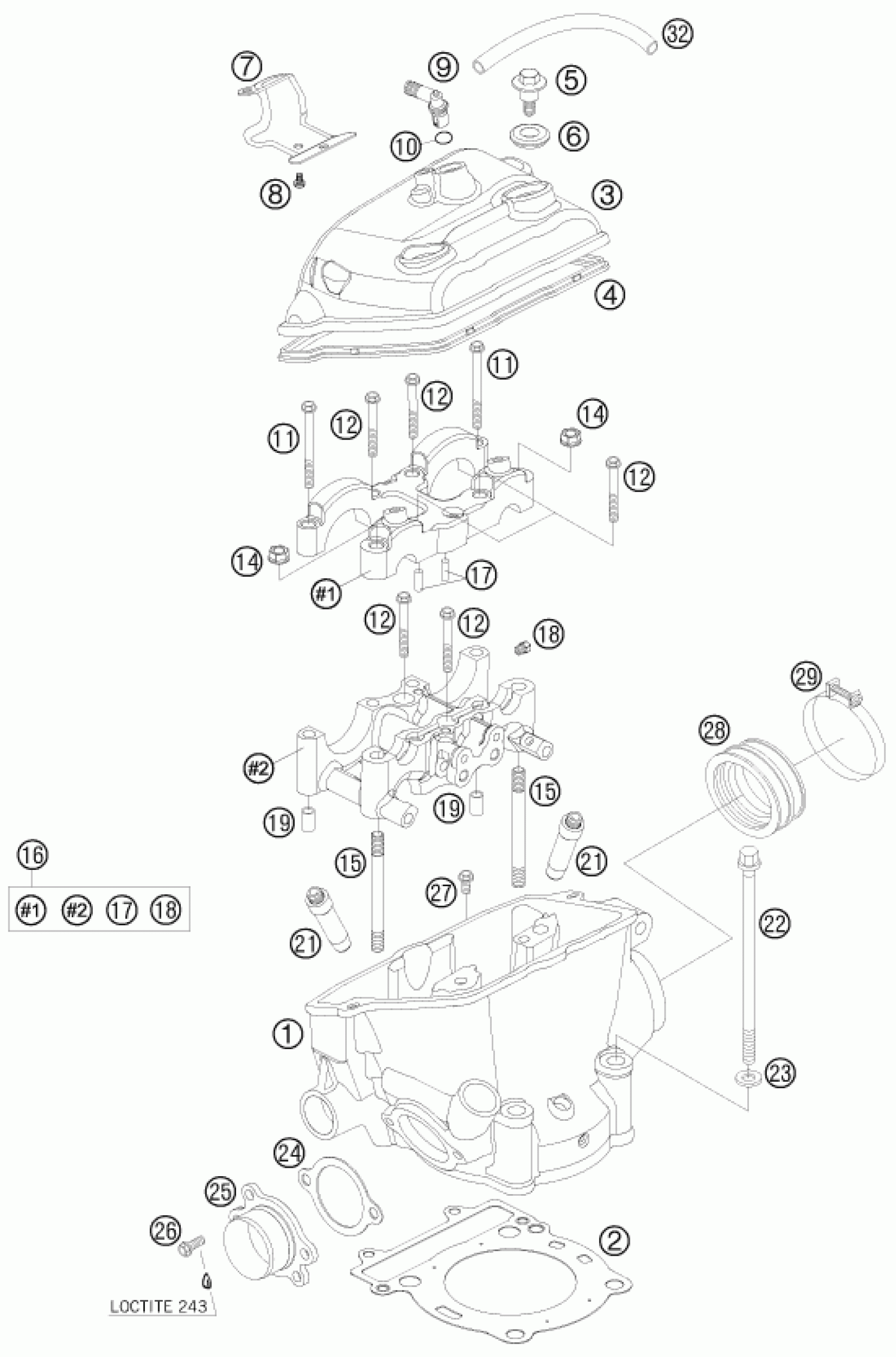

KTM 250 SXS-F 2008 CYLINDER HEAD Diagram

#

Description
Price

2

CYLINDER HEAD GASKET 05

77030036000

$42.63

3

VALVE COVER 06

77036052100

$35.55

4

VALVE COVER GASKET 05

77036053000

$10.93

5

VALVE COVER SCR. M6X12 WS10 07

77036055100

$3.08

6

RUBBER GASKET FOR SCREW 05

77036054050

$4.11

7

COVER PLATE BREATHER 05

77036052050

$18.22

8

SPECIAL SCREW M 5,0X10

0009050103

$2.05

9

ANGLE CONNECTOR LC8 03

60038082000

$2.05

10

O-RING 8X2 SILICONE

0770080020

$1.49

11

SPECIAL SCREW M7X73 WS 10

77036081000

$21.59

12

SPECIAL SCREW M7X40 WS10

77036080000

$3.08

14

COLLAR NUT 7X1 05

77036024000

$5.23

15

STUD 7X1 05

77036023000

$5.79

16

BUSH SUPPORT A.BRIDGE CPL '05

77036020150

$322.55

17

needle roller DIN 5402 5x9.8

0402050980

$1.49

18

oil jet 50 M5

60030063050

$9.44

19

DOWEL(BUSH BRIDGE)7/9/8 05

77036090000

$5.23

1

CYLINDER HEAD

SXS08250003

Unavailable

21

VALVE GUIDE OUTLET

77036026001

$34.12

22

CYLINDER HEAD SCREW 05

77036079000

$10.84

23

WASHER 10,8X18,8X1,5

59036090000

$1.49

24

GASKET EXHAUST FLANGE 06

77036041000

$7.00

25

EXHAUST FLANGE CPL. 06

SXS06250506

Unavailable

26

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

27

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

28

INTAKE BOOT 06

77036044000

$29.82

29

CLAMP D=56MM B=9MM M4X25

59030061000

$5.23

32

ENGINE BREATHER TUBE 00

59031050100

$14.58
