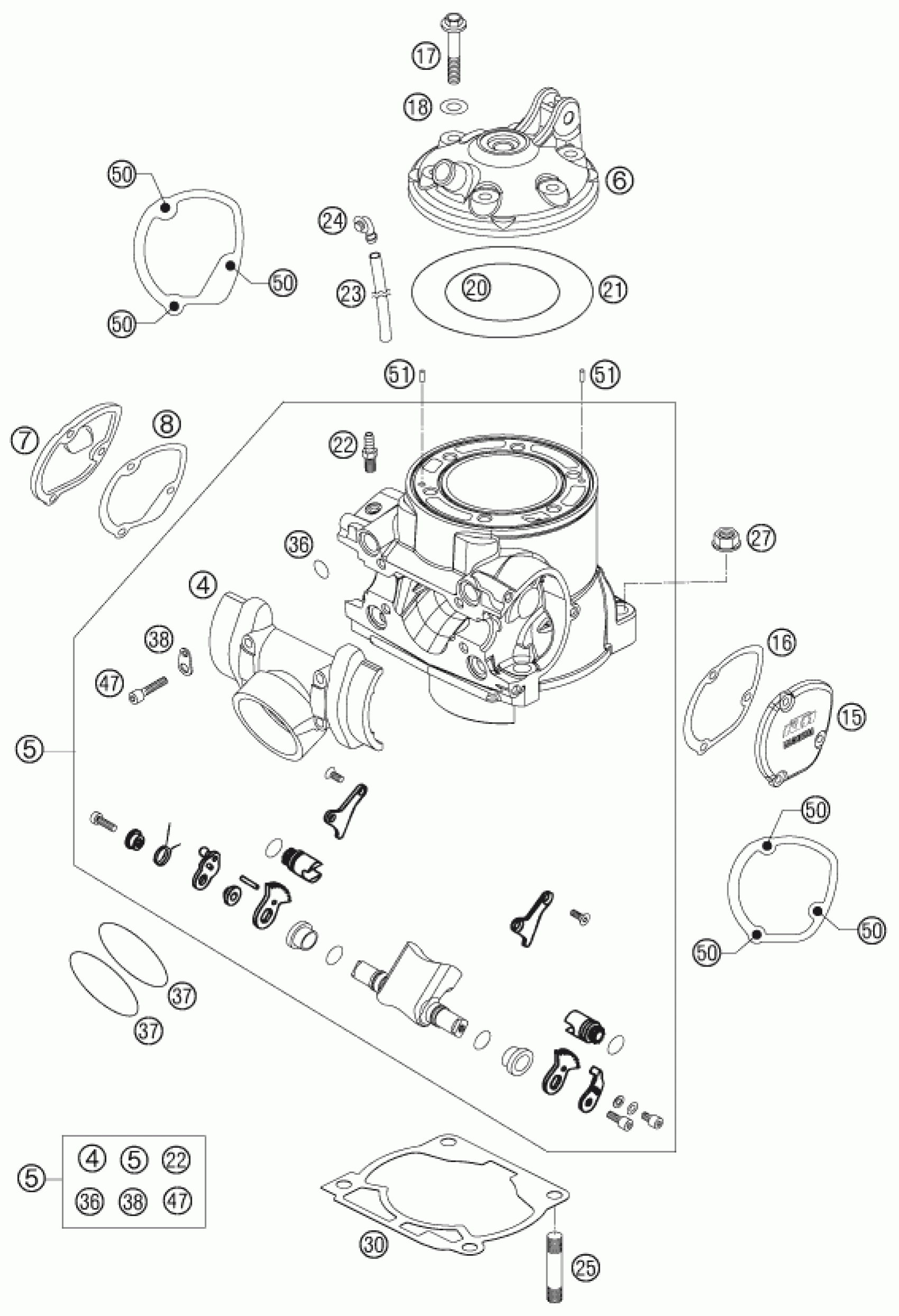

KTM 250 SXS 2007 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

4

INTERMEDIATE FLANGE 250/300 07

54837001200

$233.74

5

CYLINDER CPL. 250 SXS 07

SXS07250001

Unavailable

6

CYLINDERHEAD 250 SX 07

54830006400

$180.45

7

CONTROL COVER R/S 07

54837007000

$38.42

8

GASKET FOR CONTROL COVER R/S

54837008000

$6.91

15

CONTROL COVER L/S 07

54837005000

$24.58

16

GASKET FOR CONTROL COVER L/S

54837006000

$6.91

17

COLLAR SCREW M 8X35 WS=13

54830079000

$4.11

18

CU-SEAL RING 8 X 16 X 1

56530080000

$2.05

20

O-RING 73,00X2,00 VITON

0770730020

$5.23

21

O-ring 105x2

0770105020

$5.32

22

VACUUM CONNECTION M 6X1

58336020090

$6.63

23

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

24

ANGLE PIECE '97

50303089000

$5.23

25

STUD DIN0835-M10X35

0835100351

$5.23

27

COLLAR NUT M10 WS=13

54630044000

$1.49

30

GASKET CYLINDER BASE 0,2MM 03

54830030002

Unavailable

30

GASKET CYLINDER BASE 0,4MM 03

54830030004

Unavailable

30

GASKET CYLINDER BASE 0,5MM 03

54830030005

Unavailable

30

GASKET CYLINDER BASE 0,75MM 03

54830030075

Unavailable

36

O-RING 11,3 X2,4 SILICON

0770116241

$3.08

37

O-RING 44,00X3,00 VITON

0770440030

$4.11

38

RETAINING PLATE

51005074000

$3.08

47

AH SCREW DIN0912-M 6X30

0912060303

$2.05

50

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

51

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08
