Partiron

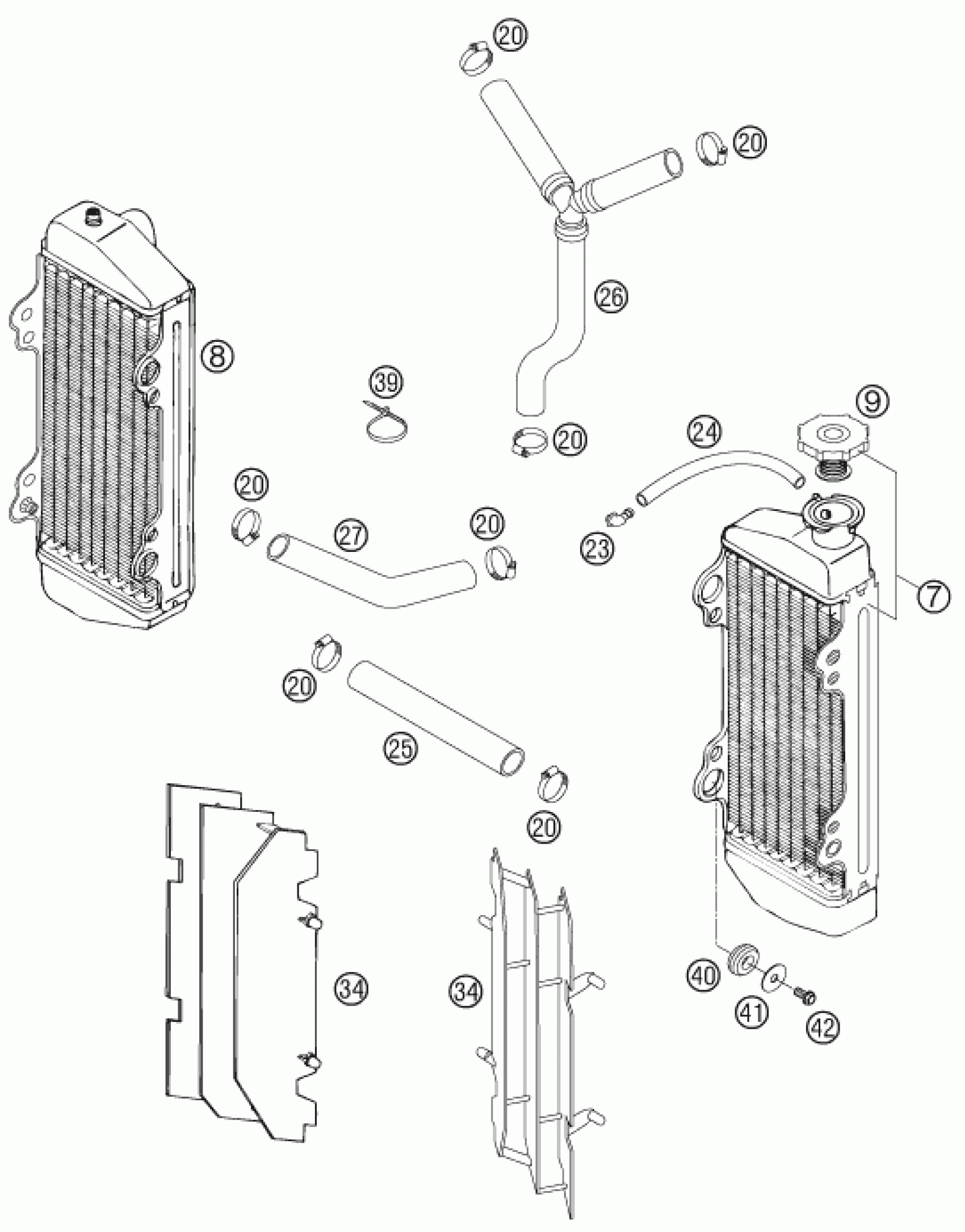

KTM 250 SXS 2006 COOLING SYSTEM Diagram

#

Description
Price

7

FACTORY WIDE RADIATOR LEFT

SXS00125600

Unavailable

8

FACTORY WIDE RADIATOR RT

SXS00125601

Unavailable

9

RADIAT.CAP 20,3PSI (1,4BAR) 03

59035009000

$15.98

20

HOSE CLAMP GEMI 18-29

10001020000

$2.05

23

ANGLE PIECE '97

50303089000

$5.23

24

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

25

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

26

RADIATOR HOSE INCL. Y-PART 03

50335026200

$27.88

27

RADIATOR HOSE 18X25 125/200'98

50335027000

$16.45

34

RADIATOR PROTECTION ORANGE 03

5903504000004

Unavailable

39

Cable tie 200/4.6mm black

44011076200

Unavailable

40

RUBBER SLEEVE D=12MM

41001052000

$4.11

41

Washer DIN9021-A 6.4

0021060003

$2.05

42

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08
