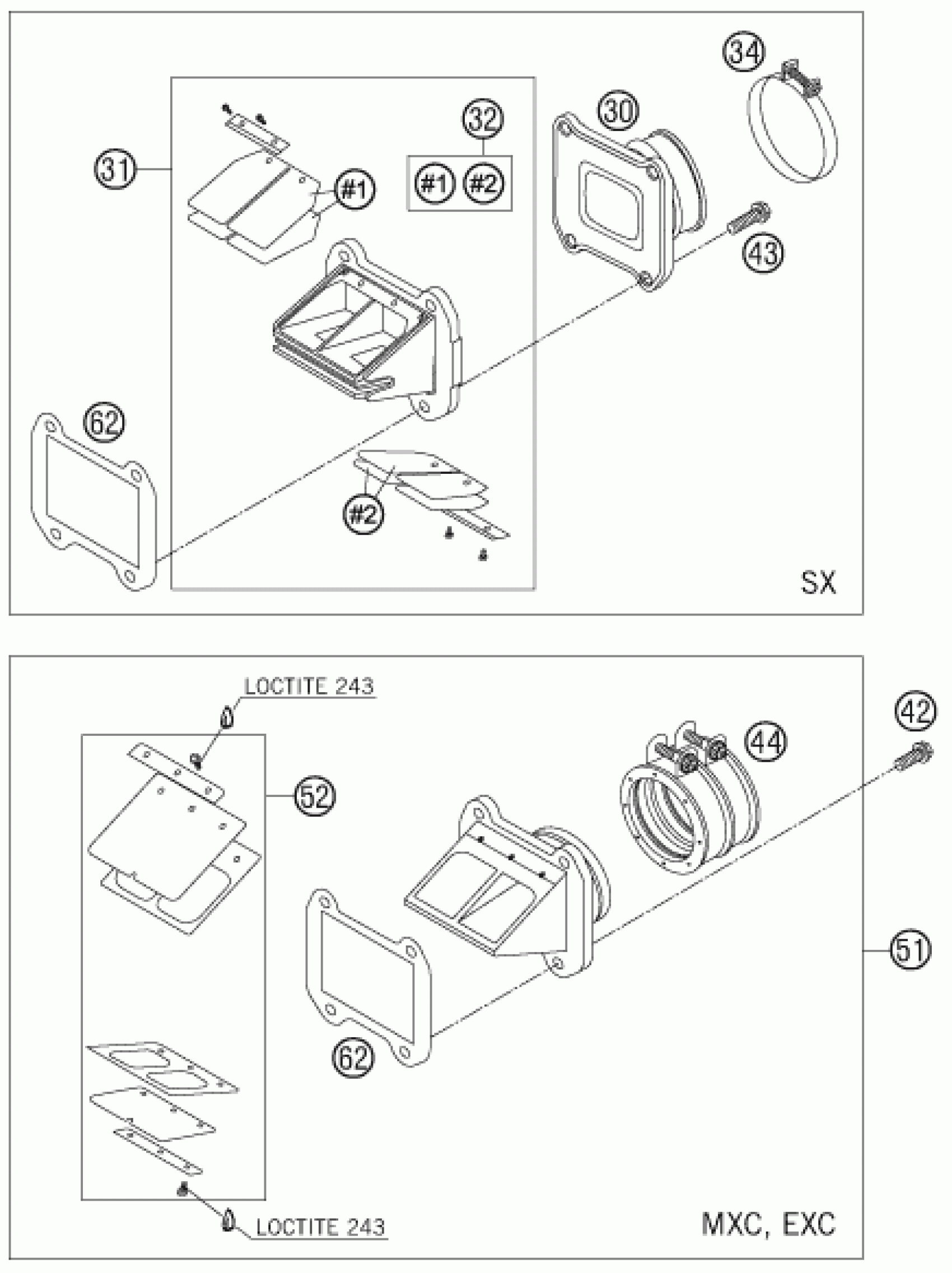

KTM 250 SXS 2005 REED VALVE CASE Diagram

#

Description

Price

30

INTAKE FLANGE V-FORCE 04

54830050000

$43.10

31

REED VLV ASSY V-FORCE CPL.04

54830051144

$269.09

32

REED VALVE SET V-FORCE 250 04

54830052000

$85.22

34

Hose clip GEMI 52mm

54330061000

$7.47

42

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

43

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

44

rubber boot with clamp

54736044044

Unavailable

51

REED VLV ASSY BOYESEN CPL.03

54830051044

$258.49

52

REED VALVE CPL. BOYESEN 02

54730052000

$92.22

62

GASKET REED VALVE CASE 04

54830062100

$5.23
