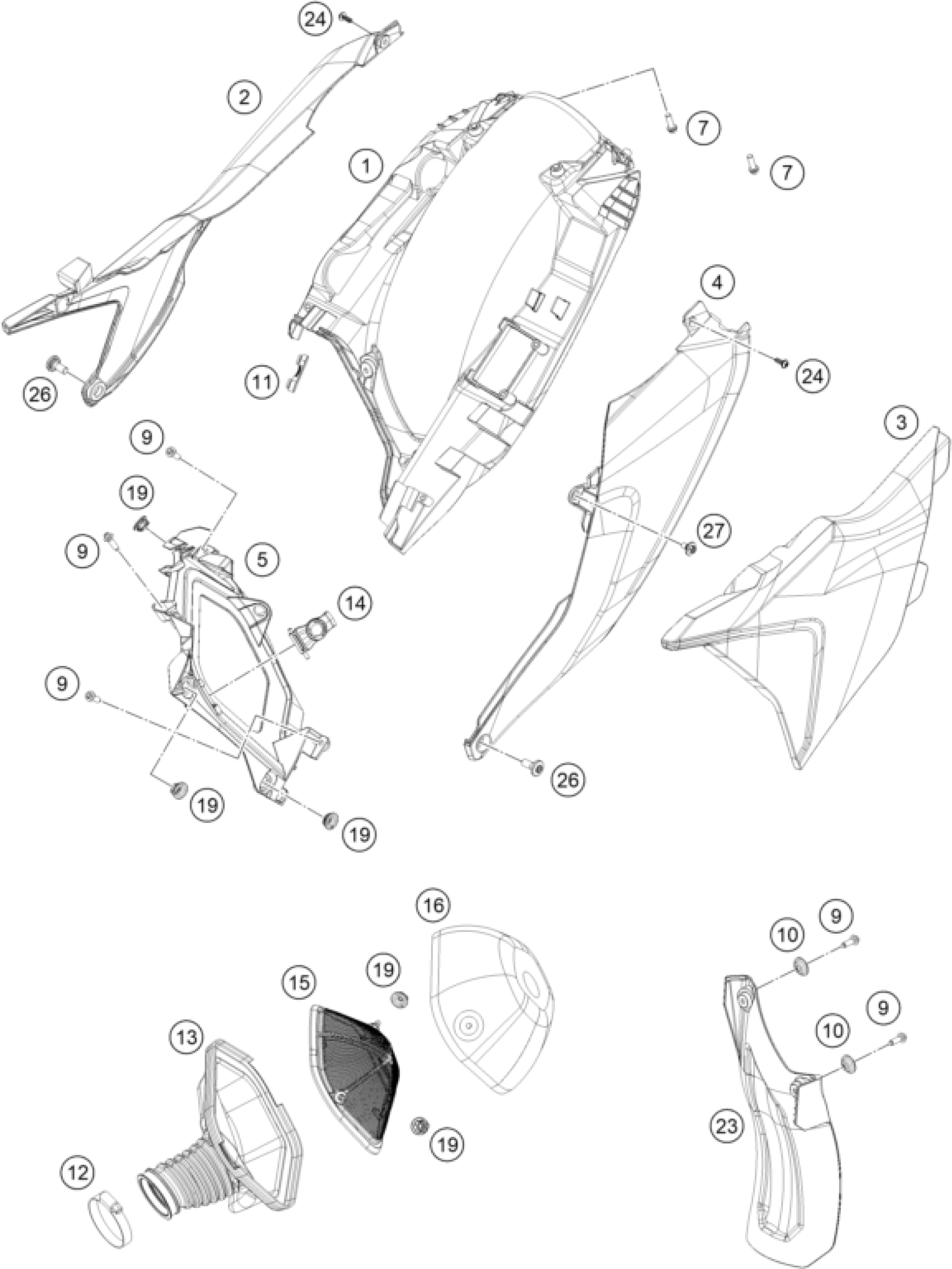

KTM 250 SX-F FACTORY EDITION 2024 AIR FILTER Diagram

#

Description
Price

1

Lower section of the air filte

A46006001000EB

$39.09

2

Air filter box lid right

A46006004000C1B

Unavailable

3

Air filter box cover

A46006003000C1B

Unavailable

4

Air filter box lid left

A46006005000C1B

Unavailable

5

Air filter box front part

A46006001010EB

$16.99

7

HH collar screw M6x20 TX30

0025060206

$3.08

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

10

Chain slider bushing

77304066150

$1.49

11

exhaust spacer

79105098000

$5.51

12

HOSE CLAMP 45-65MM

78006027000

$5.23

13

Air boot

A46006026100

$52.73

14

Air filter holding bracket

A46006017000

$9.34

15

Air filter support

A46006016000

$15.89

16

Air filter

A46006015000

$31.27

19

quick release rubber grommet

47106003160

$4.11

23

Splash protection

A46004050000

$11.64

24

EJOT PT screw K50x14

0081050141

$1.49

26

Special screw M8X18 TORX45 SL

79003003000

$3.08

27

special screw M6x12x3

83008000012

$3.08
