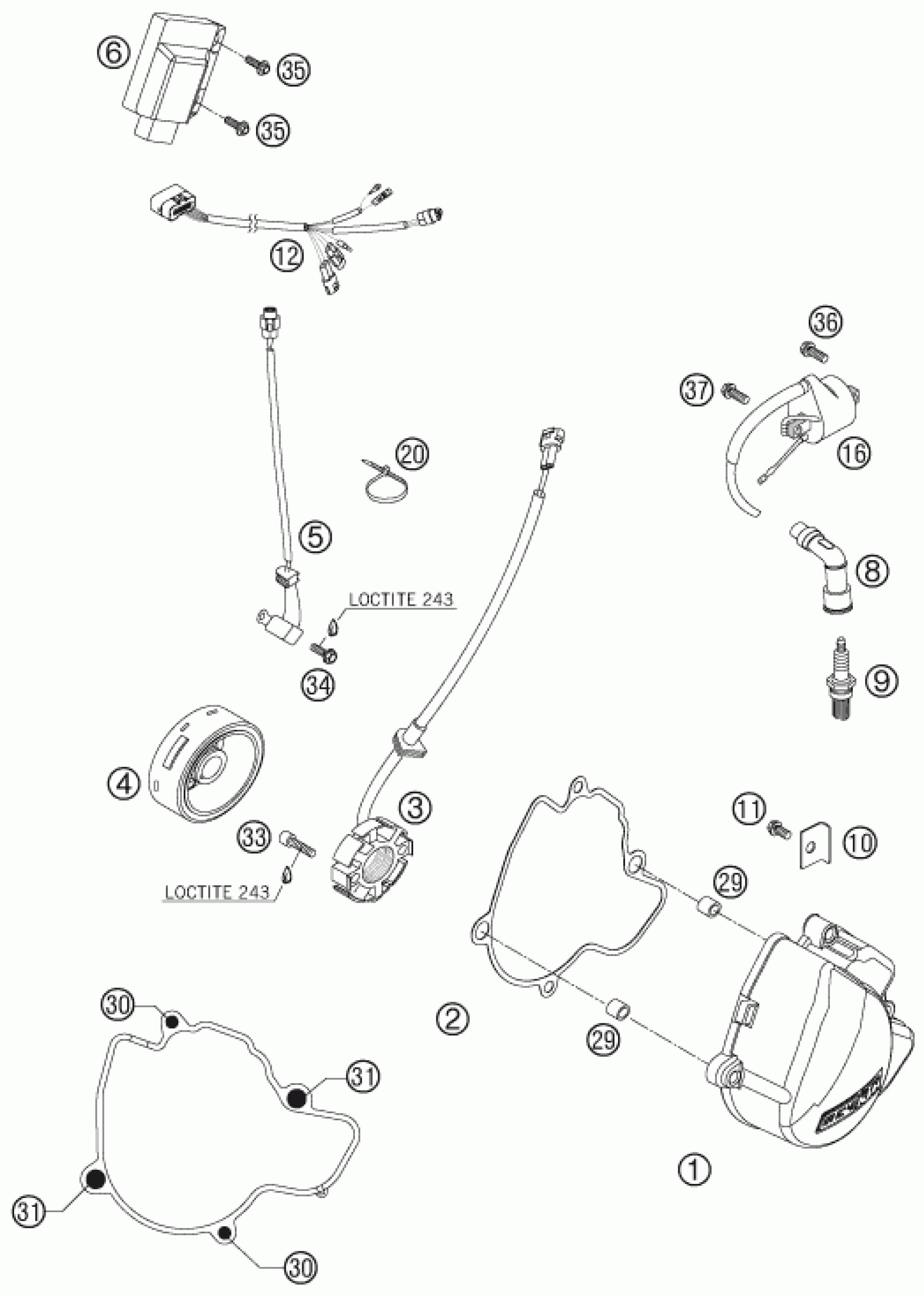

KTM 250 SX-F 2010 IGNITION SYSTEM Diagram

#

Description
Price

1

IGNITION COVER 09

7703000230015

$47.38

2

IGNITION COVER GASKET 05

77030040000

$4.11

3

STATOR 4K3-A 05

77039004000

$236.18

4

FLYWHEEL 05

77039005000

$312.76

5

pulse generator KOKUSAN 4K3-A/

59039034000

$89.28

6

DIGITALBOX 250 SX-F 09

77039031700

$311.53

8

SPARK PLUG CONNECT. VD05EG03

59039090100

$37.56

9

SPARK PLUG NGK CR9EKB ´05

77039093000

$13.46

10

WIRE RETAINING BRACKET 06

77030002050

$3.10

11

HH collar screw M6x8 TX30

0025060086

$2.05

12

WIRING HARNESS FOR CDI EXC 04

59439032100

$88.54

16

IGNITIONCOIL ''IG5128''

59039006000

$66.19

20

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

29

DOWEL 9,8 X 7 X 10

49030090000

$2.05

30

HH collar screw M6x25 TX30

0025060256

$3.08

31

HH collar screw M6x30 TX30

0025060306

$3.08

33

AH SCREW DIN0912-M 5X25

0912050253

$1.49

34

HH collar screw M5x16 TX30

0025050166

$2.05

35

COLLAR SCREW M6X12 TX

0023060123

$2.05

36

HH collar screw M6x16 TX30

0025060166

$3.08

37

HH collar screw M6x20 TX30

0025060206

$3.08
