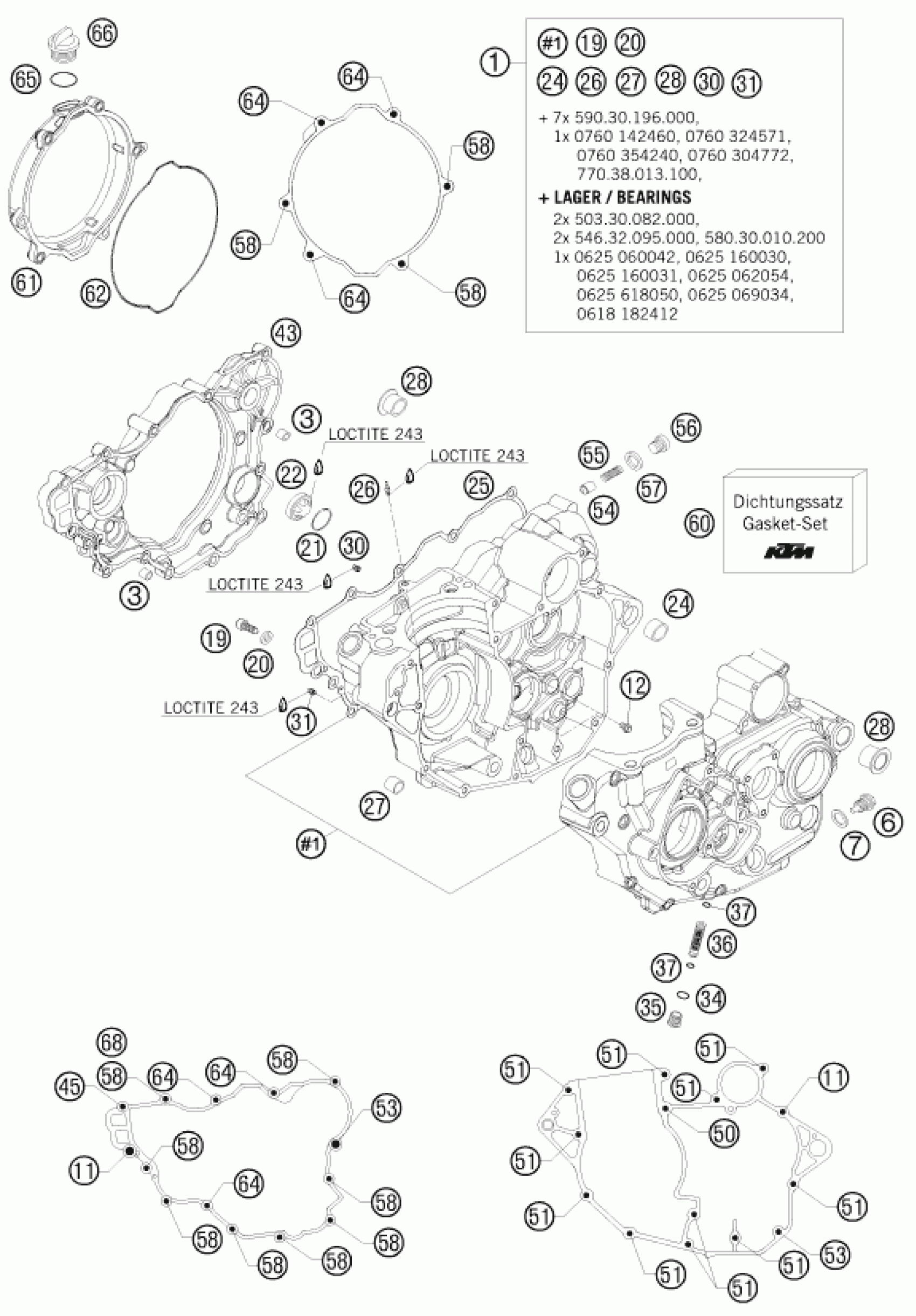

KTM 250 SX-F 2010 ENGINE CASE Diagram

#

Description
Price

20

CU-SEAL RING 8 X 14 X 3

58030081000

$2.05

21

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

22

OIL LEVEL GLASS G 1777 Y

59030019000

$21.31

24

DOWEL 17 X 19 X 12

59030024000

$5.23

25

GASKET FOR CLUTCH COVER 05

77030025100

$17.66

26

OIL JET 70 M6X0,75 WS8 03

60030064070

$11.49

27

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

28

CASE BUSH

75030010000

$8.59

30

JET 100 BING(44-031/180) M4

59030058000

$4.11

34

O-RING 12,00X2,00 NBR 70

0770120020

$2.05

35

SCREW PLUG

77038017000

$16.82

36

OIL SCREEN 11,8x44,5MM

59038015100

$12.61

37

O-RING 9X1,5 NBR

0770090015

$2.05

43

CLUTCH COVER CPL.

7703000124415

$104.07

45

HH collar screw M6x35 TX30

0025060356

$3.08

50

HH COLLAR SCREW M6X65 TX30

0025060656

$2.05

51

HH collar screw M6x50 TX30

0025060506

$3.08

53

HH collar screw M6x30 TX30

0025060306

$3.08

54

VALVE PISTON D=10MM

58038028000

$37.77

55

PRESSURE SPRING L=25MM D=1MM

58038023300

$5.23

56

threaded plug DIN 908 M12x1.5

0908120153

$4.11

57

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

58

HH collar screw M6x25 TX30

0025060256

$3.08

60

GASKET SET 05

77030099000

$276.00

61

CLUTCH COVER OUTSIDE 09

7703002630015

$78.01

62

MOLDED RING 05

77030027000

$18.69

64

HH collar screw M6x55 TX30

0025060556

$3.08

65

O-RING 19,00X3,00 NBR

0770191015

$2.05

66

OIL FILLER CAP M24x3 W. O-R

58030120000

$8.03

68

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

1

ENGINE CASE CPL. 250 SX-F 07

77030000144

$830.49

6

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

7

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

11

HH collar screw M6x40 TX30

0025060406

$3.08

12

HH collar screw M6x8 TX30

0025060086

$2.05

19

LOCATING SCREW M8 L=23

58030080000

$17.66

3

DOWEL 9,8 X 7 X 10

49030090000

$2.05

31

JET 44-031/150

77030058150

$4.11
