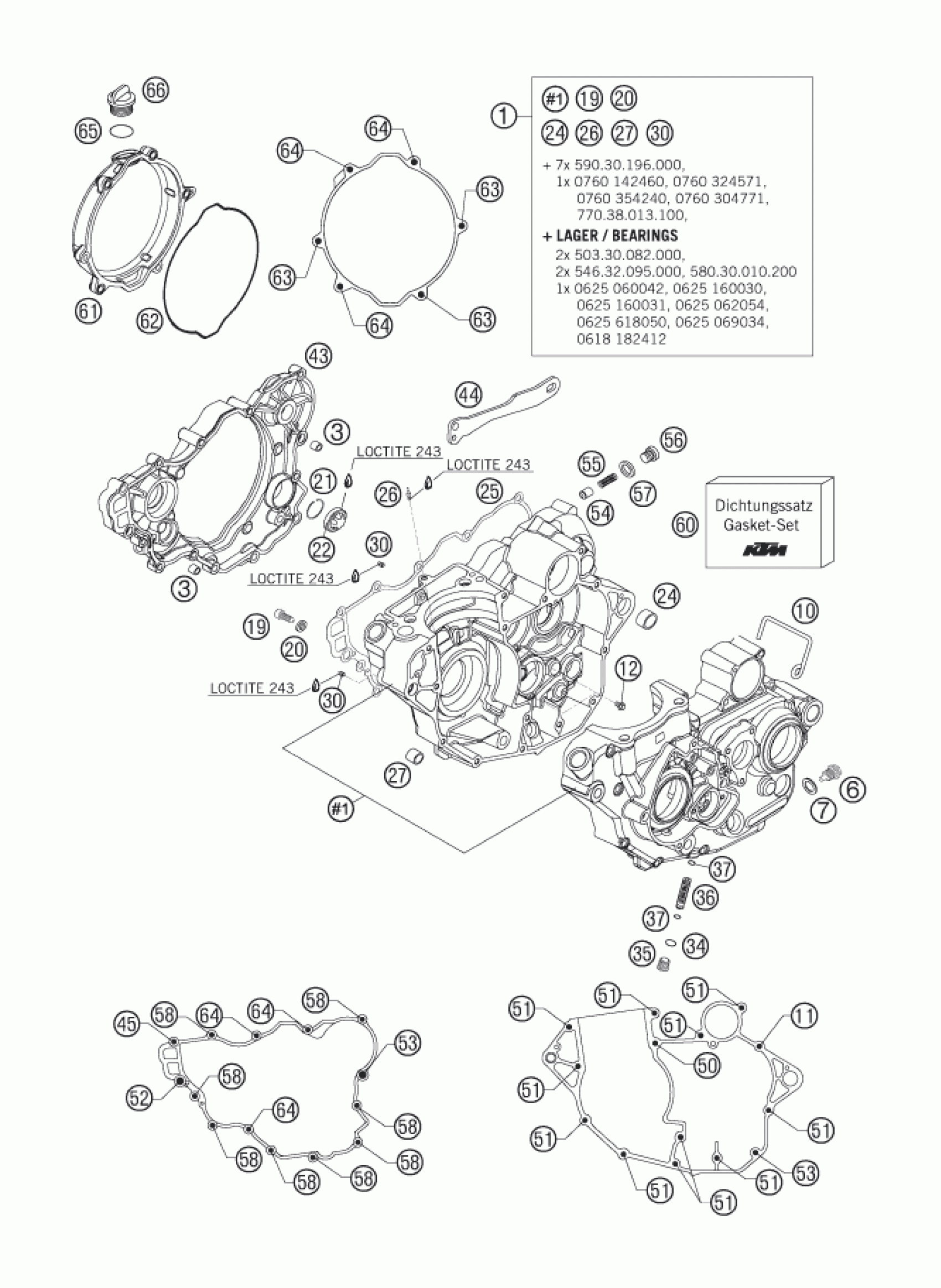

KTM 250 SX-F 2005 ENGINE CASE Diagram

#

Description
Price

11

HH COLLAR SCREW M 6X45 WS=8

0015060453

$2.05

19

LOCATING SCREW M8 L=23

58030080000

$17.66

20

CU-SEAL RING 8 X 14 X 3

58030081000

$2.05

21

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

22

OIL LEVEL GLASS G 1777 Y

59030019000

$21.31

24

DOWEL 17 X 19 X 12

59030024000

$5.23

12

HH COLLAR SCREW M 6X8 WS=8

0015060083

$2.05

25

GASKET FOR CLUTCH COVER 05

77030025100

$17.66

26

OIL JET 70 M6X0,75 WS8 03

60030064070

$11.49

27

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

30

JET 100 BING(44-031/180) M4

59030058000

$4.11

34

O-RING 12,00X2,00 NBR 70

0770120020

$2.05

35

PLUG M16X1,5

59038014100

$16.82

36

OIL SCREEN 11,8X44,5MM

59038015000

$12.61

37

O-RING 9X1,5 NBR

0770090015

$2.05

43

CLUTCH COVER 2005

77030001000

$125.96

44

CHAIN DAMPERSHEET SXF 2005

77030047000

$25.98

45

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

50

HH COLLAR SCREW M 6X65 WS=8

0015060653

$2.05

51

HH COLLAR SCREW M 6X50 WS=8

0015060503

$3.08

52

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

53

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

54

VALVE PISTON D=10MM

58038028000

$37.77

55

PRESSURE SPRING L=25MM D=1MM

58038023300

$5.23

56

threaded plug DIN 908 M12x1.5

0908120153

$4.11

57

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

58

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

60

GASKET SET 05

77030099000

$276.00

61

CLUTCH COVER OUTSIDE 05

77030026000

$58.29

62

MOLDED RING 05

77030027000

$18.69

63

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

64

HH COLLAR SCREW M 6X55 WS=8

0015060553

$1.49

65

O-RING 19,00X3,00 NBR

0770191015

$2.05

66

PLUG M 24X3

58030020000

$5.23

1

ENG CASE CPL. W.TR.BEAR. 05

77030000044

Unavailable

3

DOWEL 9,8 X 7 X 10

49030090000

$2.05

6

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

7

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

10

BRACKET FOR BREATH HOSE

77030090000

$2.67
