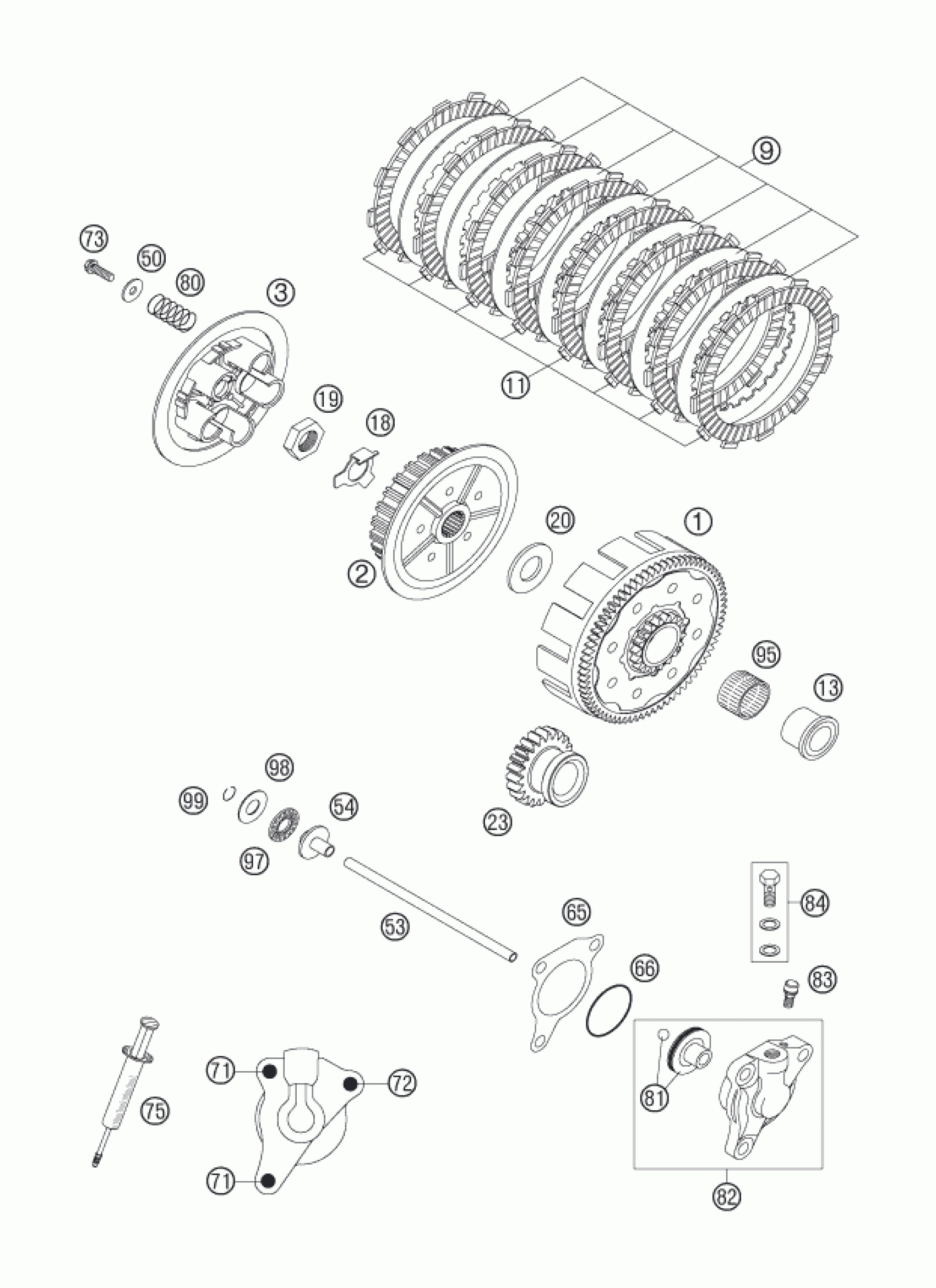

KTM 250 SX-F 2005 CLUTCH Diagram

#

Description
Price

1

OUTER CLUTCH CPL. 05

77032001000

$406.33

2

INNER CLUTCH HUB 05

77032002000

$129.77

3

PRESSURE PLATE 05

77032003000

$105.09

9

INTERMEDI. DISC STEEL 05

77032010000

$11.77

11

LINING DISC 3,0MM 05

77032011000

$36.27

13

INNER RING 20X26X25,9 '98

50332013000

$30.19

18

SHEET METAL LOCK 1,5MM '98

50332018000

$6.26

19

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

20

STOP DISK 20X39,6X3 '98

50332020000

$16.35

23

PRIMARY GEAR 22T. 05

77032000122

$107.42

50

WASHER 6,2X18X2

50232050000

$5.23

53

PUSH ROD 05

77032054000

$10.84

54

PRESSURE PIECE 125-380 '98

50332054051

$26.45

65

GASKET FOR SLAVE CYLINDER

59032065000

$5.60

66

O-ring 30x1.5 NBR 70

0770300015

$2.05

71

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

72

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

75

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

80

CLUTCH SPRING

77032005000

$3.08

81

PISTON + O-RING + BALL 27MM

59032066000

$240.75

82

OUTPUT CYLINDER CPL. 27MM 03

59032061044

$240.75

83

BLEEDER SCREW WITH CAP

54732064000

$21.96

84

HOLLOW SCREW + COPPER GASKET

59032062000

$25.05

95

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

97

AXIAL NEEDLE BEARING AXK 1226

54637097200

$10.18

98

AXIAL WASHER AS1226 12X26X1

54637098200

$5.23

99

CIRCLIP DIN7993-RW12

0993012000

$3.08

73

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08
