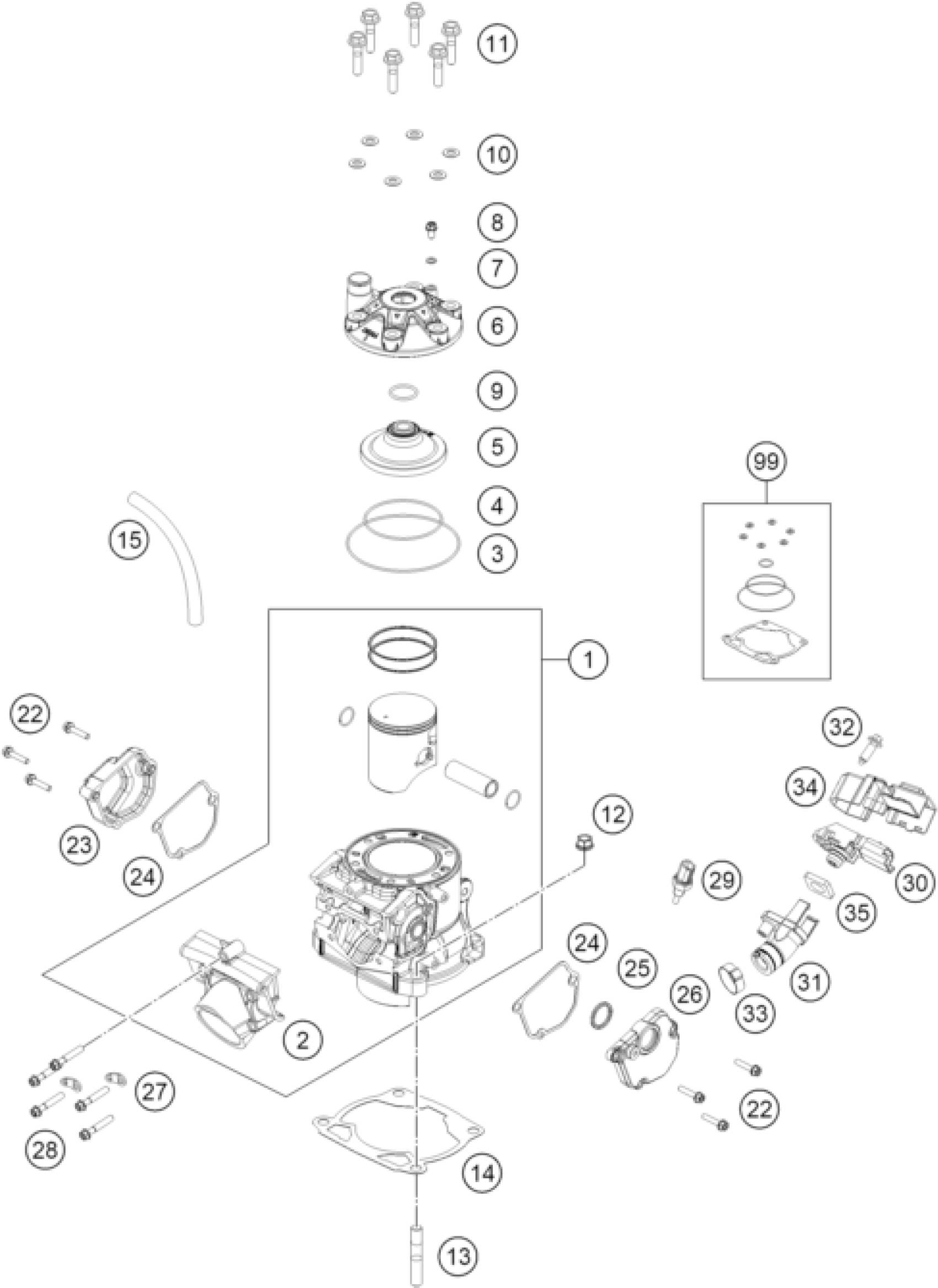

KTM 250 SX 2026 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

1

Cylinder + Piston MX 250 2023

A44030238000

$1,052.61

2

Intermediate flange

A44037201000

$184.65

3

O-Ring 107x2

0770107020

$3.08

4

O-RING 73,00X2,00 VITON

0770730020

$5.23

5

Combustion chamber insert KTM

A44030060000

$57.68

6

Cylinder head

A45030006100

$30.85

7

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

8

HH collar screw M6x10 TX30

0025060106

$3.08

9

O-ring 23x2,5 Viton 75SH

0770023025

$1.49

10

CU-SEAL RING 8 X 16 X 1

56530080000

$2.05

11

COLLAR SCREW M 8X35 WS=13

54830079000

$4.11

12

Collar nut M10-SW13 ZnNi

55530044000

$1.49

13

Stud bolt M10x30

0835100300

$2.05

14

Cylinder base gasket

A44030035020

Unavailable

14

Cylinder base gasket

A44030035025

Unavailable

14

Cylinder base gasket

A44030035030

Unavailable

14

Cylinder base gasket

A44030035040

Unavailable

14

Cylinder base gasket

A44030035050

Unavailable

14

Cylinder base gasket

A44030035070

Unavailable

14

Cylinder base gasket

A44030035080

Unavailable

15

Engine vent hose

A42030087000

Unavailable

22

HH COLLAR SCREW M5X25 ISA30

0025050256

$1.49

23

exhaust control cover right

A44037007000

$12.80

24

Control cover seal, left

A44037006000

$5.23

25

X-ring 21.89x2.62 FKM 70

0770002226200

$2.05

26

exhaust control cover left

A44037005000

$19.44

27

Retaining cap

51005174000

Unavailable

28

HH collar screw M6x35 TX30

0025060356

$3.08

29

water temperature sensor

79435047000

$23.74

30

crank case pressure sensor

A45041075000

$50.01

31

Pressure sensor flange

A44041087000

$12.05

32

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

33

VARIABLE ONE-EAR CLAMP 21,0MM

00050210706

$2.05

34

Pressure sensor cover

A45041075060

$1.77

99

Sealkit cylinder MX 250/300

A44030097000

Unavailable

35

Pressure sensor EPDM plate

A45041075050

$5.79
