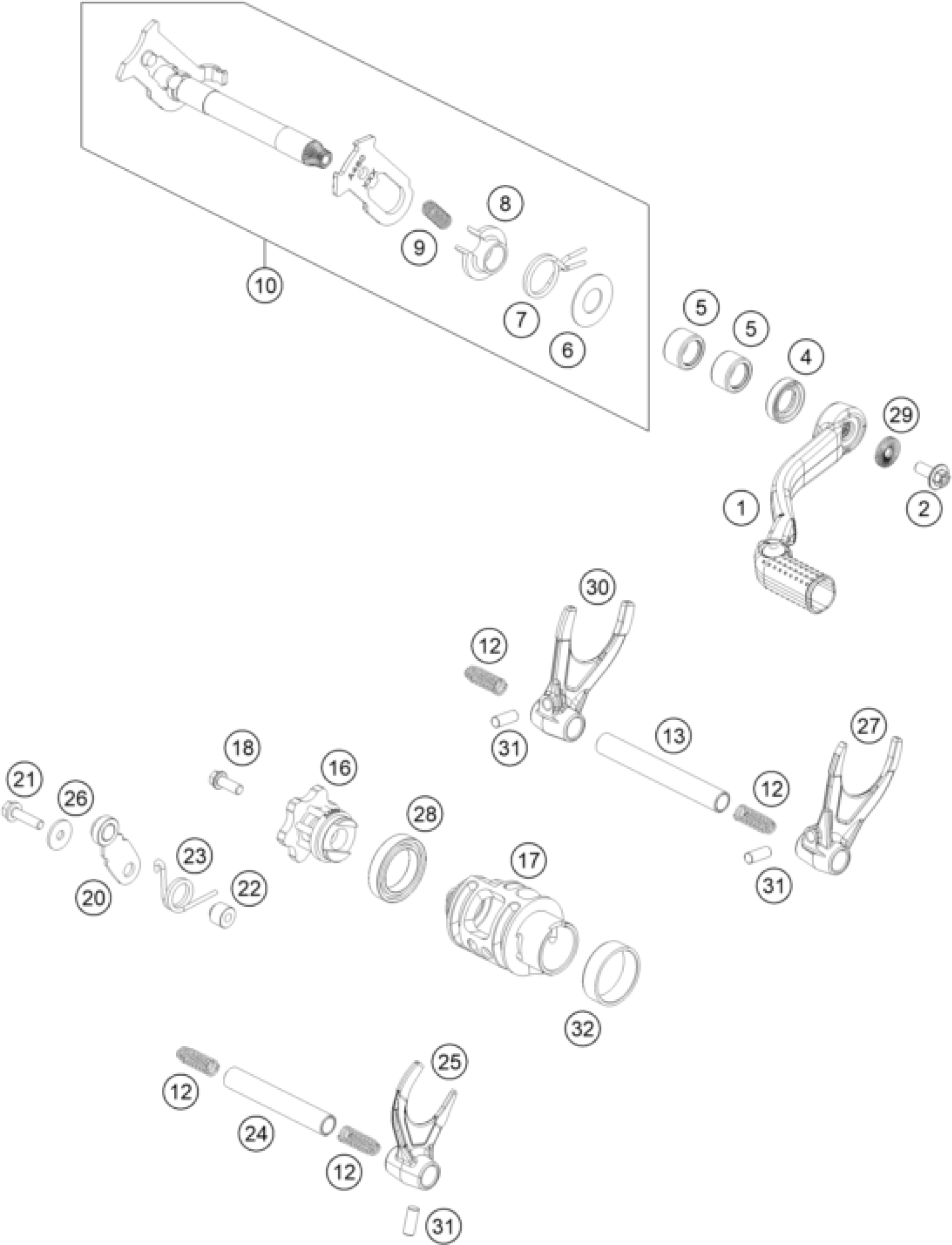

KTM 250 SX 2024 SHIFTING MECHANISM Diagram

#

Description
Price

1

Gear shift lever cmpl.

A42034031000

$77.04

2

HH collar screw M6x15 TX30

0024060156S

$2.05

4

radial shaft seal 14x24x6 B

0760142460

$9.25

5

needle sleeve HK 1412 14x20x12

54632095000

$7.00

6

STOP DISK 14X30X1

54634050000

$2.05

7

RETURN SPRING 03

54834014000

$4.11

8

SPRING GUIDE

54634020000

$6.44

9

TENSIONING SPRING 0,8MM

56534013100

$1.49

10

Shift shaft cpl.

A46034005033

$38.05

12

Compression spring L=25mm D=0.

58038023400

$1.49

13

Shift fork shaft (L=66 mm)

A46034020000

$7.85

16

Shift star cmpl.

A46034015000

$21.03

17

Shift drum 5 gear

A47034012000

$57.12

18

HH collar screw M6x30 TX30

0025060306S

$3.08

20

Detent arm cmpl.

A46034024044

$11.59

21

Hex collar screw, M5x20 ISA30

0025050206S

$1.49

22

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

23

LOCKING LEVER SPRING 03

54834023000

$3.08

24

Shift fork shaft (L=93 mm)

A46034019000

$8.31

25

SHIFTING FORK 4TH/5TH GEAR

79234001000

$77.69

26

WASHER DIN7349-5X15X2

0349000050

$1.49

27

SHIFTING FORK 2ND GEAR

79234002000

$77.78

28

Grooved ball bearing 6805 JR C

0410002500700

$43.94

29

PAIR NORDLOCK WASHER M6

50233041500

$4.11

30

SHIFTING FORK 1ST/3RD GEAR

79234003000

$77.78

31

NEEDLE ROLLER DIN5402 6X14,8

0402061480

$4.11

32

FRICTION BEARING CONTROLLER

79234012010

$22.99
