FRONT FORK DISASSEMBLED

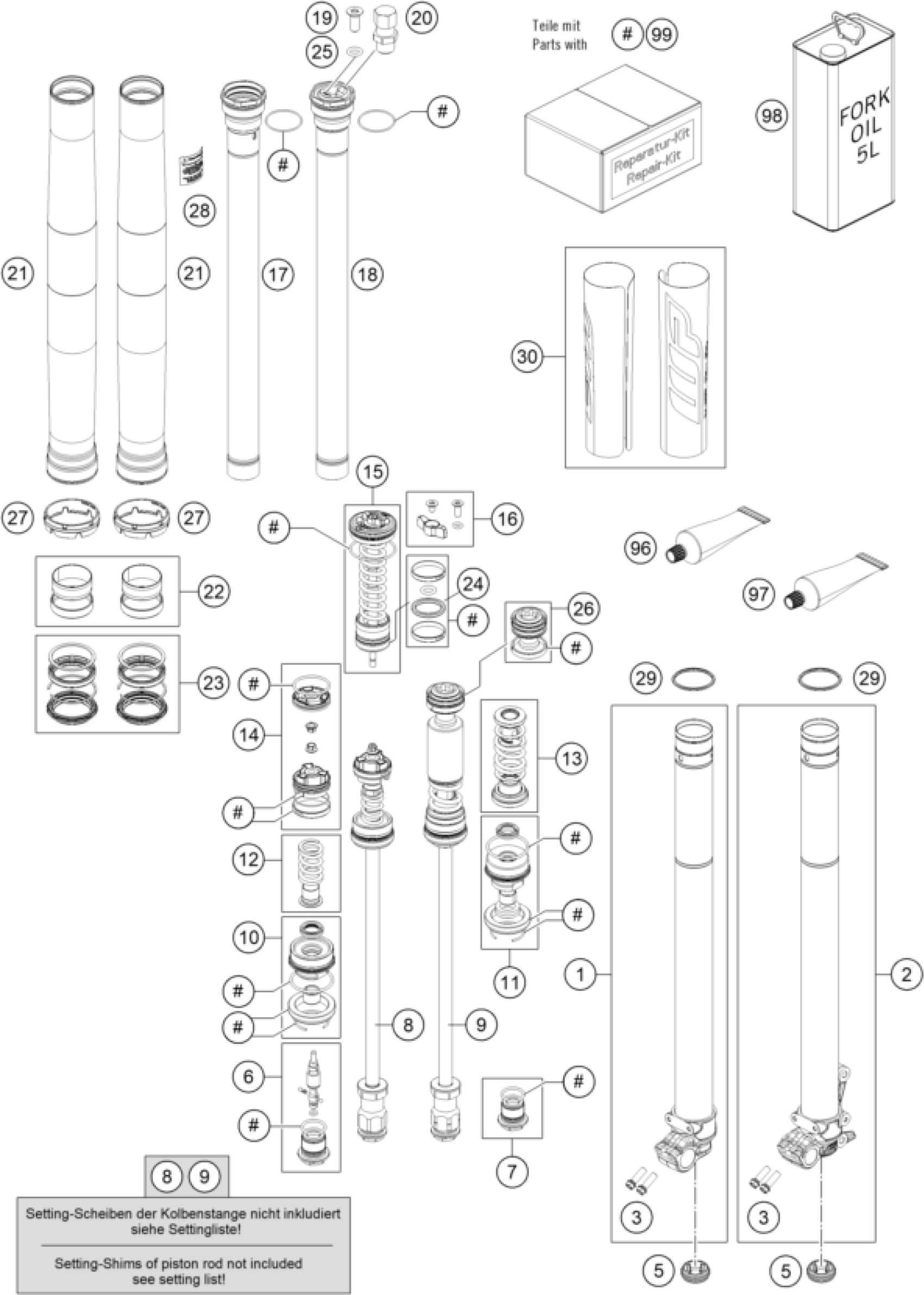

KTM 250 SX 2020 FRONT FORK DISASSEMBLED Diagram
#
Description
Price
1
FORK LEG R/S + TUBE CPL.
48601408S2
$485.91
2
FORK LEG L/S + TUBE CPL.
48601407S2
$485.91
3
HH collar screw M8x25
0025080256
$2.05
5
Rubber cap 26,4x11
48600692
$3.08
6
Adjustment screw slot M20x1 cp
48601484S
$42.35
7
HH collar screw M20x1x18 cpl.
48601533S
$21.31
8
Pistonrod D12 M9x1 L385 cpl.
48601574S4
$276.10
9
piston rod le. cmpl. M12x1
48601501S1
$341.45
10
SCREW SLEEVE OIL CPL.
48601462S1
$69.37
11
Screw sleeve M35,5x0,8
48601452S1
$47.86
12
Spring (13,9) 37-32 rebound cp
48600578S
$4.11
13
Spring (22) 60-30 rebound cpl.
48601820S
$25.89
14
Repair kit piston air fork
RP10024
Unavailable
15
Basevalve cpl.
48602049S1
$205.60
16
Adjuster kit screw cap compres
RP10025
Unavailable
17
screw cap M51x1,5 cpl.
48602048S1
$227.20
18
screw cap M51x1,5 cpl.
48602047S1
$101.25
19
ISA countersunk head screw M4x
00600003
$1.49
20
Schrader valve M8x1 cmpl.
48601494S
$24.98
21
Fork outer tube 49,13x577 dt54
48601671
$257.40
22
Guide bushing set fork 48mm
R14047
Unavailable
23
Sealkit 48mm SKF black
RP10012
Unavailable
24
X-ring 26,57x3,53 FKM80
04100002
$5.23
25
O-ring 4x1,5 NBR70
50180222
$1.49
26
Piston 34x35.4 mainpiston Freu
48601628S
$51.98
27
Fork protection ring 60,1mm
48601948
$2.05
28
Sticker warning 40x40
52000158
$2.05
29
Stroke indicator 48mm red
48602007
$4.11
30
Sticker set XACT 5 AER CC 182.
52000235SET
$37.77
96
Fuchs grease IPR (250g)
T14034
Unavailable
97
special grease AER Fork 400g
00062010053
Unavailable
98
Fork Fluid Viscosity 4.0 5L
48601166S1
Unavailable
99
SEALING KIT
R14060
Unavailable
