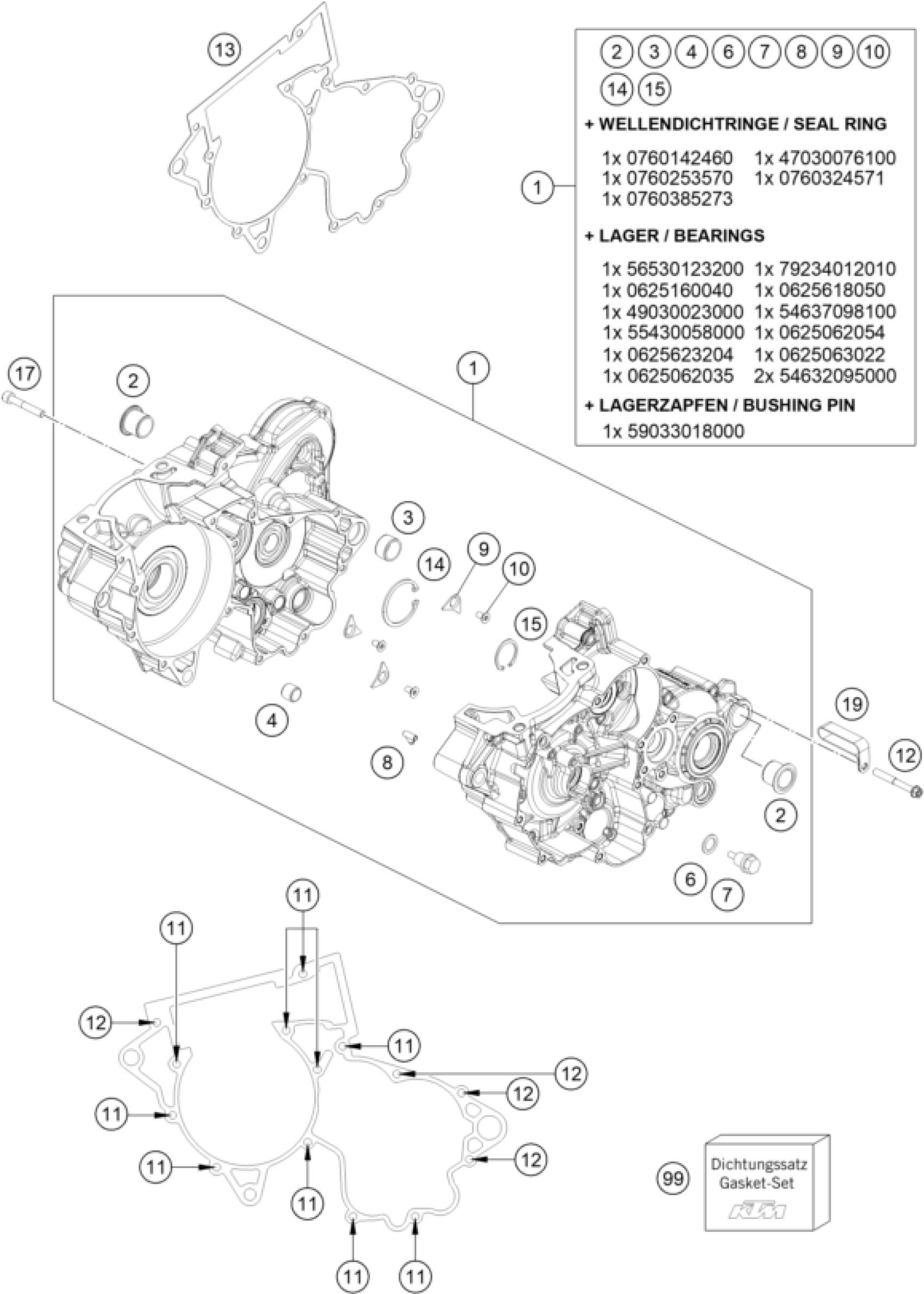

KTM 250 SX 2020 ENGINE CASE Diagram

#

Description
Price

1

Engine case cmpl.

55530000044

$1,033.17

2

CASE BUSH

75030010100

$12.33

3

DOWEL 21X12 03

54830027000

$5.23

4

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

6

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

7

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

8

ANGLE PIECE 50CCM LC 2001

45130022000

$5.88

9

RETAINING PLATE F. CS BEARING

75030085000

$1.49

10

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

11

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

12

HH collar screw M6x60 TX30

0025060606

$3.08

13

ENGINE CASE GASKET

55430039000

$35.33

14

CIRCLIP DIN0472-42X1,75

0472042175

$2.05

15

CIRCLIP DIN0472-28X1,2

55430059100

$1.49

17

AH SCREW DIN0912 M 6X40

0912060406

$1.49

19

Bracket for bleeding tube

55430090000

$8.87

99

Seal Kit Engine 250/300

55430199001

Unavailable
