Description

Price

1

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

2

WASHER 8MM GALVANIZED

54633037000

$6.07

3

KICK STARTER CPL.

79233070044

$127.81

4

KICK STARTER SHAFT

79233050000

$88.91

5

Kick-starter spring

50433054200

$5.23

6

NEEDLE BEAR K 25X29X10

0405252910

$8.87

7

STOP DISC 25X31X1,5

54833044000

$5.23

8

KICK STARTER WHEEL 27Z

79233051027

$101.81

9

CIRCLIP SW25

0417025000

$3.08

10

KICK STARTER RATCHET

50433052000

$51.79

12

RATCHET GEAR SPRING 1,2 MM

58033028000

$2.05

13

HH collar screw M6x20 TX30

0025060206

$3.08

14

BUMP PART

59033069000

$13.27

15

AH SCREW DIN0912 M 6X40

0912060406

$1.49

16

CIRCLIP DIN0471-17X1

0471170010

$2.05

17

STOP DISC 17,2X26X1 B

50333041000

$3.08

18

KICKSTART IDLER CPL.

79233053000

$73.94

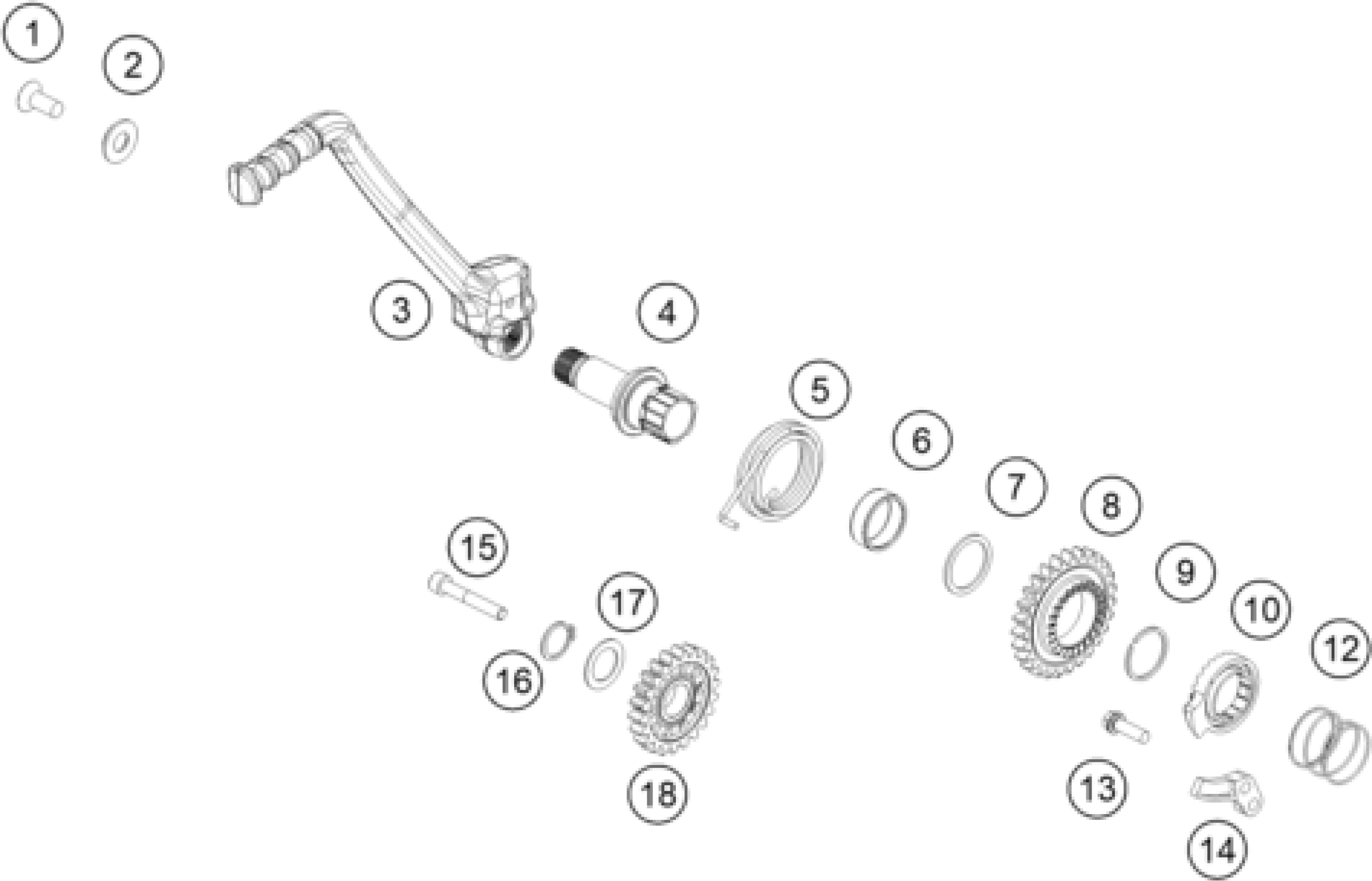

KTM 250 SX 2019 KICK STARTER Diagram

FLAT HEAD SCREW M. ISA45 M8X20

WASHER 8MM GALVANIZED

KICK STARTER CPL.

KICK STARTER SHAFT

Kick-starter spring

NEEDLE BEAR K 25X29X10

STOP DISC 25X31X1,5

KICK STARTER WHEEL 27Z

CIRCLIP SW25

KICK STARTER RATCHET

RATCHET GEAR SPRING 1,2 MM

HH collar screw M6x20 TX30

BUMP PART

AH SCREW DIN0912 M 6X40

CIRCLIP DIN0471-17X1

STOP DISC 17,2X26X1 B

KICKSTART IDLER CPL.
