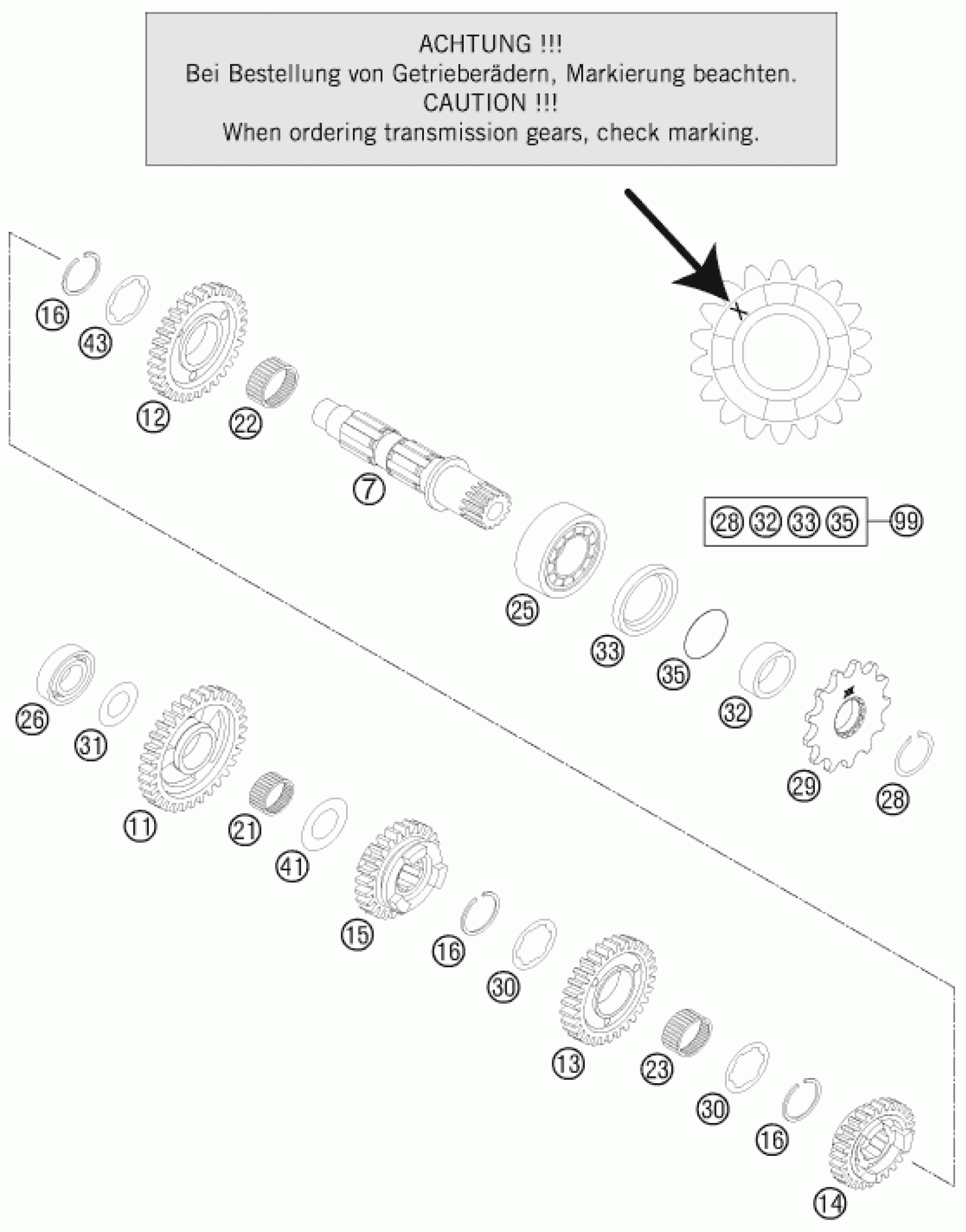

KTM 250 SX 2011 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

7

COUNTERSHAFT 2003

54833007000

$133.88

11

IDLER GEAR 1ST G. 28-T''1S28''

54833011000

$159.22

12

IDLER GEAR 2.G 24-Z ''2S24''

54833012200

$104.83

13

IDLER GEAR 3RD G. 24-T ''3S24'

54833013000

$133.51

14

SLIDING GEAR 4TH G.24-T ''4S24

54833014000

$183.72

15

SLIDING GEAR 5TH G.21-T ''5S21

54833015000

$152.58

16

AXIAL-CIRCLIP 25X1,65

77033022000

$2.05

21

NEEDLE BEAR. K20X24X13

0405202413

$10.84

22

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

$7.28

23

NEEDLE BEAR. K 22X26X13 TN

0405222613

$9.15

25

BALL BEARING TM-SC05C20C4 NTN

54833025000

$64.04

26

BALL BEARING 6203 JR2 C3

0625062035

$14.48

28

LOCK RING DIN0471-25X1,64SD

52033096000

$5.23

29

FRONT SPROCKET 13-T

50033029013

$30.94

29

FRONT SPROCKET 14-T

50033029014

Unavailable

30

STOP DISC 25,2X32X1,5

59033030000

$3.08

31

STOP DISC 17,2X30X1

56033030000

$4.11

32

spacer sleeve drive end

54833032011

$12.52

33

SHAFT SEAL RING 32X45X6,5

0760324565

$5.23

35

O-RING 25,00X2,00 NBR 70

0770250020

$3.08

41

Shim 20x31.9x1

59033080000

$2.05

43

STOP DISC 25,2X32X1

50333043000

$3.08

99

COUNTER SHAFT REP.KIT 2 STROKE

00050000940

Unavailable
