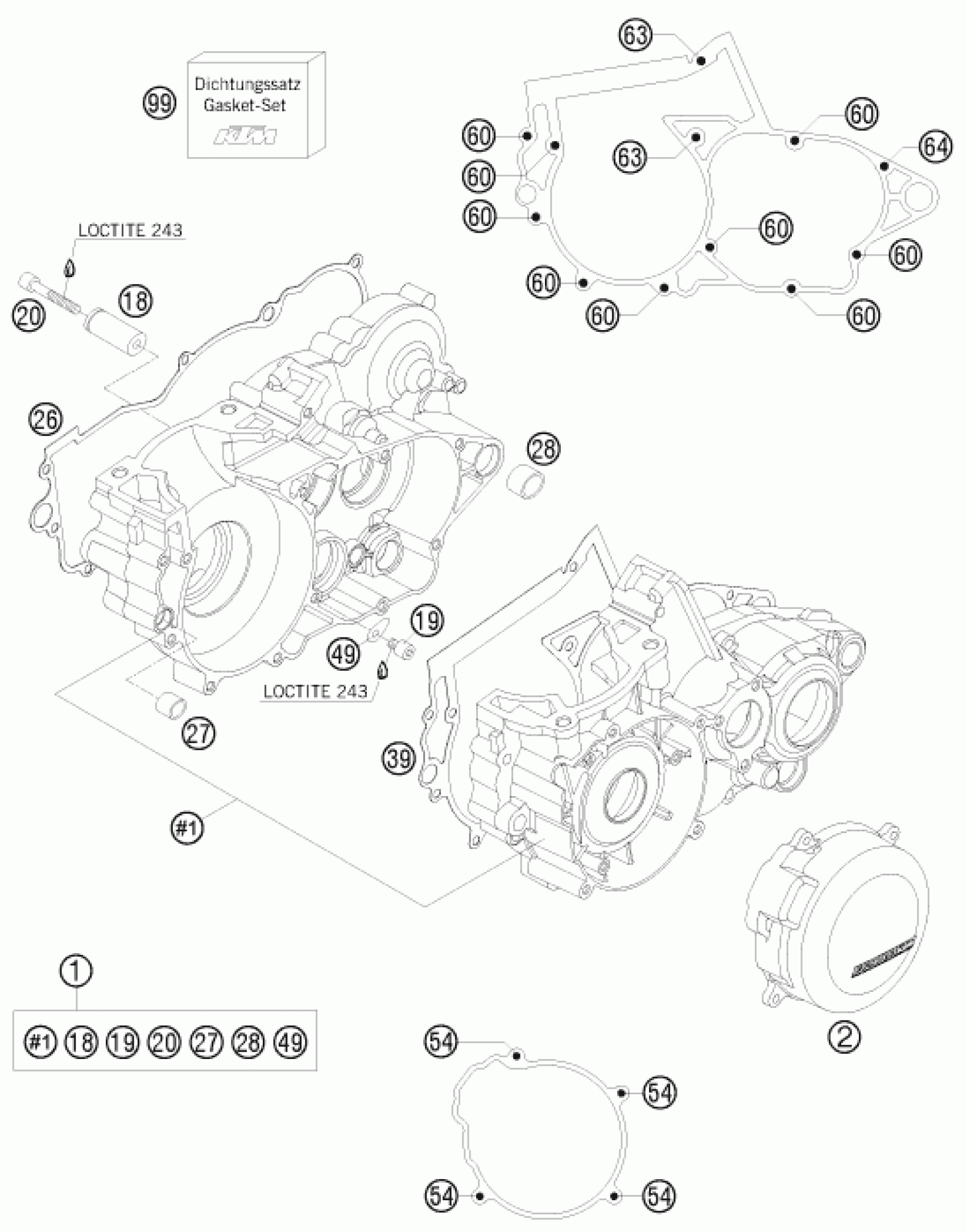

KTM 250 SX 2009 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL. WITH BEAR 08

54830000144

$940.32

2

IGNITION COVER

54830002400

$35.52

18

BUSHING PIN 2000

59033018000

$12.61

19

AH collar screw DIN 912 M6x8

0912060083

$2.05

20

AH SCREW DIN0912-M 6X40 A2

0912060404

$2.05

26

CLUTCH COVER GASKET 2003

54830024000

$26.55

27

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

28

DOWEL 21X12 03

54830027000

$5.23

39

ENGINE CASE GASKET 2003

54830039000

$16.07

49

RETAINING PLATE

54634049000

$4.11

54

HH collar screw M5x16 TX30

0025050166

$2.05

60

HH collar screw M6x40 TX30

0025060406

$3.08

63

HH collar screw M6x55 TX30

0025060556

$3.08

64

HH collar screw M6x60 TX30

0025060606

$3.08

99

GASKET SET 250 07

54830099100

$210.27
