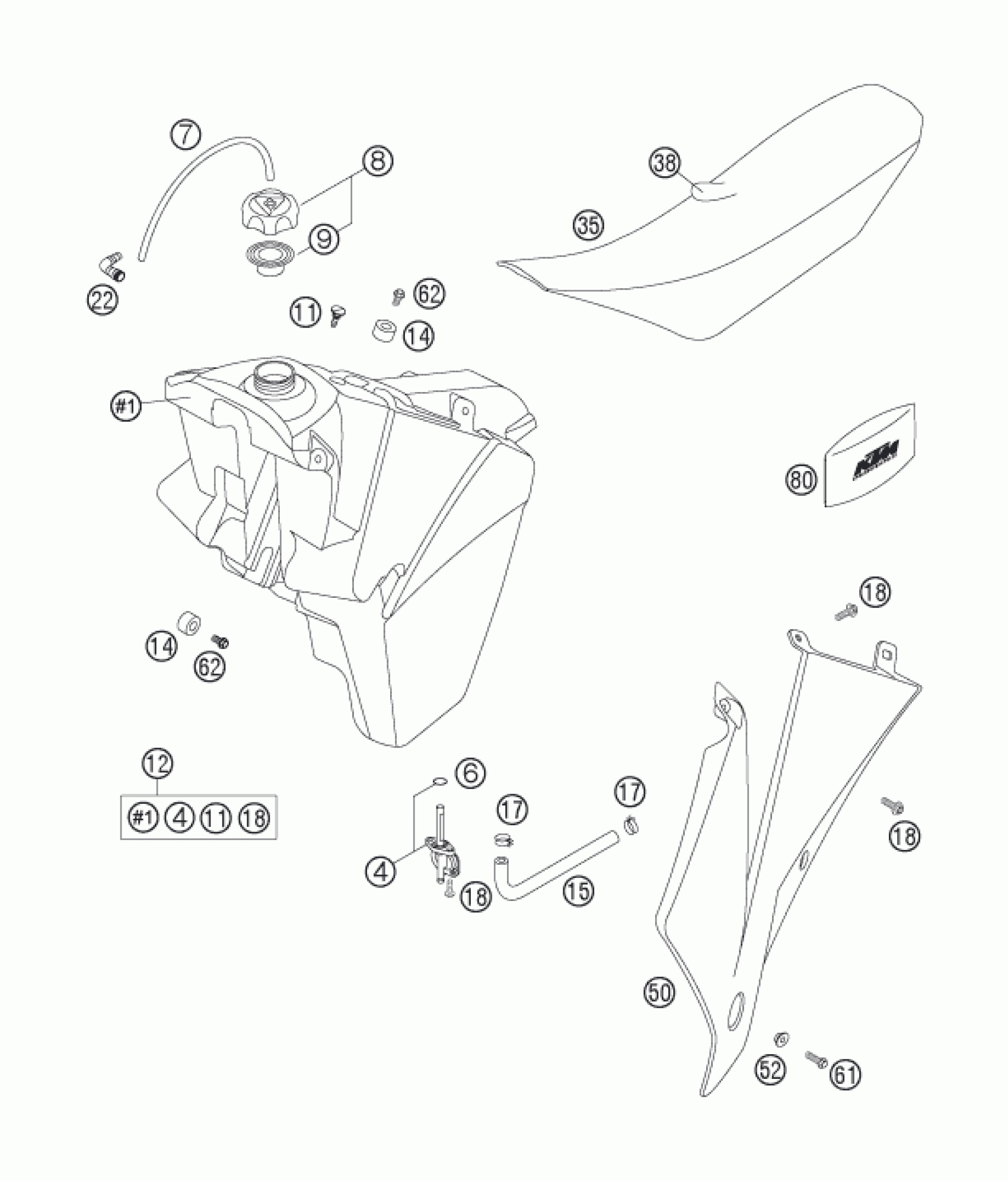

KTM 250 SX 2006 TANK, SEAT Diagram

GAS COCK MIKUNI ON/OFF 2001

50307005000

$96.39

FILLER CAP CPL. WITH VALVE

59007008044

$24.58

GASKET FOR FILLER CAP HIGH

59007009000

$8.03

SCREW SEAT FASTENING D=6X23/18

50307011000

$3.08

FUEL TANK CPL. 7,5L ORANGE 03

5480711300004

$296.27

TANK ROLLER 12X26X12 '98

50307014000

$11.02

CLAMP YDNAC 10128 12MM

58031005000

$3.08

FUEL PREFORMED HOSE SX 2001

50307016000

$8.87

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

O-RING 11X2 VITON

0770110021

$2.05

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

SEAT BLACK WITHOUT KTM-LOGO 05

54807040400

$151.37

SEAT COV.BLACK WITHOUT LOGO 05

54807040450

$51.04

SPOILER L/S ORANGE 05

5480805000004

$81.24

SPOILER R/S ORANGE 05

5480805100004

$81.24

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

ORIGINAL EQUIPMENT TOOL KIT

50212100100

Unavailable

ANGLE PIECE 90 DEGREE M10X1

51030022000

$5.23
