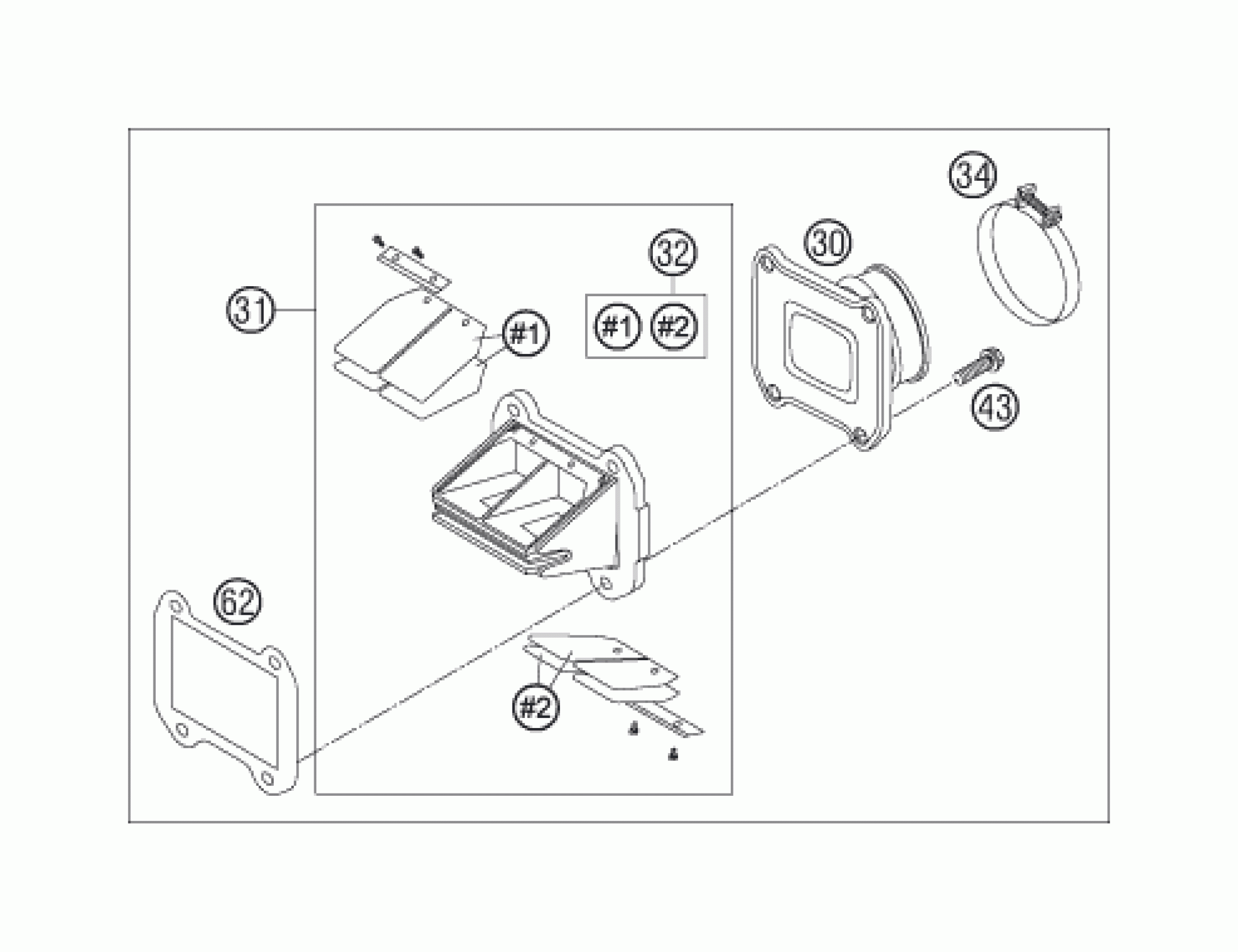

KTM 250 SX 2006 REED VALVE CASE Diagram

#

Description

Price

30

INTAKE FLANGE V-FORCE 04

54830050000

$43.10

31

REED VLV ASSY V-FORCE CPL.04

54830051144

$269.09

32

REED VALVE SET V-FORCE 250 04

54830052000

$85.22

34

Hose clip GEMI 52mm

54330061000

$7.47

43

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

62

GASKET REED VALVE CASE 04

54830062100

$5.23
