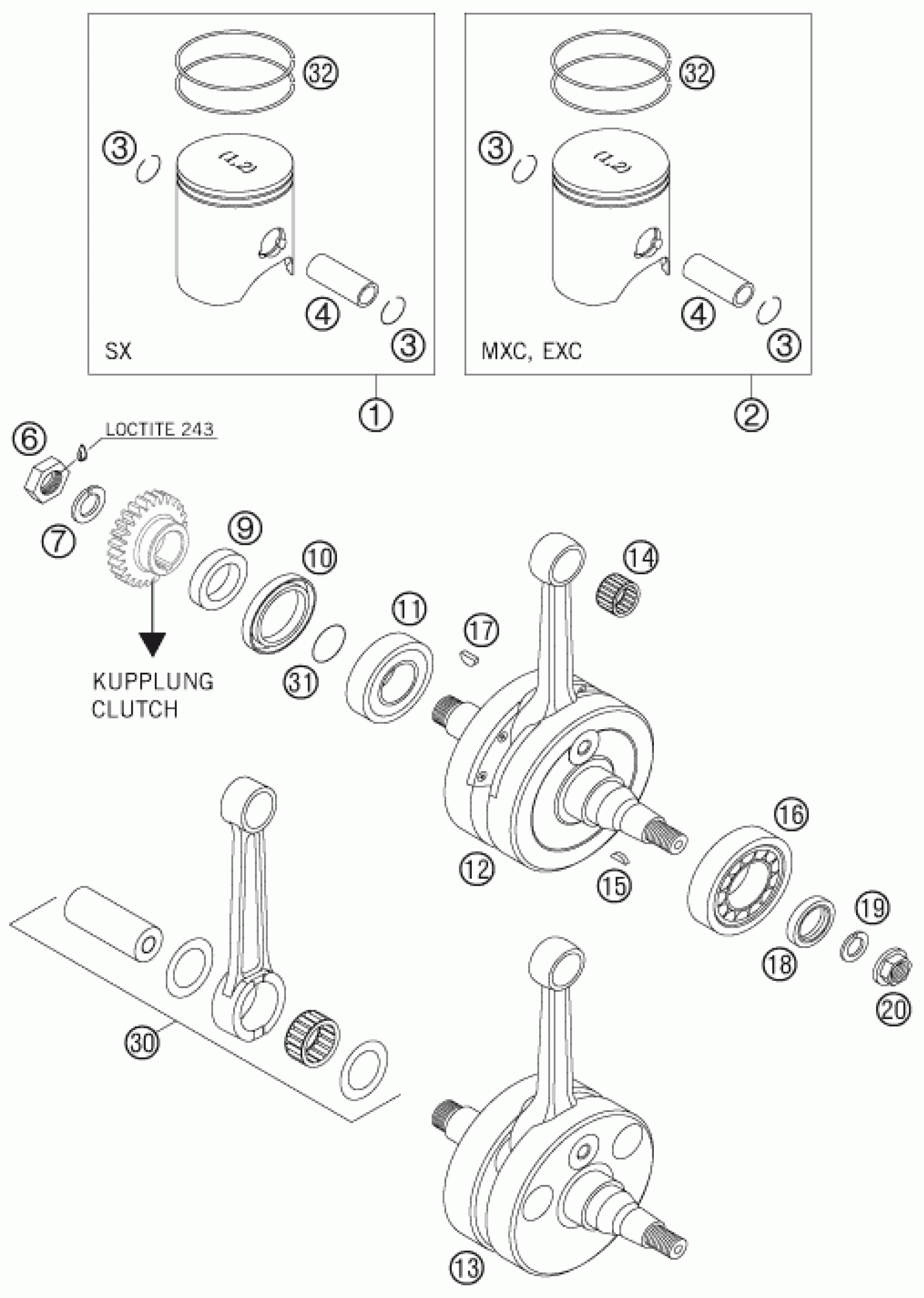

KTM 250 SX 2005 CRANKSHAFT, PISTON Diagram

PISTON I CPL.250SX VERTEX05

54830007100 I

$228.13

PISTON II CPL.250 SX VERTEX

54830007100 II

$228.13

WIRE LOCK RING C18X1,5

54030074000

$3.08

PISTON PIN 18X55,8 250 2000

54630233000

$17.17

HEX.NUT L/SH M18X1,5

54630029000

$10.65

LOCK WASHER VSK 18

58132072000

$2.05

SPACER SLEEVE 28X38X10 03

54830016000

$15.04

SHAFT SEAL RING 38X52X7BTSL

0760385273

$22.06

BALL BEARING 32X65X17 NTN

0625623204

$60.95

CRANKSHAFT 250 SX 05

54830018200

$936.77

NEEDLE BEARING KBK 18X22X20

54430034000

$20.94

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

CYLIND.ROL.BEAR. NJ207ET2XCS42

56530123200

$107.05

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

SHAFT SEAL RING 25X35X7 BTSL

0760253570

$16.79

LOCKING RING VSK 12

50230029012

$2.05

COLLAR NUT M12X1 R/S

49030021000

$2.05

CONROD REP. KIT 250/300

54830015044

$352.02

O-RING 25,00X1,50 NBR 70

0770250015

$1.49

SQUARE RING 66,4MM 250 2000

54630232000

$39.45
