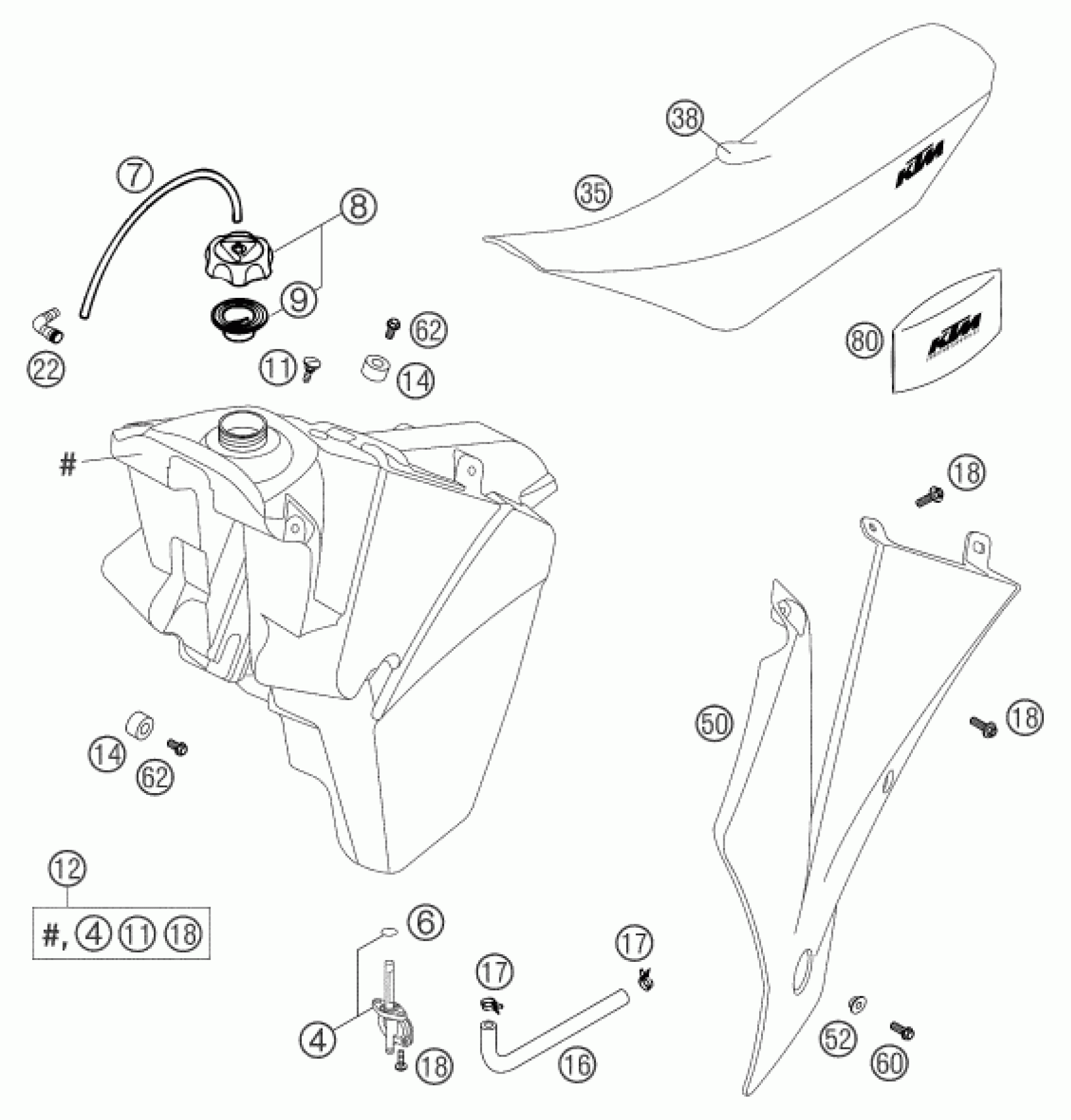

KTM 250 SX 2003 TANK, SEAT Diagram

#

Description
Price

4

GAS COCK MIKUNI ON/OFF 2001

50307005000

$96.39

6

O-RING 13,00X2,30

0770130023

$4.11

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

FILLER CAP CPL. WITH VALVE

59007008044

$24.58

9

GASKET FOR FILLER CAP HIGH

59007009000

$8.03

11

SCREW SEAT FASTENING D=6X23/18

50307011000

$3.08

12

FUEL TANK CPL. 7,5L ORANGE 03

5480711300004

$296.27

14

TANK ROLLER 12X26X12 '98

50307014000

$11.02

16

FUEL PREFORMED HOSE SX 2001

50307016000

$8.87

17

CLAMP YDNAC 10128 12MM

58031005000

$3.08

18

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

22

ANGLE PIECE 90 DEGREE M10X1

51030022000

$5.23

35

SEAT BLACK WITH KTM-LOGO 03

54807040000

$151.37

38

SEAT COVER BLACK 03

54807040050

$51.04

50

SPOILER L/S ORANGE SX 2001

5030815000004

$31.07

50

SPOILER R/S ORANGE SX 2001

5030815100004

$31.07

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

60

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

62

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

80

ORIGINAL EQUIPMENT TOOL KIT

50212100100

Unavailable
