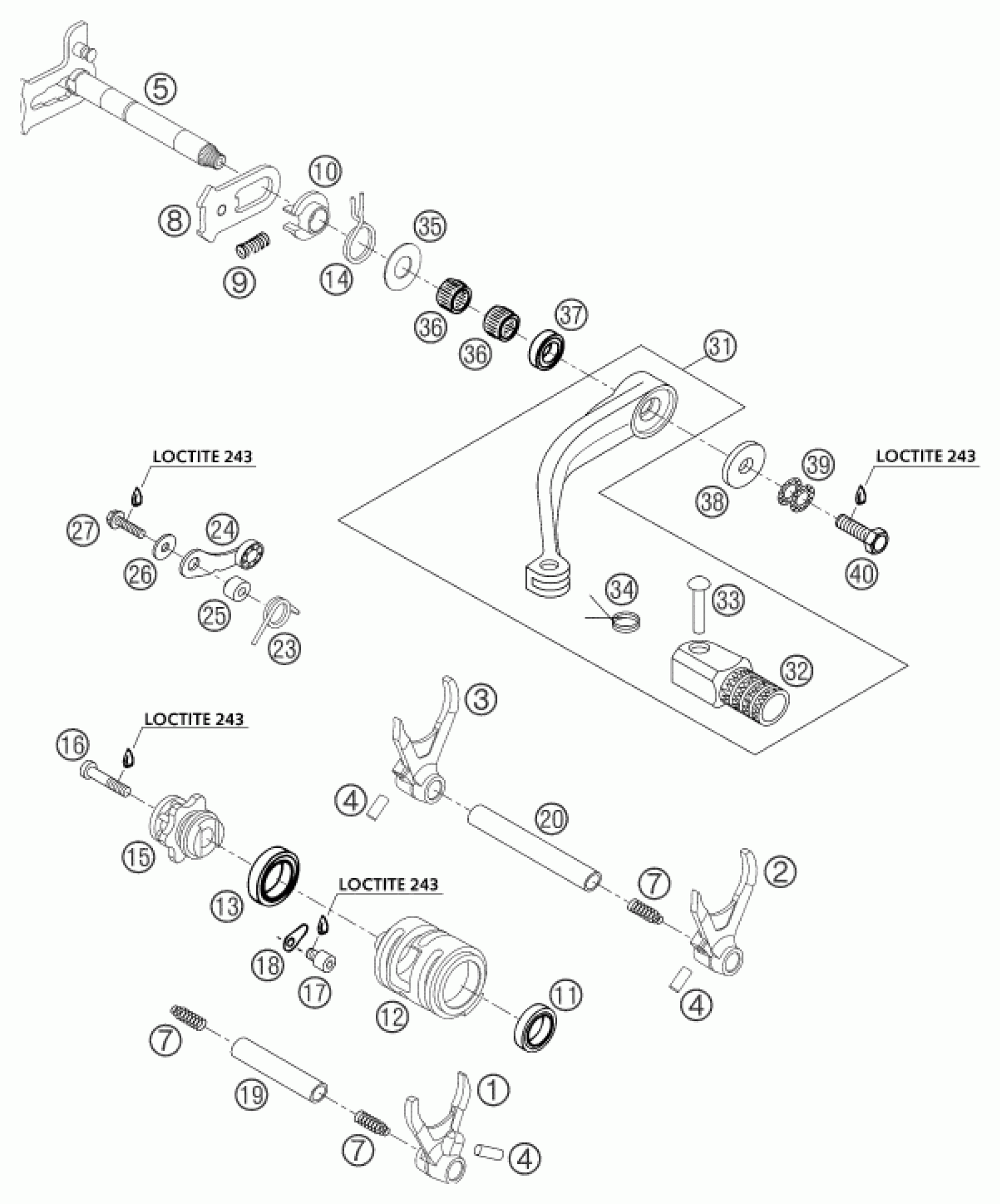

KTM 250 SX 2003 SHIFTING MECHANISM Diagram

SHIFTING FORK 4TH/5TH GEAR 03

54834001000

$79.93

SHIFTING FORK 2ND GEAR 03

54834002000

$78.72

SHIFTING FORK 1ST/3RD GEAR 03

54834003000

$79.93

NEEDLE ROLLER DIN5402 6X14,8

0402061480

$4.11

SHIFTING SHAFT

54834005000

Unavailable

PRESSURE SPRING 0,9MM

58038023200

$4.11

SLIDING PLATE CPL.

54634008044

$10.46

TENSIONING SPRING 0,8MM

56534013100

$1.49

SPRING GUIDE

54634020000

$6.44

BALL BEARING 6903 C4

0625069034

$20.37

SHIFT ROLLER 03

54834012000

$117.61

BALL BRG 6805 C4 NTN JAPAN

0625068050

$43.94

RETURN SPRING 03

54834014000

$4.11

SHIFT LOCATING DRUM 2003

54834015000

$48.05

AH SCREW DIN6912 M 6X30

0984060302

$1.49

AH collar screw DIN 912 M6x8

0912060083

$2.05

RETAINING PLATE

54634049000

$4.11

SHIFT. RAIL MAIN SHAFT 250/300

54834019000

$12.80

SHIFT. RAIL C. SHAFT 250/300

54834020000

$13.74

LOCKING LEVER SPRING 03

54834023000

$3.08

LOCATING LEVER CPL.125/200'98

50334024044

$14.58

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

WASHER DIN7349-5X15X2

0349000050

$1.49

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

SHIFT LEVER CPL. 2-STROKE

54634031044

$91.25

STEP PLATE FOR SHIFT LEVER 250

54634131000

$31.59

BOLT 6X25 FOR SHIFT LEVER

54634031050

$7.85

SHIFTING LEVER SPRING 250

54634032100

$3.08

STOP DISK 14X30X1

54634050000

$2.05

needle sleeve HK 1412 14x20x12

54632095000

$7.00

radial shaft seal 14x24x6 B

0760142460

$9.25

STEEL WASHER 6,4X17X3

50232050001

$5.23

Pair of washers M6 NORDLOCK

50233041000

$4.11

HH SCREW DIN0933-M 6X16 10.9

0933060165

$2.05
