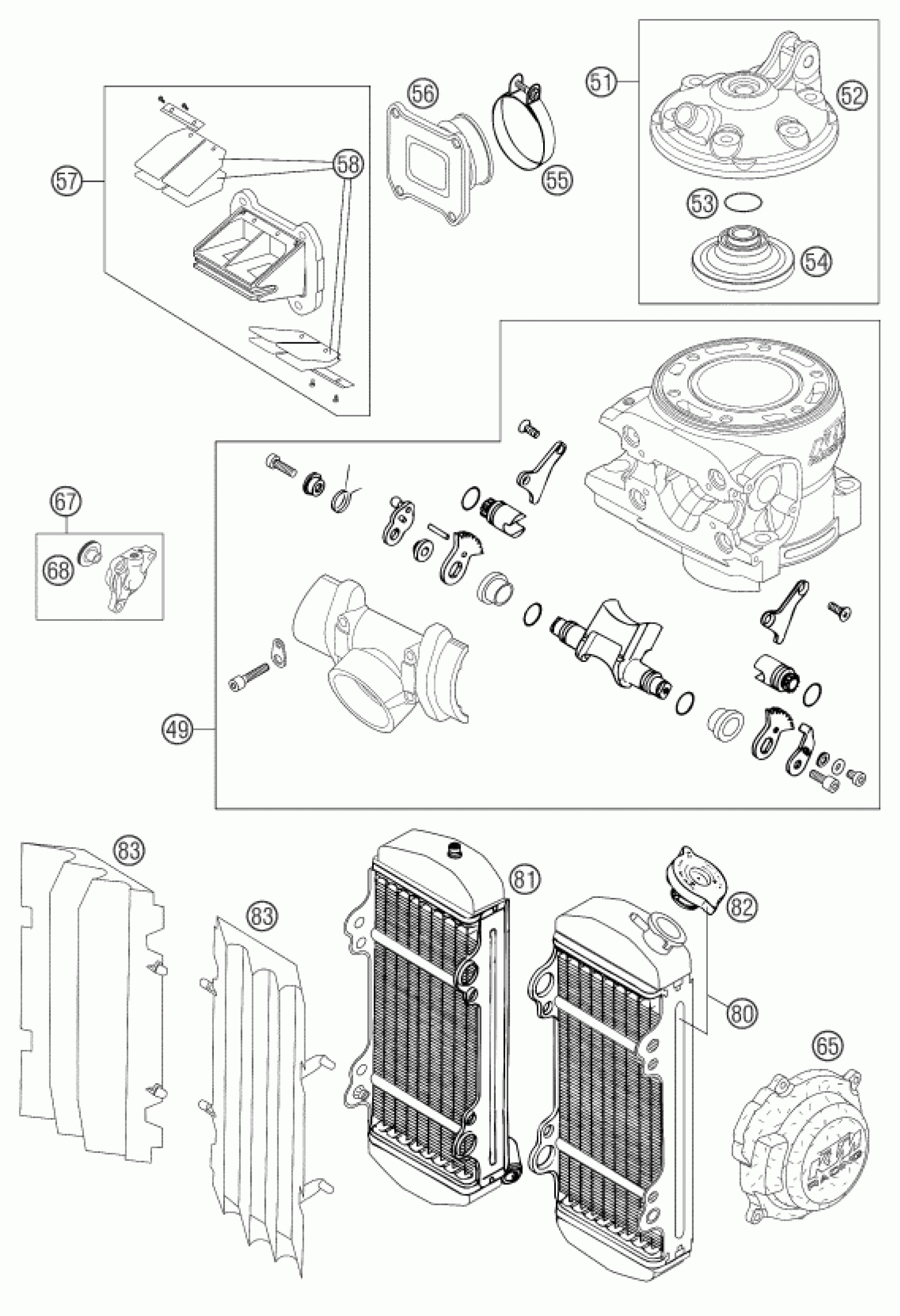

KTM 250 SX 2003 NEW PARTS Diagram

% CYLINDER CPL. 250 SXS

SXS03250001

Unavailable

CYLINDER HEAD KIT 250 SXS

SXS03250010

Unavailable

CYLINDER HEAD 250 SXS 03

SXS03250003

Unavailable

O-RING 22,00X2,5 VITON 75SH

0770220025

$5.23

COMB.-CHAMB.INSERT 1 (22,5) 03

SXS03250004

Unavailable

COMB.-CHAMB.INSERT 2 (21,9) 03

SXS03250005

Unavailable

COMB.-CHAMB.INSERT 3 (21,0) 03

SXS03250006

Unavailable

Hose clip GEMI 52mm

54330061000

$7.47

INTAKE FLANGE V-FORCE 04

54830050000

$43.10

REED VLV ASSY V-FORCE CPL.04

54830051144

$269.09

REED VALVE SET V-FORCE 250 04

54830052000

$85.22

%IGNITION COVER CARBON 250 03

SXS03250025

Unavailable

OUTPUT CYLINDER CPL. 27MM 03

59032061044

$240.75

PISTON + O-RING + BALL 27MM

59032066000

$240.75

FACTORY WIDE RADIATOR LEFT

SXS00125600

Unavailable

FACTORY WIDE RADIATOR RT

SXS00125601

Unavailable

RADIATOR CAP SMALL 20,3 PSI

58035016000

$25.70

RADIATIOR PROTECTION 03

59035040000

$8.03
