CYLINDER

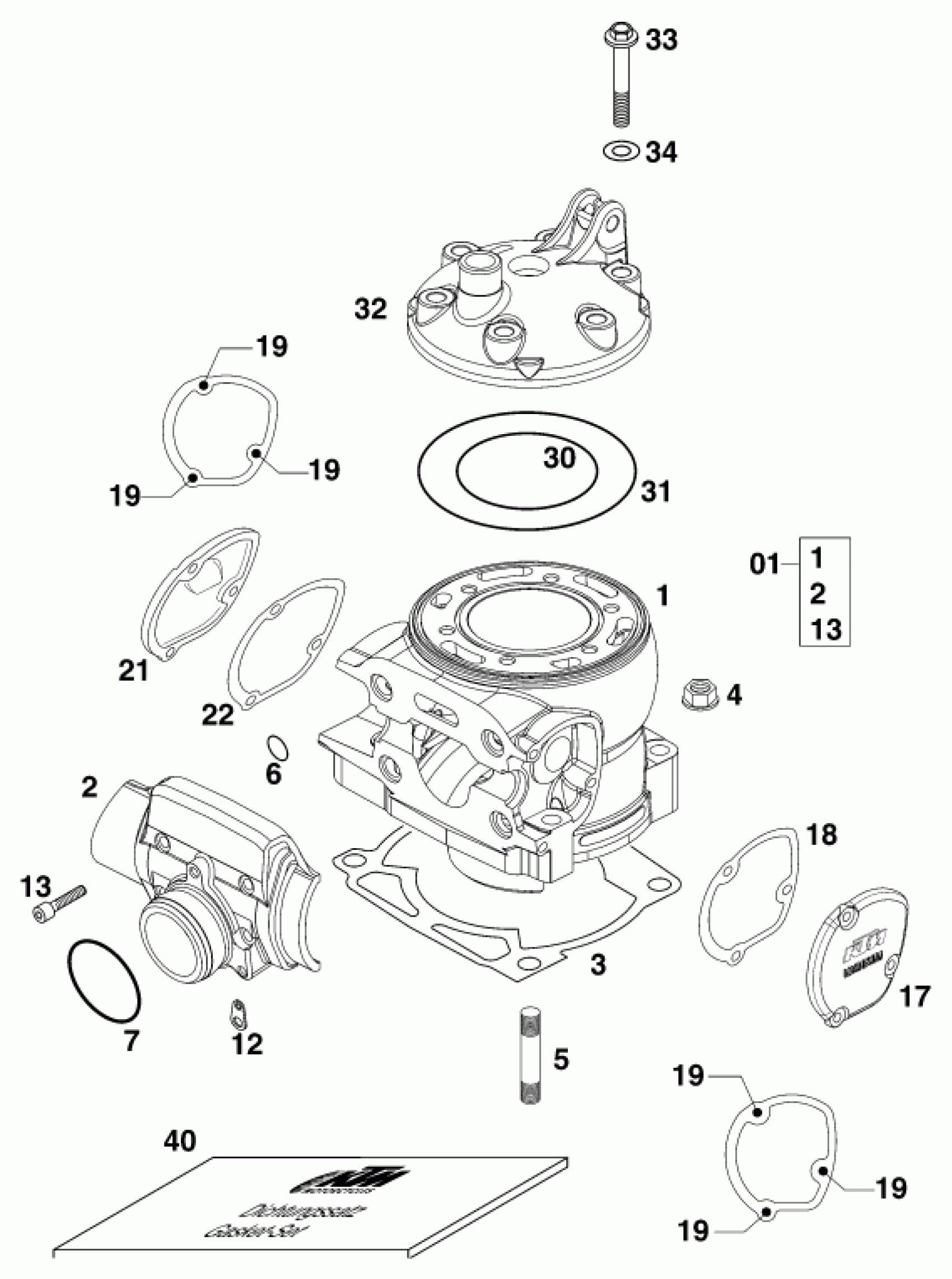

KTM 250 SX 2000 CYLINDER Diagram
#
Description
Price
1
% CYLINDER CPL.W.FLANGE 250'
54630205044
Unavailable
3
CYLINDER BASE GASKET 0,20MM'96
54630030102
Unavailable
3
CYLINDER BASE GASKET 0,40MM'98
54630030104
Unavailable
3
CYLINDER BASE GASKET 0,50MM'96
54630030105
Unavailable
3
CYLINDER BASE GASKET 0,75MM'96
54630030107
Unavailable
4
COLLAR NUT M10 WS=13
54630044000
$1.49
5
STUD DIN0835-M10X45
0835100456
$4.35
6
O-RING 11,3 X2,4 SILICON
0770116241
$3.08
7
O-RING 44,00X3,00 VITON
0770440030
$4.11
12
RETAINING PLATE
51005074000
$3.08
13
AH SCREW DIN0912-M 6X30
0912060303
$2.05
17
CONTROL COVER L/S 250'00
54737005000
Unavailable
18
GASKET FOR CONTROL COVER L/S
54737006000
$5.23
19
AH SCREW DIN0912-M 5X12
0912050123
$2.05
21
CONTROL COVER R/S 250'
54737007000
Unavailable
22
GASKET FOR CONTROL COVER R/S
54737008000
$5.23
30
0-RING 74,00X2,00 SILICONE
0770740021
$5.32
31
O-RING 114,00X2,00 SILICONE
0770114020
$7.56
32
54630206000
Unavailable
33
HH COLLAR SCREW M 8X44 WS13
56530079000
$3.08
34
CU-SEAL RING 8 X 16 X 1
56530080000
$2.05
40
GASKET SET CYLINDER '96-'01
54630097000
$81.64
