MAIN SILENCER

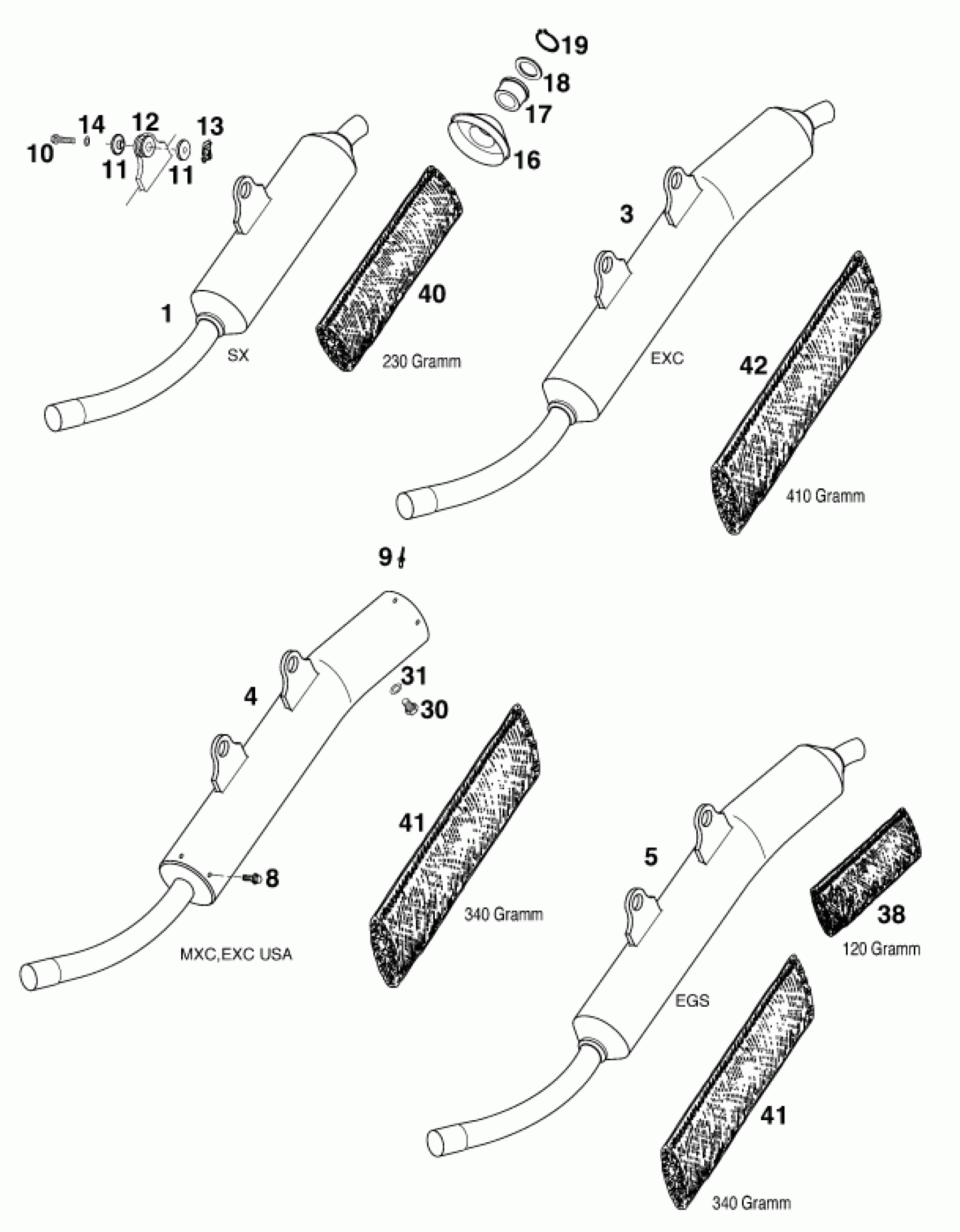

KTM 250 MXC '99 <1999 MAIN SILENCER Diagram
#
Description
Price
1
* EXHAUST SILENCER 250 SX '98
54605079600
Unavailable
3
EX.SILENCER 200/250/300 EXC'98
52305081000
Unavailable
4
52305082000
Unavailable
5
% EX.SILENCER 200/250/300 EGS
52305083000
Unavailable
8
SPECIAL SCREW M 5,0X10
0009050103
$2.05
9
RIVET 4,8X10,3 ALU
0011481030
$3.08
10
HH COLLAR SCREW M 6X30 SW=8
0015060303
$3.08
11
BUSHING 7,5X12X28X7,8 '96
54605069000
$6.07
12
EXHAUST BRACKET RUBBER BLACK
54605068000
$6.54
13
clip nut M6
54603048100
$4.11
14
SPRING WASHER DIN0137-B 6
0137060000
Unavailable
16
% SILENCER CAP PLASTIC
54605379549
$9.11
16
SILENCER END CAP ALU
54705179070
Unavailable
17
SEAL RING VITON D=28MM
54605379028
$28.89
18
WASHER D=28 MM
54605079047
$4.35
19
CIRCLIP DIN0471-28X1,5
0471280151
$5.57
30
PLUG DIN0910-M 10X1
0910100003
$4.11
31
CU-SEAL RING DIN7603-10X14X1
58038032010
Unavailable
38
STUFFING YARN 120 GRAM
58005078120
$39.75
40
STUFFING YARN LOOSE 300 GRAMM
58005079056
$97.80
41
STUFFING YARN 340 GRAM
58005078340
$71.62
42
STUFFING YARN 410 GRAMM
58005078410
Unavailable
