FRONT FORK, TRIPLE CLAMP

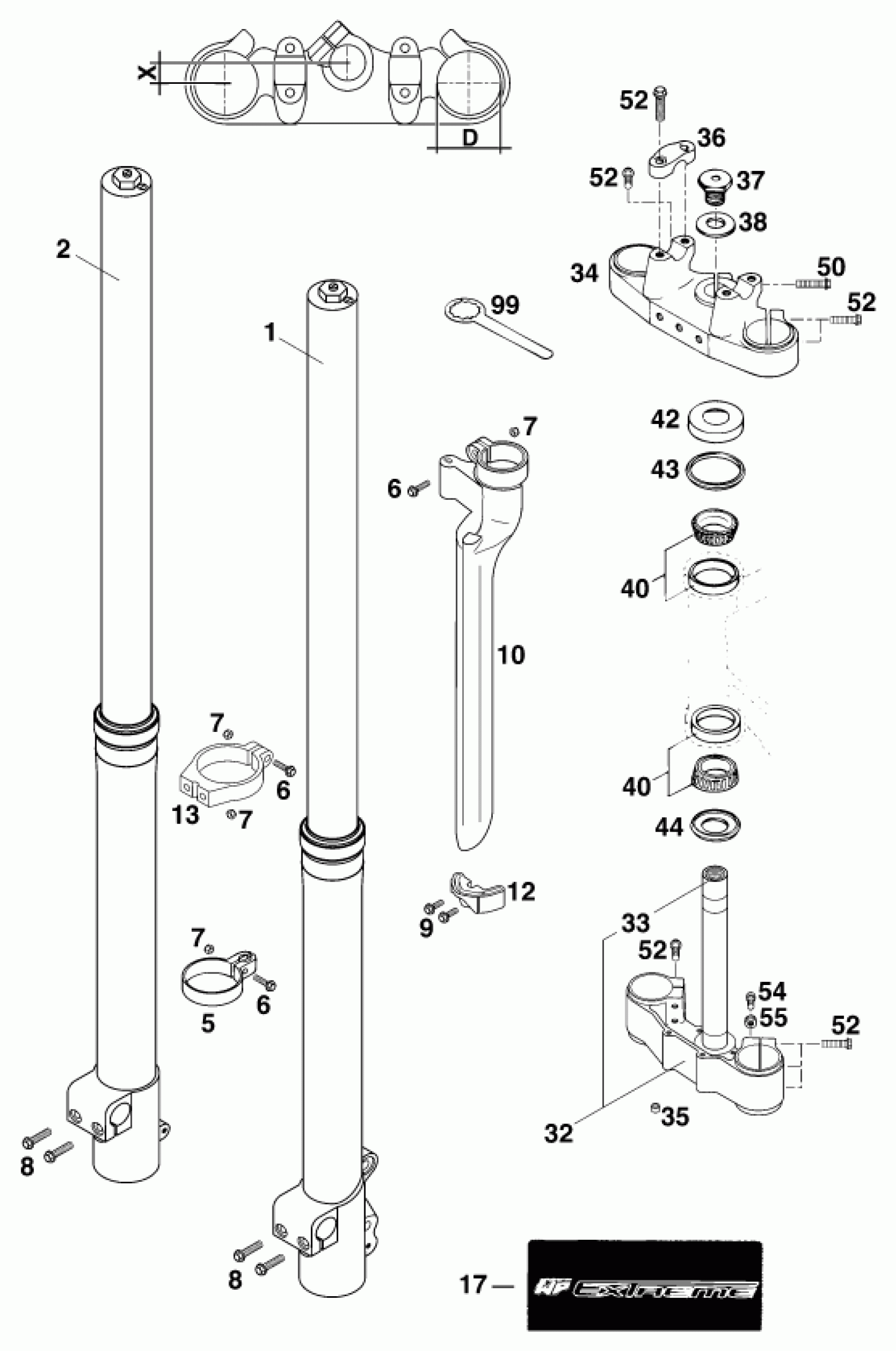

KTM 250 MXC '99 <1999 FRONT FORK, TRIPLE CLAMP Diagram
#
Description
Price
0
FORK PROTECTOR R/S BLACK '97
50301093000
$10.03
0
FORK PROTECTION GUIDE R/S '97
5460139000030
$3.44
1
FORK LEG L/S 250/380 SX '99
0918T768LS
Unavailable
1
FORK LEG L/S 250-380 EXC '99
0918T769LS
Unavailable
2
FORK LEG R/S 250/380 SX '99
0918T768RS
Unavailable
2
FORK LEG R/S 250-380 EXC '99
0918T769RS
Unavailable
5
SP.CABLE GUIDE MARZ.50,WP50'97
50301070000
$2.86
6
HH COLLAR SCREW M 5X20 WS=8
0015050203
$2.05
7
Self locking nut DIN 985 M5
0985050003
$2.05
8
HH COLLAR SCREW M 8X25 WS=10
0015080253
$2.05
9
HH COLLAR SCREW M 5X16 WS=8
0015050163
$2.05
10
FORK PROTECTOR L/S BLACK '97
50301092000
$10.03
12
FORK PROTECTION GUIDE L/S '97
5460129000030
$3.44
13
CLAMP PROTECTOR GUIDE '98
50301090250
$6.39
17
DECAL ''WP EXTREME''
50308093000
$16.70
32
BOTTOM TRIPLE CLAMP14MM/D=50MM
50301032014
$180.85
33
FORK TUBE L=244 '91
50101033100
$85.17
34
TOP TRIPLE CLAMP X=14MM/D=50MM
50301034014
$91.54
35
SPACER BUSHING 6X10X5
50301089000
$2.05
36
HANDLEBAR CLAMP '
54601038000
Unavailable
37
HH SCREW M20X1,5
56401043000
$19.86
38
WASHER 21X38X3
56401044000
$5.00
40
TAPERED ROLLER BEARING CPL.
54201081000
$51.04
42
STEERING HEAD COVER
54201086000
$8.50
43
STEARING HEAD GASKET TOP
54601184000
$7.10
44
O-RING SUPPORT W. SEALING LIP
54601084100
$19.35
50
HH COLLAR SCREW M 8X40 WS=10
0015080403
$4.11
52
HH COLLAR SCREW M 8X30 WS=10
0015080303
$3.08
54
SPECIAL SCREW M8X21 WS=13
50301037000
$4.43
55
Hexagon nut DIN934 M8
0934080003
$2.05
99
RING WRENCH WS=32
54212035000
Unavailable
