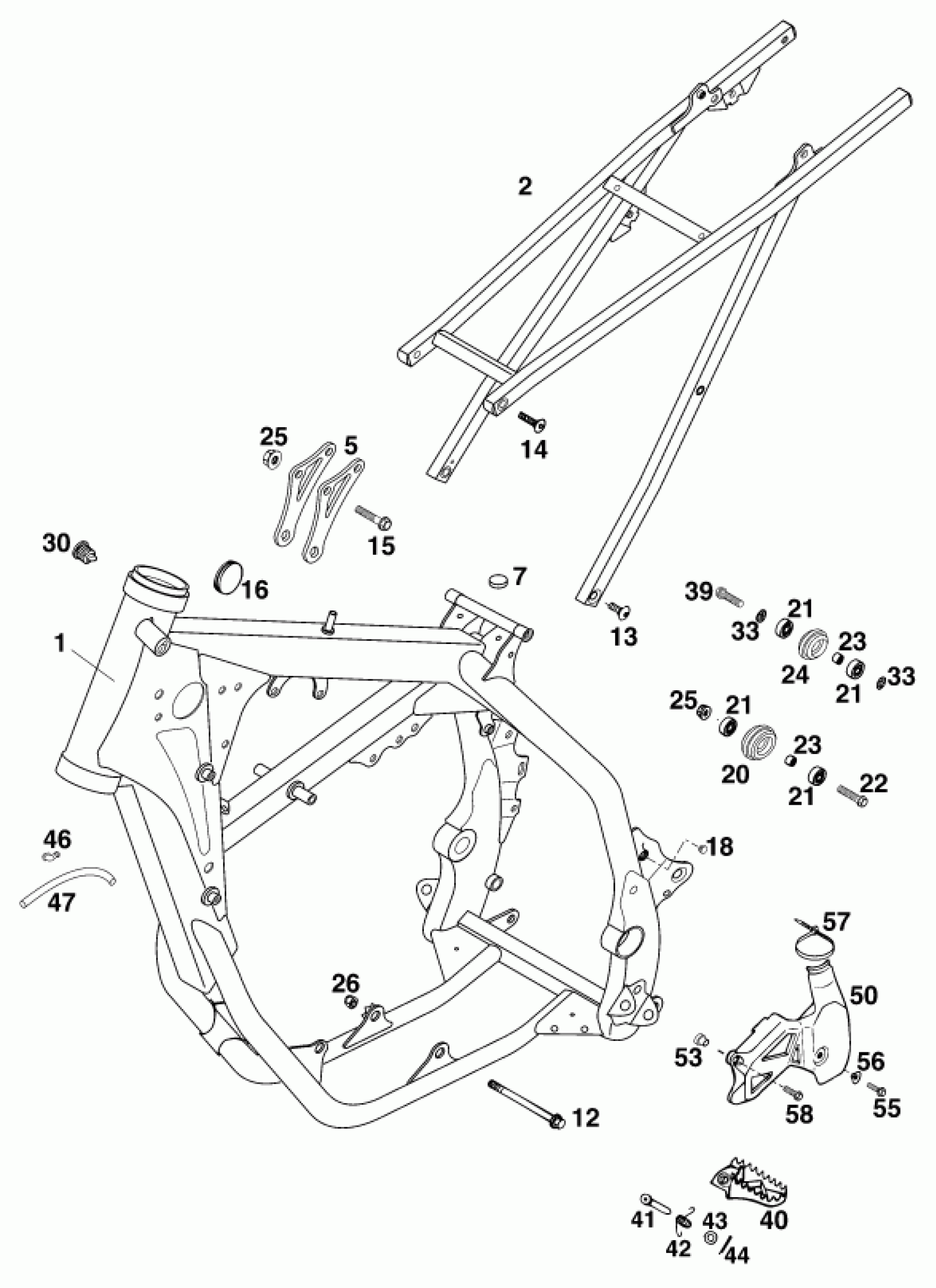

KTM 250 MXC '99 <1999> FRAME Diagram

#

Description
Price

0

FOOT PED R/S SILVER '98

5460314010090

$39.03

1

* FRAME KOK SX,MXC,EXC USA '98

54703001000

Unavailable

1

FRAME SEM 250-380 EXC,EGS'98

54703001200

Unavailable

2

% S.FRAME CPL.ALU 125-380 '

50303002000

Unavailable

5

REINFORCING BRACKET 250-380'98

54703013000

$14.52

7

RUBBER BUFFER FOR TANK '98

50307020000

$4.11

12

engine brac.scr. M10x105 WS13

54603013000

$12.15

13

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

14

SPROCKET SCREW-AH M 8X26

54510052000

Unavailable

15

HH COLLAR SCREW M 8X44 WS13

56530079000

$3.08

16

PLUG 37MM

54606004000

$2.05

18

PLASTIC CAP SFL10

54403135000

$2.05

20

CHAIN ROLL D=35MM 125-380 '99

52303053100

$5.54

21

Grooved ball bearing 608 2RS C

0625006087

$21.40

22

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

23

BUSHING 8.2 X 12 X 6

74003021000

$3.08

24

CHAIN ROLL D=30MM 125-380 '99

52303053000

$6.91

25

54310086000

Unavailable

26

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

30

PLASTIC CAP

42007049000

$1.49

33

LOCK WASHER 8MM

36003014000

$2.05

39

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

40

FOOT PED L/S SILVER '98

5460304010090

$34.15

41

BOLT FOR FOOTREST 9,8 X 50

54603044000

$12.43

42

FOOTREST SPRING L/S & R/S

54603041000

$5.23

43

washer DIN 125 A 10.5

0125100003

$2.05

44

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

46

ANGLE PIECE '97

50303089000

$5.23

47

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

50

SPROCKET COVER

54607061000

$13.94

53

COLLAR BUSHING 6,4X8X12X15,5

54703092050

$2.32

55

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

56

COLLAR BUSHING 5 X 10 X 6 ALU

54603073000

$1.96

57

Cable tie 200/4.6mm black

44011076200

$1.49

58

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08
