REAR WHEEL

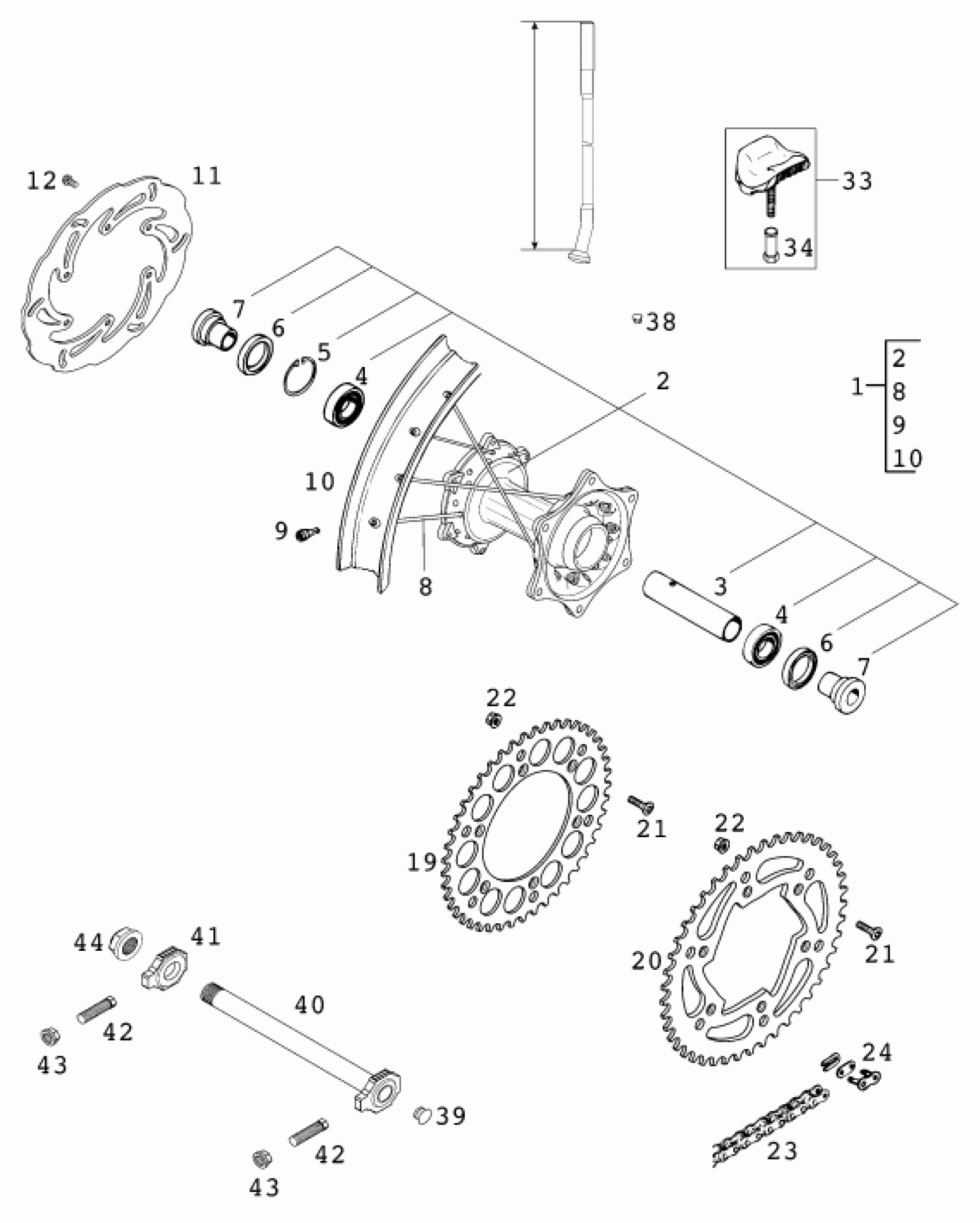

KTM 250 MXC 2000 REAR WHEEL Diagram
#
1
R.WHEEL CPL.2.15X19''EXCEL '00
50310001144
$461.17
1
REARWHEEL CPL.2.15X18''DID 200
50310001244
$504.47
2
REARWHEEL HUB CPL.125-380 '00
50310010044
$313.68
3
BUSHING SPACER TUBE 121,5 MM
56510011000
Unavailable
4
Grooved ball bear.6005 DDU2CG2
0625060058
$18.32
5
CIRCLIP DIN0472-47X1,75
0472047175
$3.08
6
Radial shaft seal 32X47X7 BSL
0760324771
$13.36
7
BUSHING FOR HUB
54610016000
$32.90
8
SPOKE M5X197-10G 18'' DDE
50310071197
$4.11
8
SPOKE M5X207-10G 19'' DDE
50310071207
$5.23
9
SPOKE NIPPLE M5-TA (8X21MM)
58309072000
$2.05
10
REAR RIM 2,15X19'' EXCEL AL4
54610070100
$252.81
10
REAR RIM 2,15X18'' DID
54610070300
$198.44
11
BRAKE DISC REAR D=220MM 2000
50310060000
$135.01
12
HH COLLAR SCREW M 6X12 WS=8
0015060123
$3.08
19
REAR SPROCKET 38-T
58310051038
Unavailable
19
REAR SPROCKET 42-T
58310051042
Unavailable
19
REAR SPROCKET 40-T
58310151040
Unavailable
19
REAR SPROCKET 45-T
58310151045
Unavailable
20
REAR SPROCKET 48-T
58310151048
$50.58
20
REAR SPROCKET 50-T
58310151050
$56.00
20
REAR SPROCKET 52-T
58310151052
$50.58
21
SPROCKET SCREW-AH M8X26 WS=6
54510052100
$3.08
22
Self locking nut M8 10.9
54310086200
$3.08
23
50010065000
Unavailable
23
* CHAIN /M 5/8X1/4" PER METRE
50010065001
Unavailable
23
50010065100
Unavailable
23
X-R.CHAIN 5/8X1/4''/M W.LINK
50010065101
Unavailable
24
MASTER LINK 5/8X1/4''
50010066000
Unavailable
24
MASTER LINK 5/8X1/4'' X-RING
50010066100
$13.27
33
RIM LOCK VM3 (2.15'')
54010100100
$20.56
34
NUT FOR WHEEL HOLDER '96
50310090050
$5.23
38
PLUG FOR RIM
55003135000
Unavailable
39
Plug SFL16
50210086000
$3.08
40
WH. SPINDLE RE. CPL.265MM 00
50310085044
$78.91
41
Chain tension adjuster, right
50310084000
$20.66
42
SPEC. SCREW M10X1,25X40 WS=10
50304040000
$5.23
43
HH COLLAR NUT M10X1,25 WS=13
58414030000
$2.05
44
Hexagon nut M20x1.5
50310099000
$11.30
