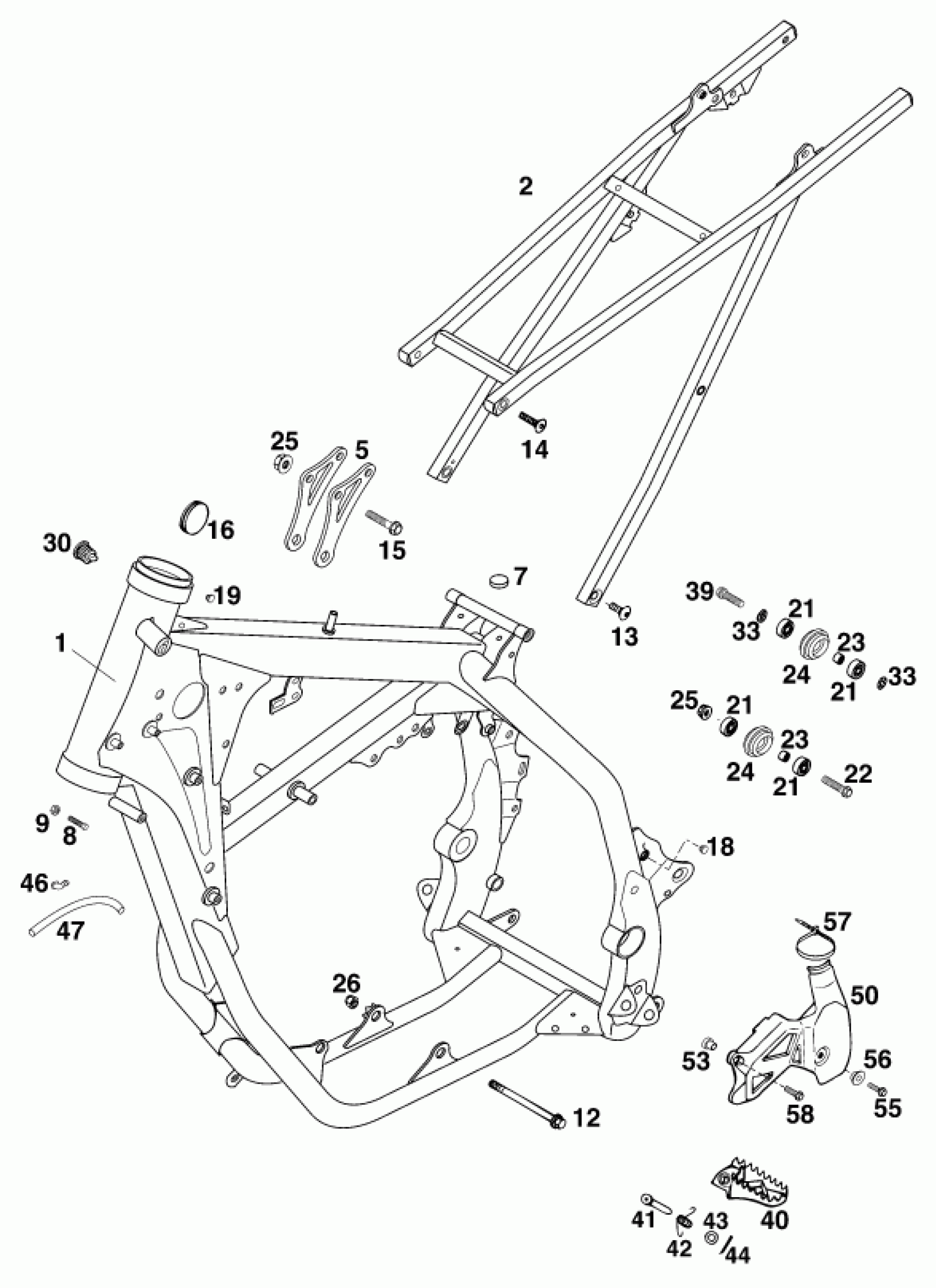

KTM 250 MXC 2000 FRAME Diagram
#
0
FOOT PED R/S EXC SILVER 2000
59003041050
$42.72
0
FOOT PED R/S SX SILVER 20
59003041150
Unavailable
1
FRAME 250-380 MXC/EXC USA '00
54703001300
Unavailable
1
% FRAME 250-380 EXC EU (F0) 00
54703001400
$607.80
2
% S.FRAME CPL.ALU 125-380 '
50303002000
Unavailable
5
REINFORCING BRACKET 250-380'98
54703013000
$14.52
5
REINFORC.BRACKET 4MM 250'2000
54703013100
$10.78
7
RUBBER BUFFER FOR TANK '98
50307020000
$4.11
8
SPECIAL SCREW M8X26 WS=10
59001037000
$3.08
9
Hexagon nut DIN934 M8
0934080003
$2.05
12
engine brac.scr. M10x105 WS13
54603013000
$12.15
13
SPROCKET SCREW-AH M8X20 WS=6
54610052000
$2.05
14
SPROCKET SCREW-AH M 8X26
54510052000
Unavailable
15
HH COLLAR SCREW M 8X44 WS13
56530079000
$3.08
16
PLUG 37MM
54606004000
$2.05
18
PLASTIC CAP SFL10
54403135000
$2.05
19
PLUG
36111021000
$1.49
21
Grooved ball bearing 608 2RS C
0625006087
$21.40
22
HH COLLAR SCREW M 8X35 WS=10
0015080353
$4.11
23
BUSHING 8.2 X 12 X 6
74003021000
$3.08
24
CHAIN ROLL D=30MM 125-380 '99
52303053000
$6.91
25
54310086000
Unavailable
26
SELF LOCKING NUT M10 CU WS=14
54310086100
$2.05
30
PLASTIC CAP
42007049000
$1.49
33
LOCK WASHER 8MM
36003014000
$2.05
39
HH COLLAR SCREW M 8X30 WS=10
0015080303
$3.08
40
FOOT PED L/S EXC SILVER 00
59003040050
$43.84
40
FOOT PED L/S SX SILVER 20
59003040150
Unavailable
41
BOLT FOR FOOTREST 9,8 X 50
54603044000
$12.43
42
FOOTREST SPRING L/S & R/S
54603041000
$5.23
43
washer DIN 125 A 10.5
0125100003
$2.05
44
PIN DIN0094-3,2X25 STEEL
0094032253
$1.49
46
ANGLE PIECE '97
50303089000
$5.23
47
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
50
SPROCKET COVER
54607061000
$13.94
53
COLLAR BUSHING 6,4X8X12X15,5
54703092050
$2.32
55
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
56
BUSH FOR SPOILER 6X11X16X7,5
50308053000
$5.70
57
Cable tie 200/4.6mm black
44011076200
$1.49
58
HH COLLAR SCREW M 6X25 WS=8
0015060253
$3.08
