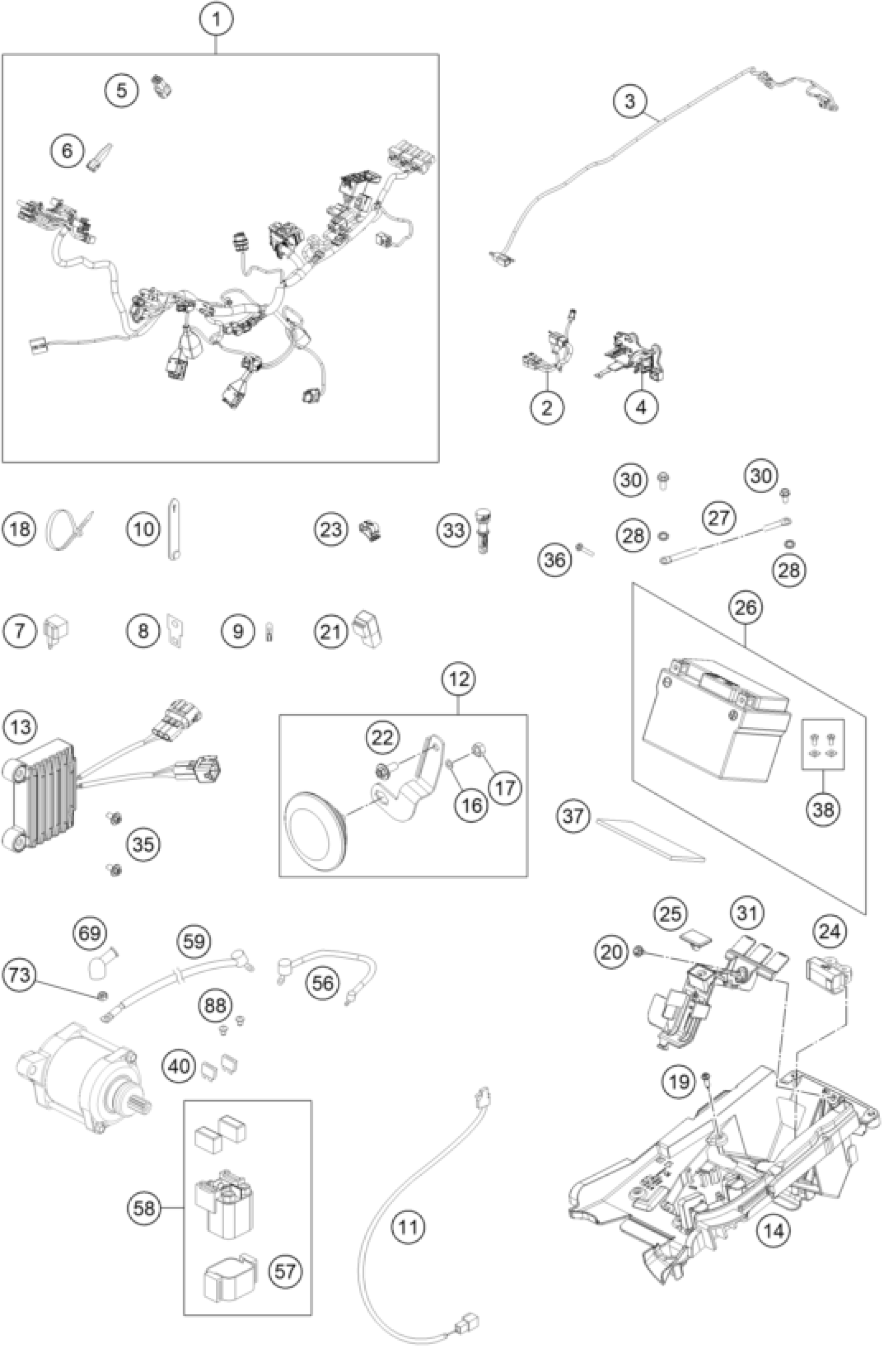

KTM 250 EXC TPI 2020 WIRING HARNESS Diagram

main harness

55711075000

Unavailable

Flasher harness front

72111080000

$63.10

flasher harness rear

79711081000

$23.93

DUMMY PLUG 6-PIN

000700000BH01

$17.66

Endconnector Can-Bus 2017

000700000AL001

$20.00

FLASHER UNIT

76511030000

$23.18

BRACKET FOR FLASHER RELAY

58211031100

$5.70

BULB 12V 2,3W (W2X4,6D)

49111425200

$2.05

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

BRAKE LIGHT SWITCH FRONT 2014

77711050000

$52.91

Horn, cmpl.

79711060033

$32.44

VOLTAGE REGULATOR

79611034000

$192.32

battery box

55711055000

$29.16

WASHER DIN0125-A 5,3

0125050003

$1.49

HEXAGON NUT DIN0934-M 5

0934050003

$2.05

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

Cable tie 200/4.6mm black

44011076200

Unavailable

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

Line guide

83013026000

$3.08

battery 12V/24Wh

79111053000

$166.05

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

HH collar screw M5x12 TX30

0025050126

$3.08

battery support

79711056000

$8.50

COLLAR SCREW M6X12 TX

0023060123

$2.05

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

METAMOLL 90X45X3MM 03

59003001099

$2.05

Plug-in fuse, big 20A

58011109120

$1.49

Batteriekabel

25111059050

$20.66

BRACKET RUBBER F.STARTRELAY 07

58211058050

$5.23

Starter reley 12V 99

58211058000

$72.64

Starter cable

55711059000

$28.04

Protection cap for starter eng

77240099000

$6.35

Self lock. nut DIN985-M6-A2

0985060003

$2.05

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

HH collar screw M6x15 TX30

0024060156

$3.08

Connector support

79711083000

$14.87

Holder control unit

55641030000

$3.08

ROLLOVER SENSOR 05

61041088000

$67.69

Isolation pad

77307040041

$2.05

screw kit

79111053010

$4.11
